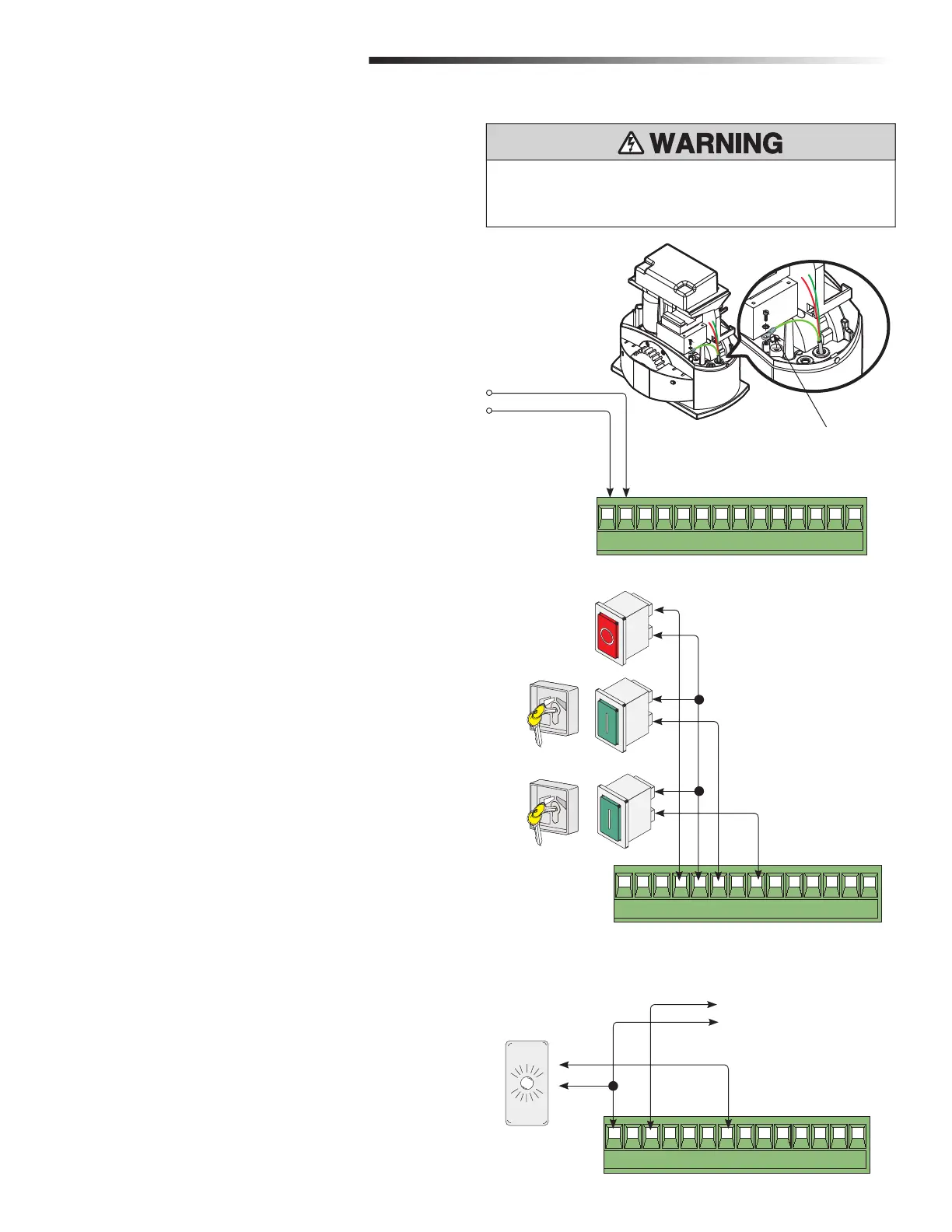

ACCESSORY POWER + COMMAND AND CONTROL DEVICES +
WARNING DEVICES
OPTIONAL WIRING
ACCESSORY POWER
Command devices and accessories are 24V power. The overall power for accessories
CANNOT exceed 1.5 Amps.
Terminals 10 and 11 provide power for the following accessories:
24 Vac normally
COMMAND AND CONTROL DEVICES
Stop button (N.C. contact)
Cancels automatic closing (A.C.T.). To resume normal operation, press the
command button or the remote control button. To disable this function set the
number 8 functionality switch to ON.
Key selector and/or partial opening button (N.O. contact)
Partial gate opening
Key selector and/or command button (N.O. contact)
Gate opening and closing command.
By pressing the button or turning the key, the gate reverses direction or stops
depending on the functionality switch settings.
WARNING DEVICES
Open-gate indicator light
Signals that gate is open; turns off when the gate is closed.
Contact power: 24V A.C. - 25W maximum
Socket rating 24V-3W maximum
NOTE: If the operator detects an obstacle in the same direction twice while running,
the electronic card activates the warning device and blocks the signal from the
remote control for 5 minutes. After 5 minutes, the alarm is deactivated and the
signal for the remote controls are restored and the PROG LED goes off. To restore
normal operation prior to the 5 minutes, press the total stop key and the PROG LED
goes off.
  % 0 # # # #
43
+
-
Cable lug with bolt and washer to secure to ground
  % 0 # # # #
43
  % 0 # # # #
43
Warning Device (Siren)
To protect against fire and electrocution:
DISCONNECT power BEFORE installing or servicing operator.
