19
WIRE THE ENTRAPMENT PROTECTION DEVICES
WIRING
WIRE THE ENTRAPMENT PROTECTION
DEVICES

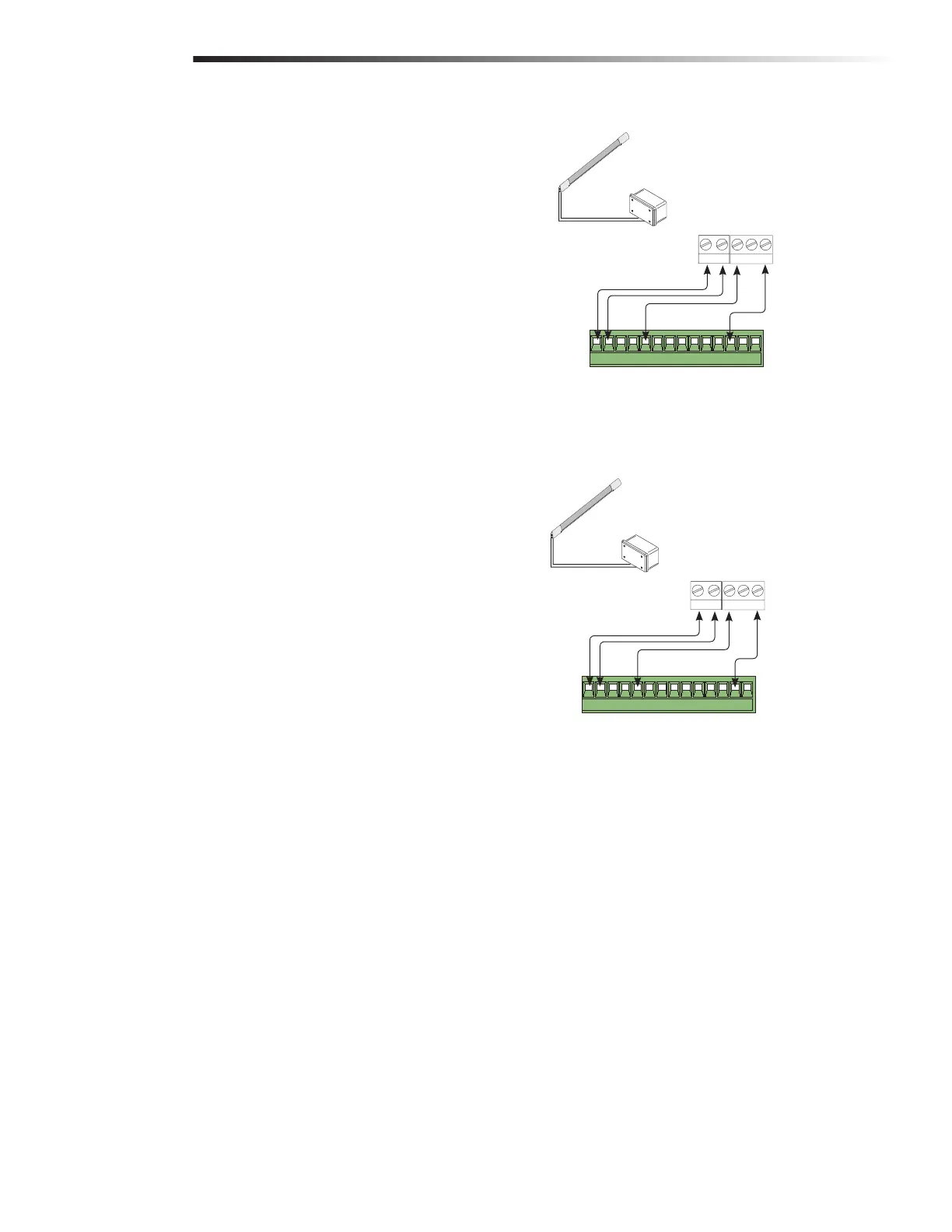

EDGE SENSORS (CONTACT)
“OPEN WHILE CLOSING” (N.C.) Contact
This input functions to reverse the gate to the open limit when activated during the
close cycle.
NOTE: If not used, short circuit contact 2-C7.
“CLOSE WHILE OPENING” (N.C.) Contact
This input functions to reverse the gate to the close limit when the edge is activated
during the opening cycle.
NOTE: If not used, short circuit contact 2-C8.
CNONC
%
0
#
#
#
#
43
Two-wire normally open edge
Connect power to the operator.
Wireless Communicator
Transmitter
24V C
PWR Relay
Receiver
CNONC
%
0
#
#
#
#
43
Two-wire normally open edge
Wireless Communicator
Transmitter
24V C
PWR Relay
Receiver
To Next Page
