12
INSTALLATION
INSTALL THE OPERATOR (MODEL BX243C ONLY)
INSTALL THE OPERATOR (MODEL BX243C
ONLY)
1

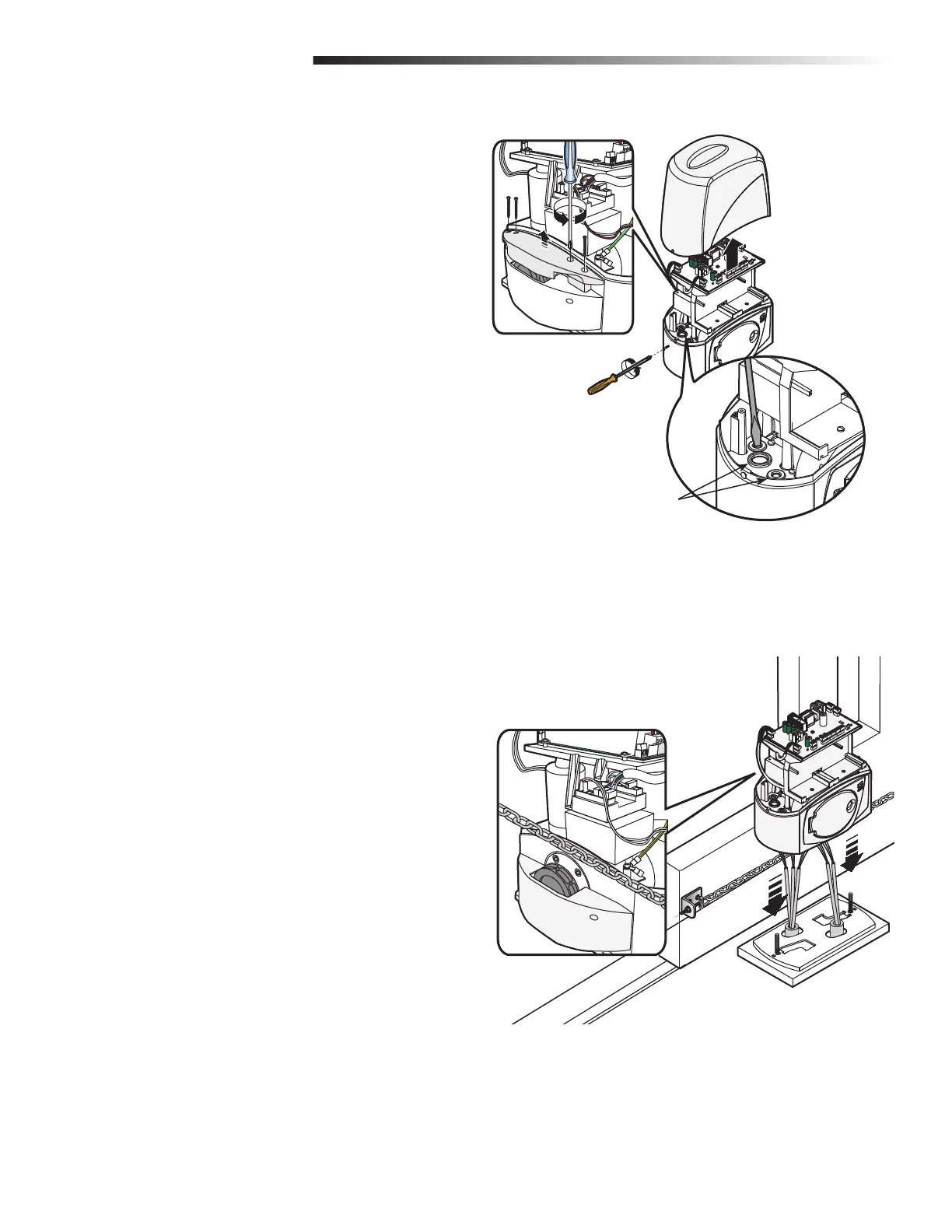

Remove the two screws on the side of operator and remove the cover.
2
Insert the rubber plugs into the holes in the bottom of the operator. Use a
screwdriver or a pair of scissors to puncture the rubber plug to allow the wires
to be threaded through (Figure 1A).
3
Remove the four screws that secure the pulley cover to the operator
(Figure 1B).
4
Run the electrical wires through the conduit, allow at least 15-3/4 inches
(400 mm) to protrude (Figure 2A).
5
Position the operator over the mounting plate and pull electrical wires through
the rubber plugs. Lower operator on to the mounting plate. Align the pulley
with the chain (Figure 2B).
Rubber Plugs
FIGURE 1B
FIGURE 2A
FIGURE 1A
FIGURE 2B
