❶
M6 x 20
M6
❷
300÷ 600
20÷30
V122
Page 11 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

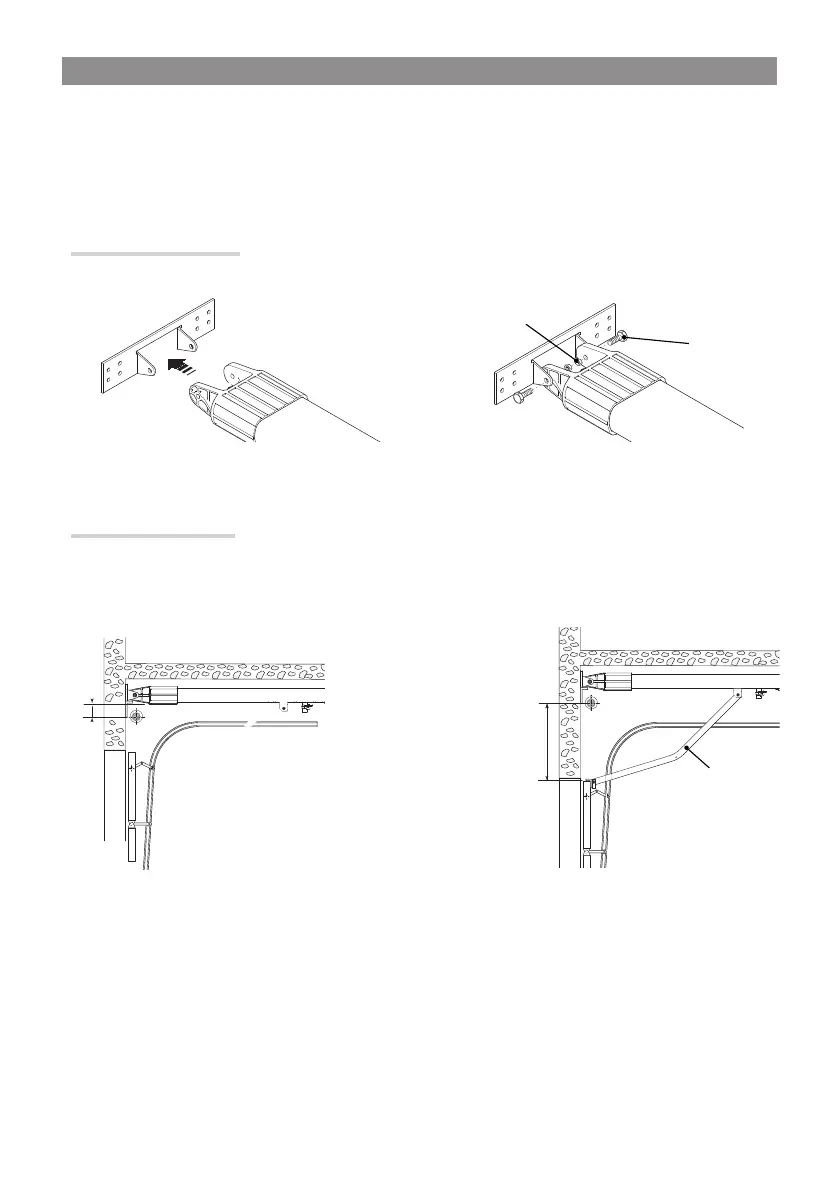

Positioning the guide
Sectional doors: above the spring-pole brace assembly. If the distance between the spring-pole and the upper part
of the door is between 300 mm and 600 mm, use the V122 transmission arm.
INSTALLATION
⚠
Only skilled, qualifi ed sta must install this product.
⚠
The following illustrations are mere examples in that the space for fastening the operator and accessories
varies depending on the installation area. It is up to the fi tter, therefore, to choose the most suitable solution.
Assembling the guide
Page 11 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions
