CAME VER-PLUS Series - Dimensions and Parts Identification

420
210
140
38
295
3020 ÷ 4020
❶
❷
❸
❹
❺
❼
❻
❽
❾
⓭
❿
⓬
⓫
❽
⓮
Page 6 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

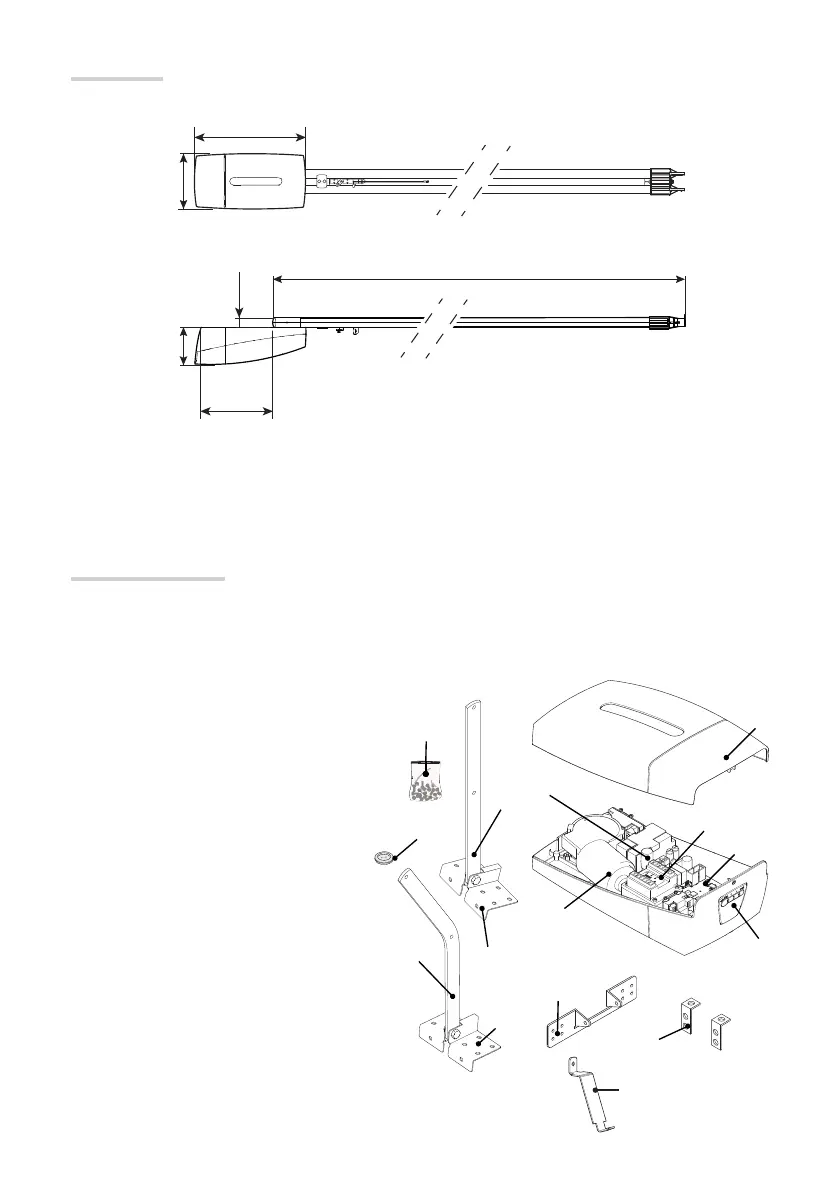

Description of parts
Operator
1. Cover
2. Gear motor
3. Transformer
4. Control board
5. Operator confi guration buttons
6. Standard drive arm for the VER10DMS*
7. Standard drive arm for the VER13DMS*
8. Door fastening brace
9. Guide fastening brace
10. Ceiling fastening brackets
11. Cable gland
12. Fastening screws
13. Cover fastening hinge
14. Courtesy light
☞ (*) Only for sectional doors.
Dimensions
Page 6 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions
