Fastening the cover

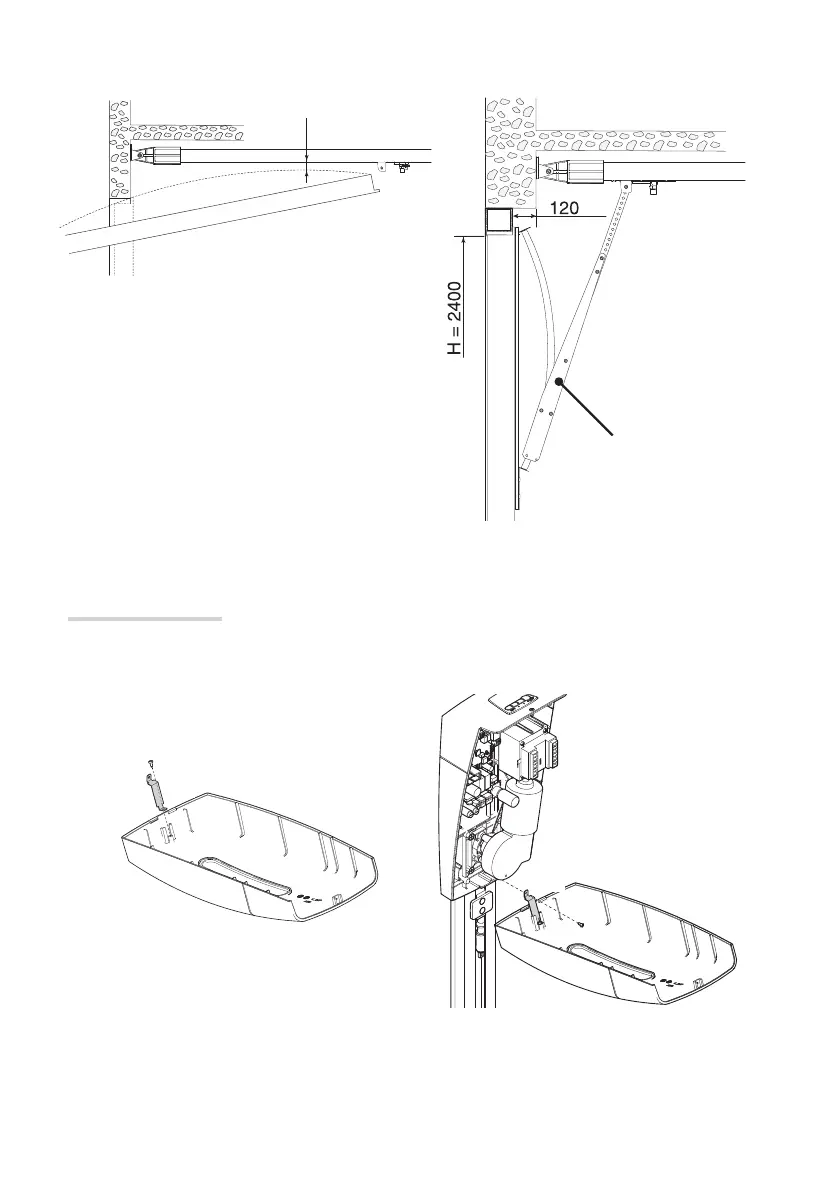

Fasten the hinge to the cover by using the supplied screws ❶. Fit the cover onto the operator ❷.
☞
For protracting, partially retracting overhead doors, use the V201 transmission arm (optional accessory).
For protracting overhead doors, keep the guide 20 mm from the opening high-point.
