RIOCN8WS
RIOPH8WSRIOED8WS RIOLX8WS
P
RSE
UTP CAT 5
A B GND
1 2 3 4
1
2
3
4
Page 21 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
⚠
Before plugging in the card YOU MUST CUT OFF THE MAINS POWER SUPPLY and, remove any batteries.
Using the RSE card excludes the local connection with CAME KEY.

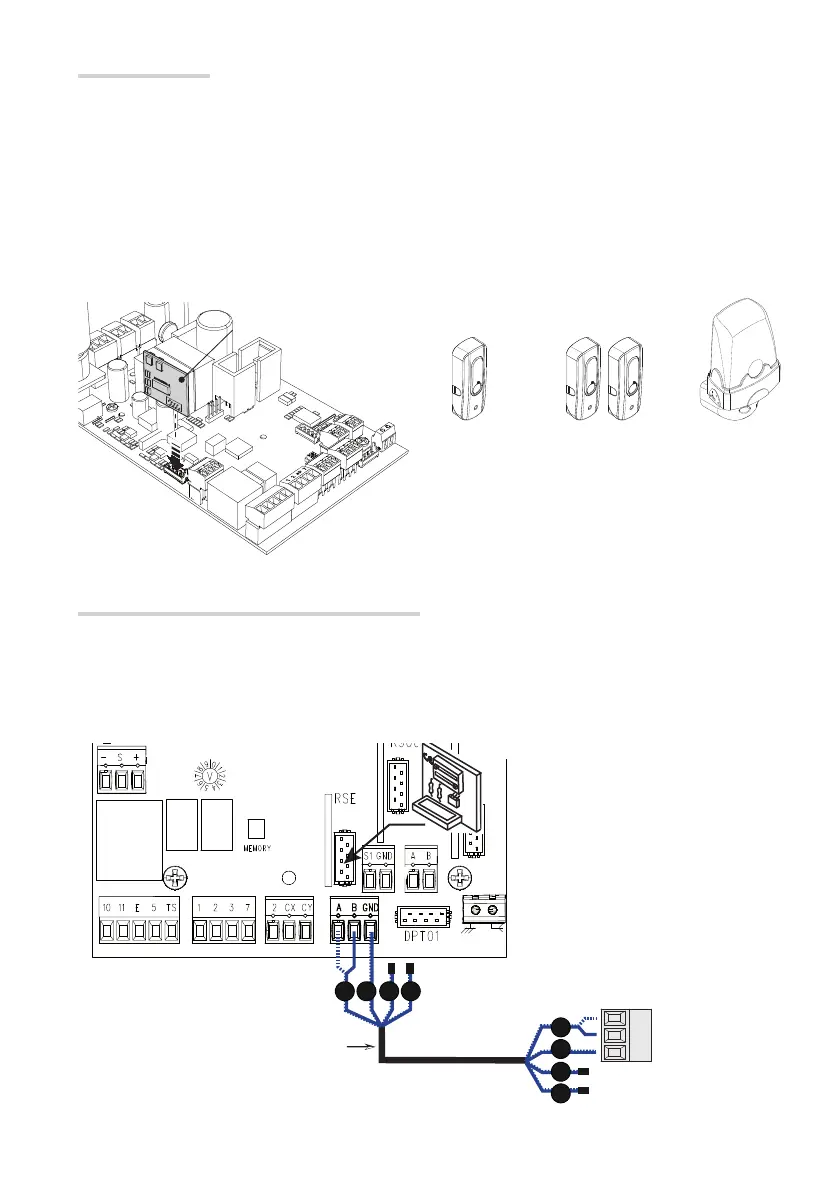

Fit the RSE card.
Linking up with Came Remote Protocol(CRP)
Wireless devices
⚠
Before plugging in the card YOU MUST CUT OFF THE MAINS POWER SUPPLY and, remove any batteries.
Plug the RIOCN8WS card into its corresponding connector on the control board. Set up the function that you
are going to associate to the wireless device ( F65, F66, F67 e F68). Confi gure the RIOED8WS, RIOPH8WS and
RIOLX8WS wireless devices. Follow the instructions detailed in the installation and accessories' manuals.
If the devices are not confi gured with the RIOCN8WS card, the display will read out E18.
⚠
If there are any radio-frequency issues, the system's wireless system will inhibit the operator's normal operating
mode, and the display will read out the E17 error wording.
