Chain drive
001V0679 Chain guide L = 3.02 m.
Counter-balanced overhead doors up to 2.4 m in height
- Counter-balanced overhead doors up to 2.25 m in height
- Sectional* doors up to 2.20 m in height.
001V0682 Chain drive L = 3.52 m.
- Counter-balanced overhead doors up to 2.75 m in height.
- Sectional* doors up to 2.70 m in height.
001V0683 Chain drive L = 4.02 m in one piece.
- Spring-balanced overhead doors up to 3.25 m in height.
- Sectional* doors up to 3.20 m in height.
001V0684 Chain drive L = 3.02 m in two pieces.
Counter-balanced overhead doors up to 2.4 m in height
- Counter-balanced overhead doors up to 2.25 m in height
- Sectional* doors up to 2.20 m in height.
Belt drive
001V0685 Belt drive L = 3.02 m.
Counter-balanced overhead doors up to 2.4 m in height
- Counter-balanced overhead doors up to 2.25 m in height
- Sectional* doors up to 2.20 m in height.
001V0686 Belt drive L = 3.52 m.
- Counter-balanced overhead doors up to 2.75 m in height.
- Sectional* doors up to 2.70 m in height.
001V0687 Chain guide L = 3.02 in two pieces.
Counter-balanced overhead doors up to 2.4 m in height
- Counter-balanced overhead doors up to 2.25 m in height
- Sectional* doors up to 2.20 m in height.
001V0688 Belt drive L = 4.02 m.
- Spring-balanced overhead doors up to 3.25 m in height
- Sectional* doors up to 3.20 m in height.
☞
(*) For sectional doors, see the paragraph on APPLICATION EXAMPLES

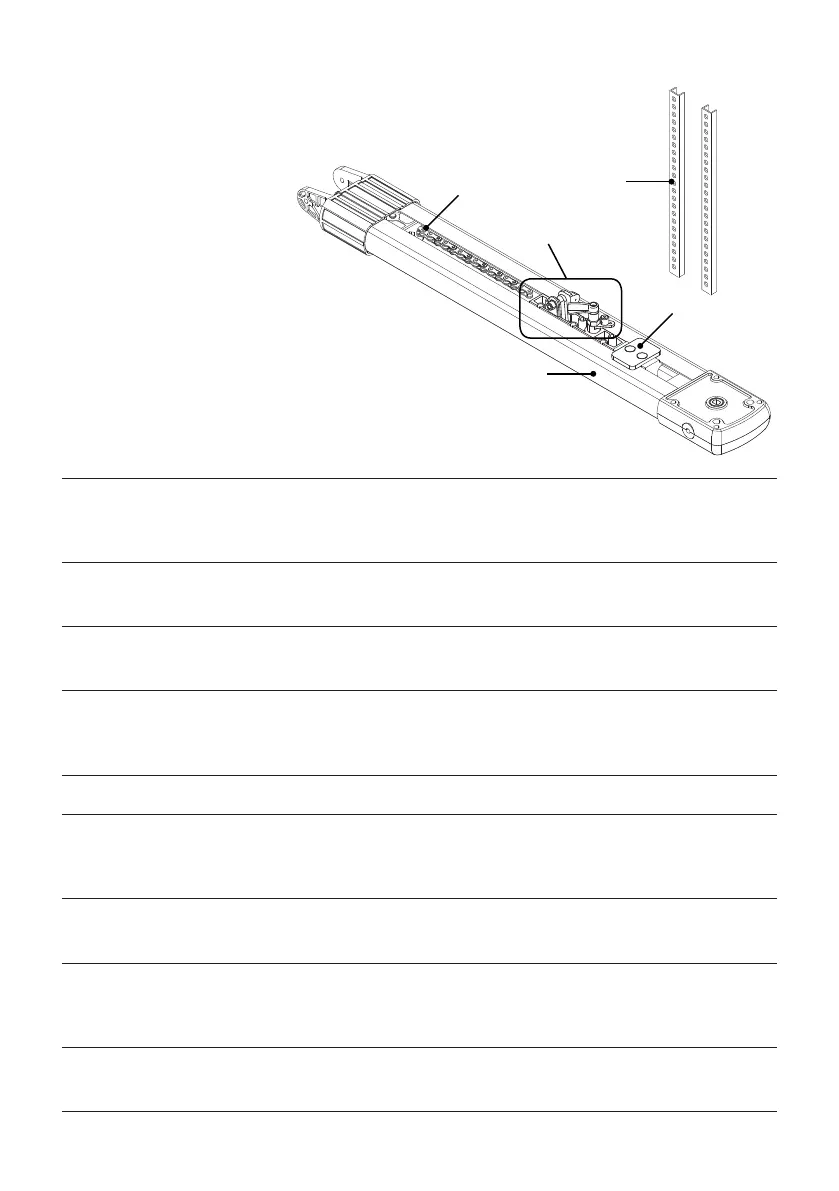

Guide
1. Guide
2. Chain or belt
3. Sliding guide with release tab
4. Mechanical stop
5. Support rods
Page 7 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions
