CAME VER-PLUS Series - Input Voltage; Factory Wiring; Signaling Devices

-
+
-
+
M
Page 17 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
 Absorption by all accessories: max. 40 W.
Door open warning output
(Contact rated for: open LED 24 V AC/DC - 3 W max.).
See function F10.
Connection output for fl ashing or cycle light
(Contact rated for: 24 V AC/DC - 25 W).
See function F18.

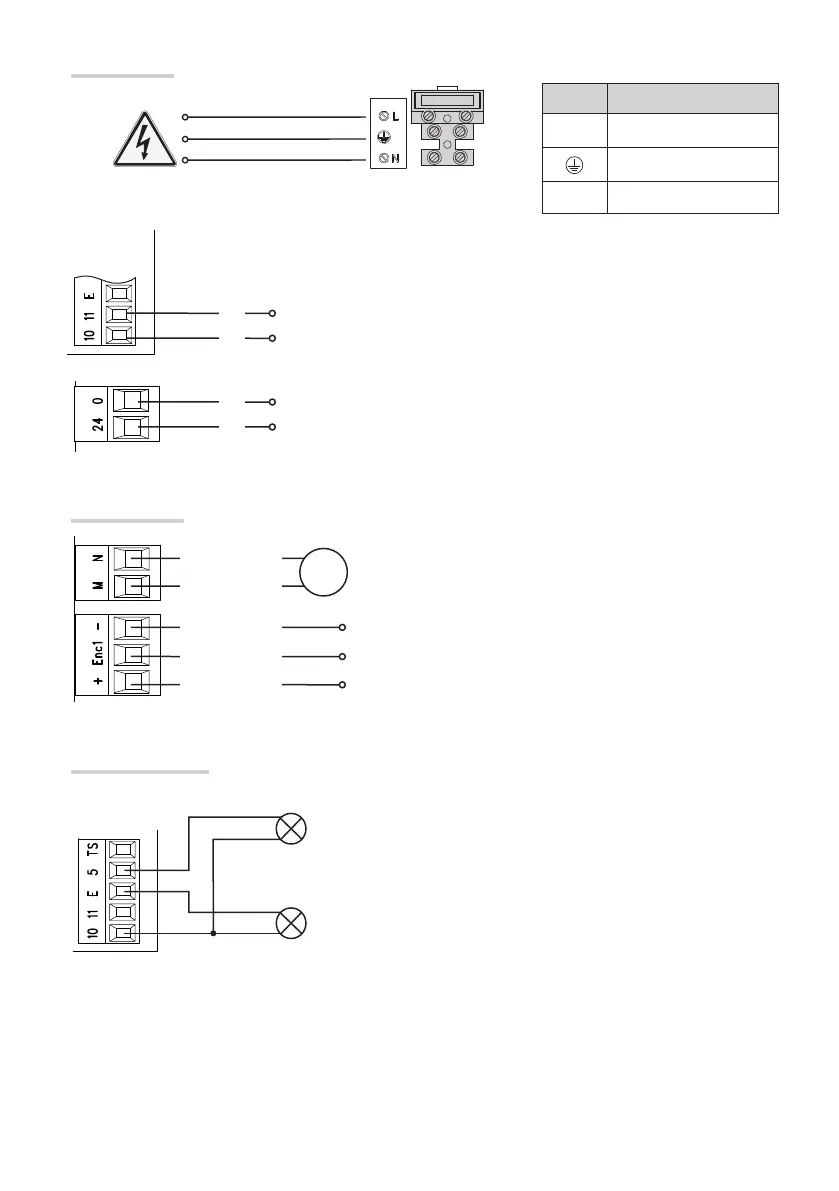

Signaling devices
Ref. Description
Ⓛ
HD Analog
Ground
Ⓝ
Neutral
Accessories power supply output 24 V AC/DC, max 20 W
24 V AC/DC control board power-supply input
230 V AC - 50/60 Hz
Input voltage
Green
Red
Encoder
Factory wiring
Green
Brown
White
24 V DC gearmotor
