CAME VER-PLUS Series - Gate-Swing Calibration

3
a
❶
1
❷
❹
I p o
❺
°
°
°
°
°°
I L C
❸
Page 30 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
The door will open until it presses and rests against the mechanical stop ❹.
Wait a few seconds to allow the calibration, appearing on the display, to register ❺.
Sliding guide
Mechanical stop
Place the opening mechanical stop against the sliding guide and fasten it.

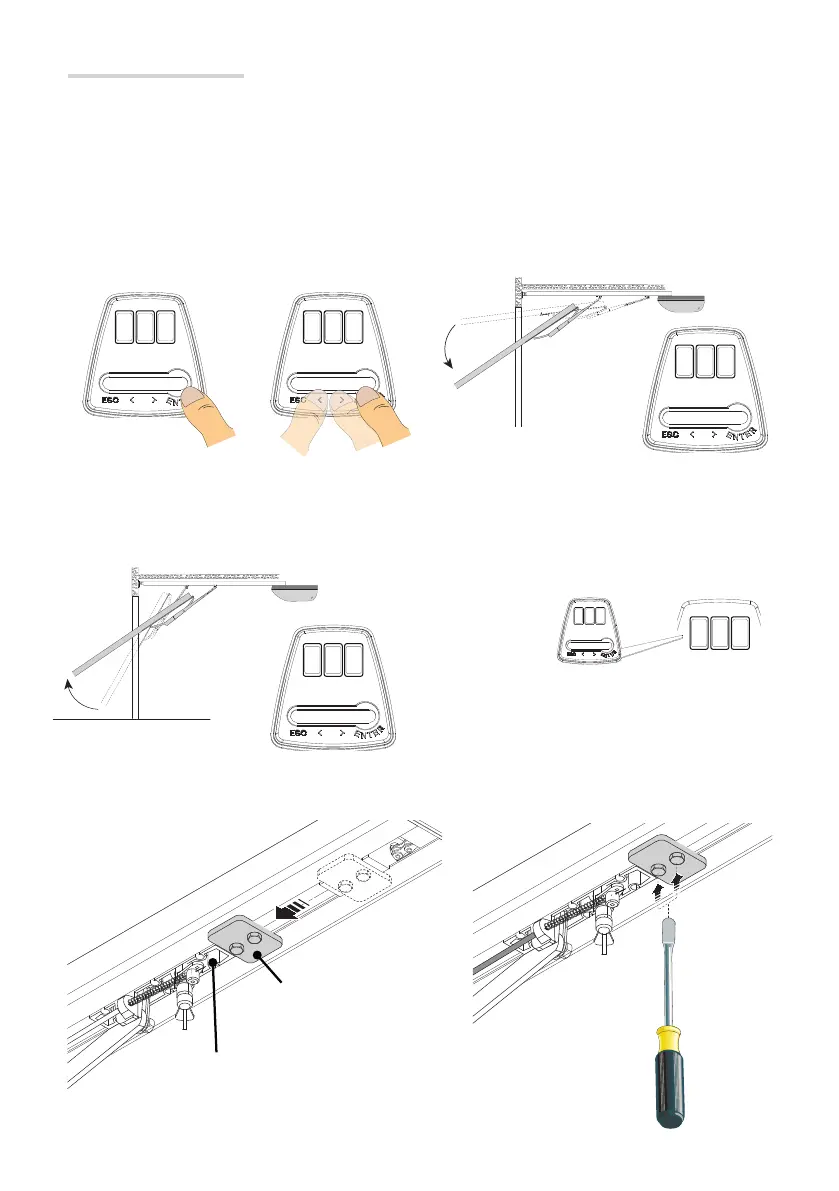

Gate-swing calibration
N.B.: before calibrating the travel, check that the maneuvering area is free of any obstructions.
Important! During the calibration, all safety devices will be disabled except for the PARTIAL STOP one.
Select A3. Press ENTER to confi rm ❶.
Select 1 and press ENTER to confi rm ❷.
The door will close completely ❸.
