TX 2
TX 2
10 2 TX C
+
-
NC
-
+
-
P
DIR
TX 2
+-
+ - NO C NC
P
DELTA-S
RX
TX
DELTA
RX
TX
P
P
DFW
DFI DFW
Page 20 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

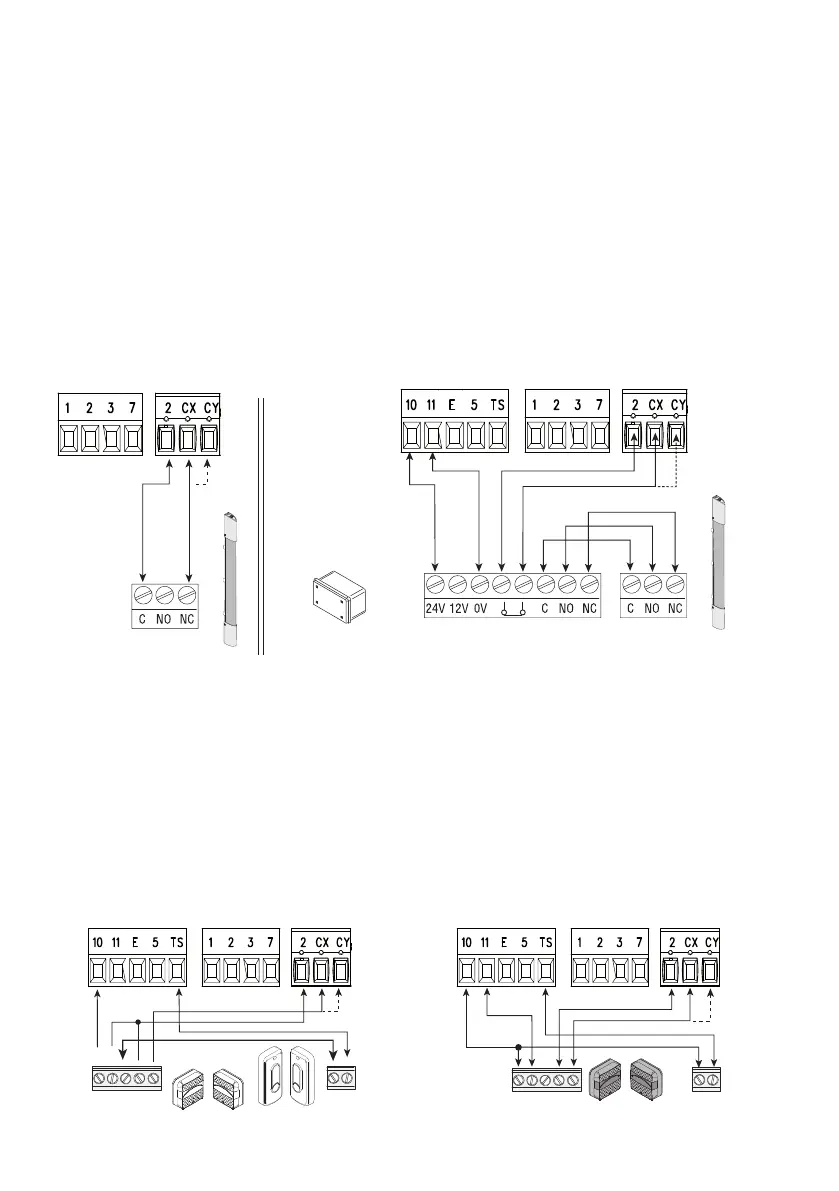

Sensitive Safety Edges
Confi gure contact CX or CY (NC), safety input for safety devices such as sensitive safety-edges.
See CX input functions (Function F 2) or CY (Function F 3) in:
- C7 reopening during closing (NC input). When the door is closing, opening the contact causes the door to invert
its movement until it is completely open.
- C8 reclosing during opening (NC input). When the door is opening, opening the contact causes the door to invert
its movement until it is completely closed.
- r7 reopening during closing (8K2 resistive input). When the door is closing, opening the contact causes the door
to invert its movement until it is completely open.
- r8 reclosing during opening (8K2 resistive input). When the door is opening, also opening the contact will cause
the door to invert its direction until it completely closes.
If unused, contacts CX and CY should be deactivated during programming.
(Connections controller)
Connecting the safety devices (i.e. the safety test)
At each opening and closing command, the control board checks the e cacy of the safety devices (such as,
photocells).
Any malfunction will inhibit all commands and E4 will appear on the display.
Enable function F 5 in programming.
Page 20 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Original instructions
