Red
Black

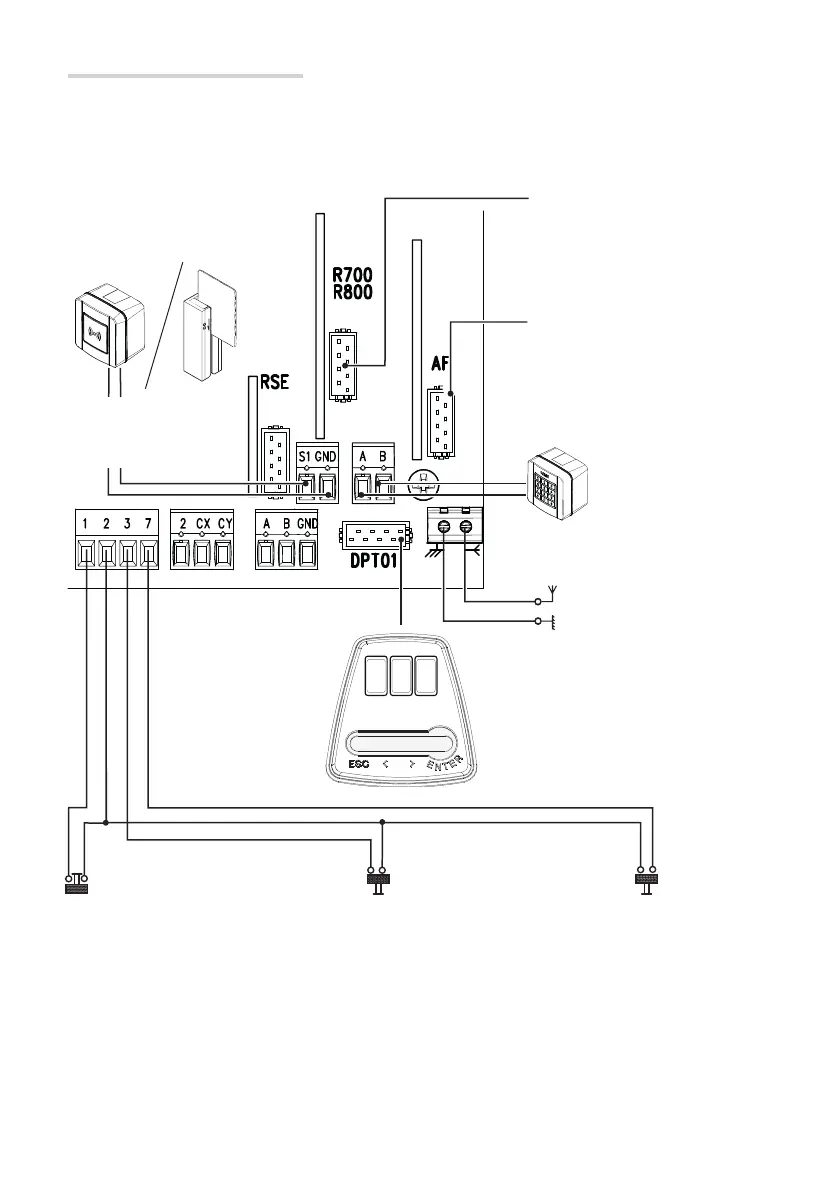

Transponder or card reader.
Programming keys and controls
Antenna with RG58 cable for
remote control.
Connector for the R700 card (for
using the transponder or the card
reader) or for the R800 card (for using
the keypad selector).
Keypad selector
Connector for the AF 868 or AF 43S
remote control card.
OPEN-CLOSE-INVERT function
(step-step) from control device (NO
contact). Alternatively, the functions
programming lets you activate other
controls.
See function F 7.
STOP button (NC contact).
Enables the door to stop and
excludes the automatic closing.
To resume movement press the
control button or use another
control device. See function F1.
OPEN or PARTIAL OPENING
function from control device
(NO contact).
See function F8.
Command and control devices
⚠
For the system to work properly, before fi tting any plug-in card, such as the AF or R800 one, you MUST CUT
OFF THE MAINS POWER SUPPLY and, if present, disconnect any batteries.
