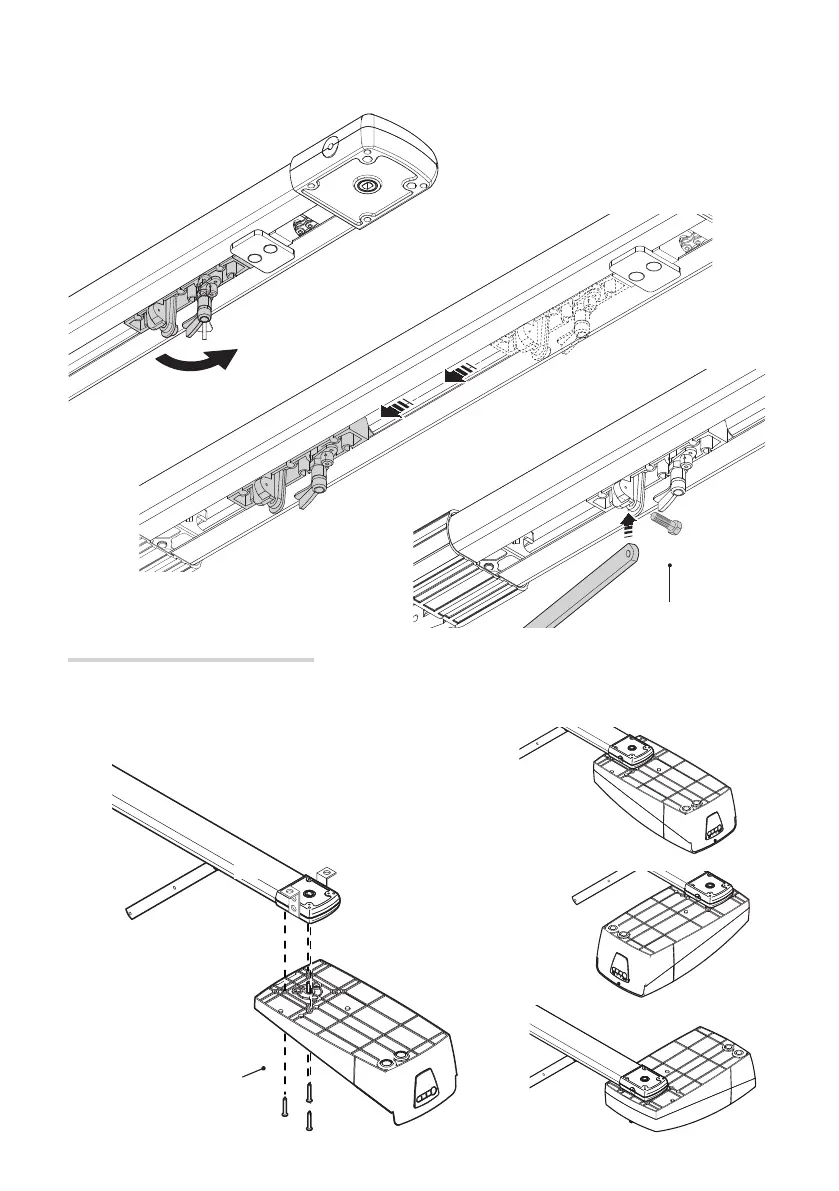

Fitting the operator to the guide
Fasten the operator to the guide-shaft by using the supplied screws ❶.
 The operator can also be fi tted laterally ❷.
Turn the release tab counter-clockwise ❺.
Move the traction assembly towards the door ❻ and fasten the transmission arm using the supplied bolt ❼.
