CAME VER-PLUS Series - Fastening the Guide-Shaft

=
=
xx
❶
❷
M6 x 14
M6
❸
❹
Page 13 - Manual FA01358-EN - 07/2019 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

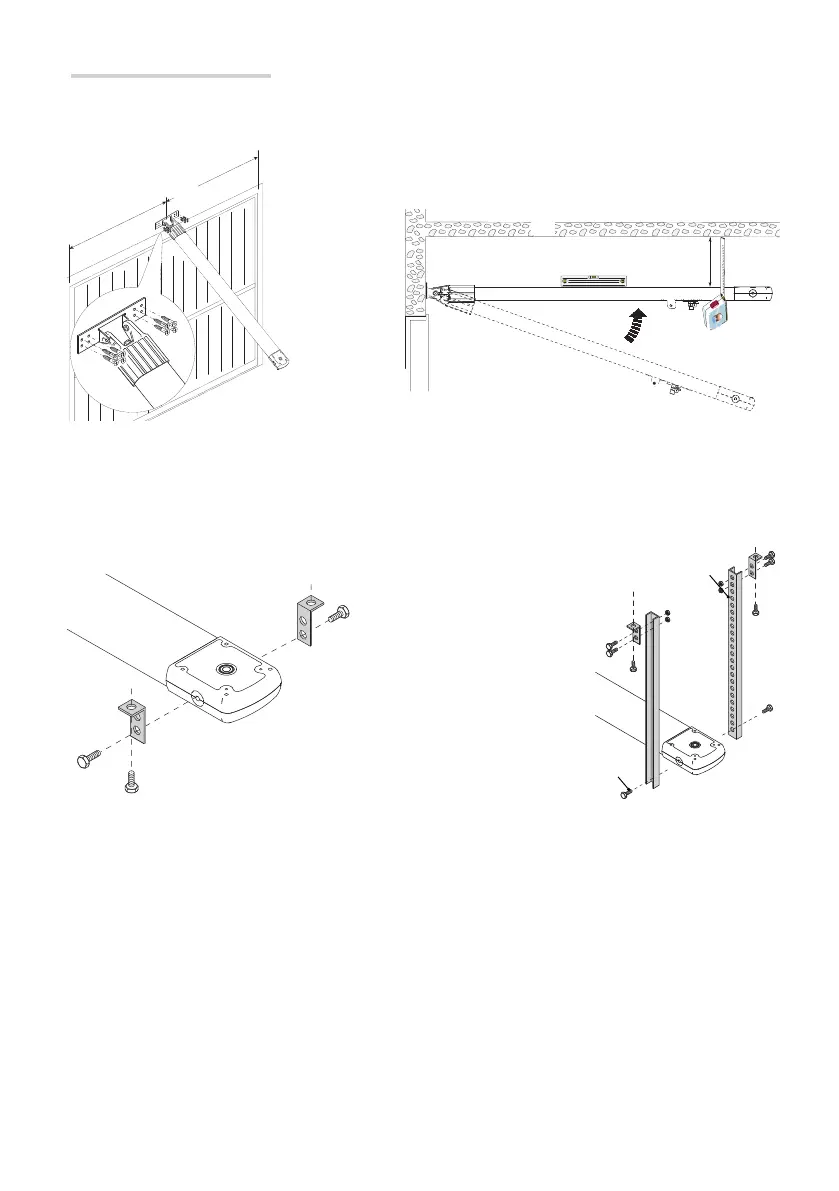

Fasten the braces to the guide and directly to the ceiling or use the supplied extensions and adapt them to the
required height ❸.
⚠If necessary, fi t additional support rods ❹.
Use suitable screws and dowels.
Fastening the guide-shaft
Fasten the guide-shaft to the center of the door opening. Use suitable bolts ❶.
Raise the guide-shaft and position it horizontally to measure the distance from the ceiling, and then fasten it. ❷.
