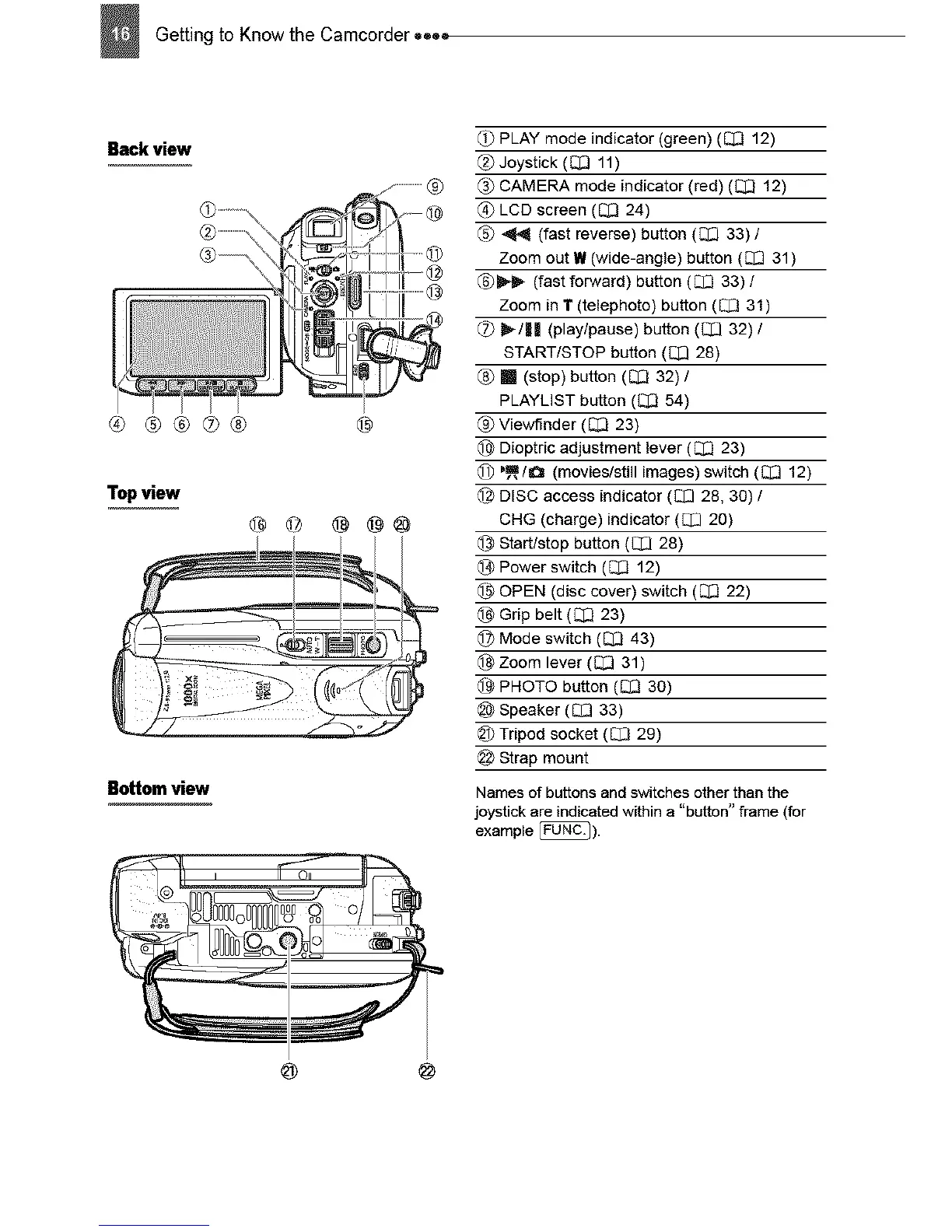

Getting to Know the Camcorder ,_.,_*
Back view
® ®®_®
Topview
Bottom view
@®
_1_PLAY mode indicator (green) (_ 12)
_ Joystick (_ 11)
CAMERA mode indicator (red) (C_ 12)
(_ LCD screen (C[3 24)
_5__ (fast reverse) button (CCJ 33)/
Zoom out W (wide-angle) button (C[3 31)
_1_ (fast forward) button (Q3 33) /
Zoom in T (telephoto) button (C_] 31)
_Z__/|| (play/pause) button (Q_3 32) /
START/STOP button (Q3 28)
m (stop) button (C[3 32) /
PLAYLIST button (L_ 54)
(_ Viewfinder (_ 23)
Dioptric adjustment lever (C]_ 23)
_,_,/It_ (movies/still images)switch (_3 12)
LT_DISC access indicator (QZJ28, 30) /
CHG (charge) indicator (C_ 20)
_-:_Start/stop button (C_l 28)
_4jPower switch (_ 12)
1@OPEN (disc cover) switch (C_] 22)
Grip belt (C_323)
LI-7_Mode switch (C_J 43)
1@Zoom lever (CC) 31 )
@ PHOTO button (C_ 30)
Speaker (_ 33)
_1_Tripod socket (CIQ 29)
_ Strap mount
Names of buttons and switches other than the
joystick are indicated within a "button" frame (for
example _).
@ @
