Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover (D530) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover (D530) > Procedure

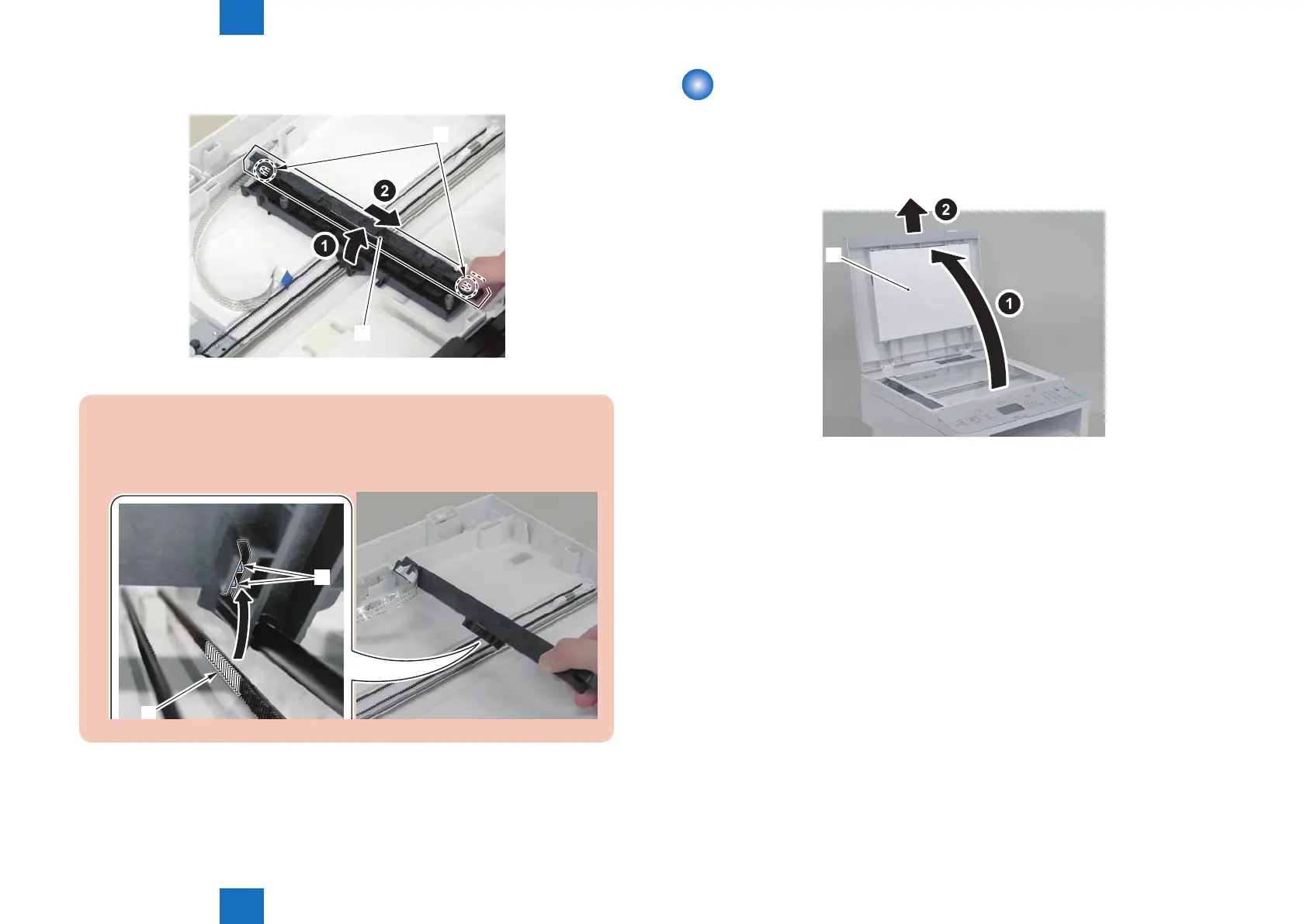

3)Remove the CIS unit[1]
• 2 shafts[2]
[1]
[2]
Caution.
If the CIS unit comes off, be sure to align the tooth[1] on the belt with the tooth[2] on
the bottom of the CIS unit to install the unit.
[2]
[1]
F-4-204
Removing the Copyboard Cover (D530)
■
Procedure
1) Remove the copyboard cover[1]
[1]
F-4-205
