Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4720w/MF4712/MF4710) > Procedure
Removing the Control Panel Unit (MF4720w/MF4712/
MF4710)
■
Procedure

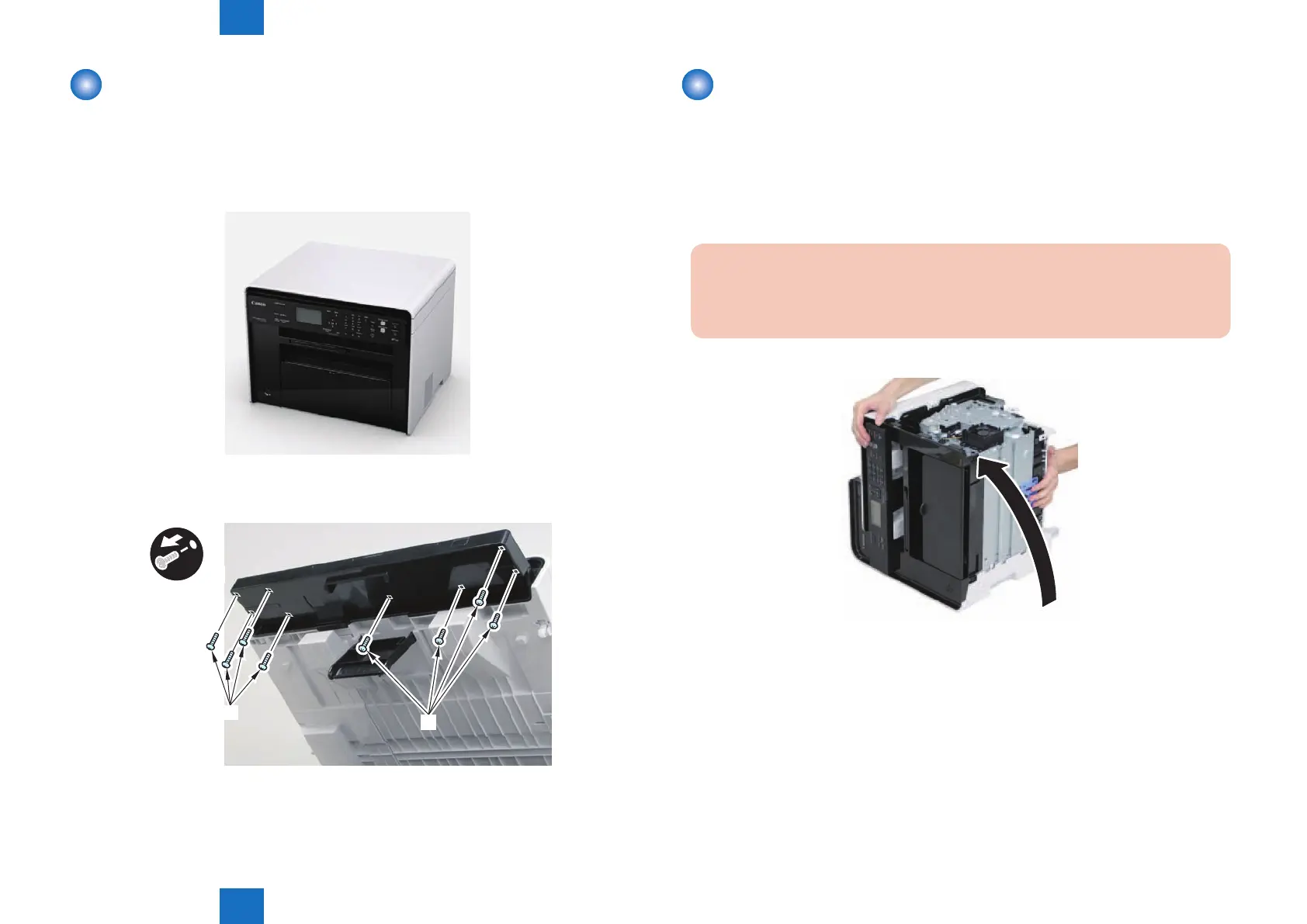

1)Open the reader unit and remove the control panel support plate
2) Remove the 8 screws[1] on the back side of the control panel unit.
x8
[1]
[1]
3) Remove the control panel unit
• 4 claws
• 1 at cable
F-4-606
F-4-607
Removing the Drive Belt (MF4720w/MF4712/MF4710)
■
Preparation
1) Remove the left cover
■
Procedure
1) Close the reader unit [1] and place the host machine with its left side down.
Caution:
Be sure to hold the reader unit rmly when turning the machine with its left side down
because the reader unit will be forced open by hinge spring pressure.
2)Remove the tension unit[1].
• 1 screw[2]
F-4-608
