Disassembly/Assembly > Document Exposure/Feeder System > Removing the CIS Unit (MF4720/MF4712/MF4710) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the CIS Unit (MF4720/MF4712/MF4710) > Procedure

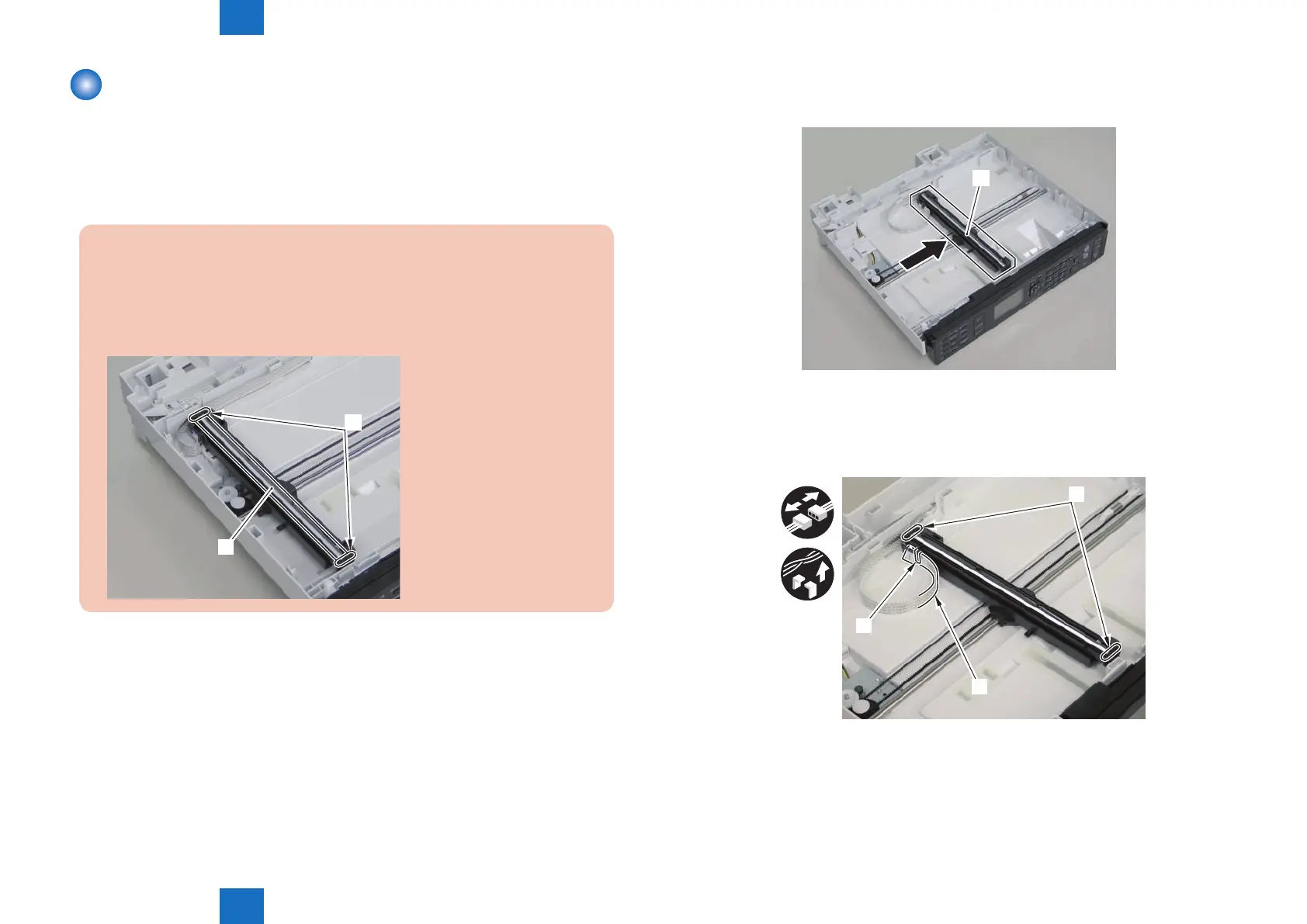

Removing the CIS Unit (MF4720/MF4712/MF4710)
■
Preparation
1) Remove the copyboard cover.
2)Remove the control panel unit.
3)Remove the copyboard glass
■
Procedure
Caution.
When assembling/disassembling the CIS unit, take care not to lose the 2 CIS unit
spacers [1].
When assembling/disassembling the CIS unit, do not touch the copy reading area [A]
of the CIS unit.
[1]
[A]
■
Procedure
1)Move the CIS unit[1]
[1]
2)Remove 2 spacers[1] and at cable[2].
• 1 guide[A]
[1]
[2]
[A]
F-4-271
F-4-272
