Disassembly/Assembly > List of Connectors > Single-sided Printer Unit
Disassembly/Assembly > List of Connectors > Single-sided Printer Unit

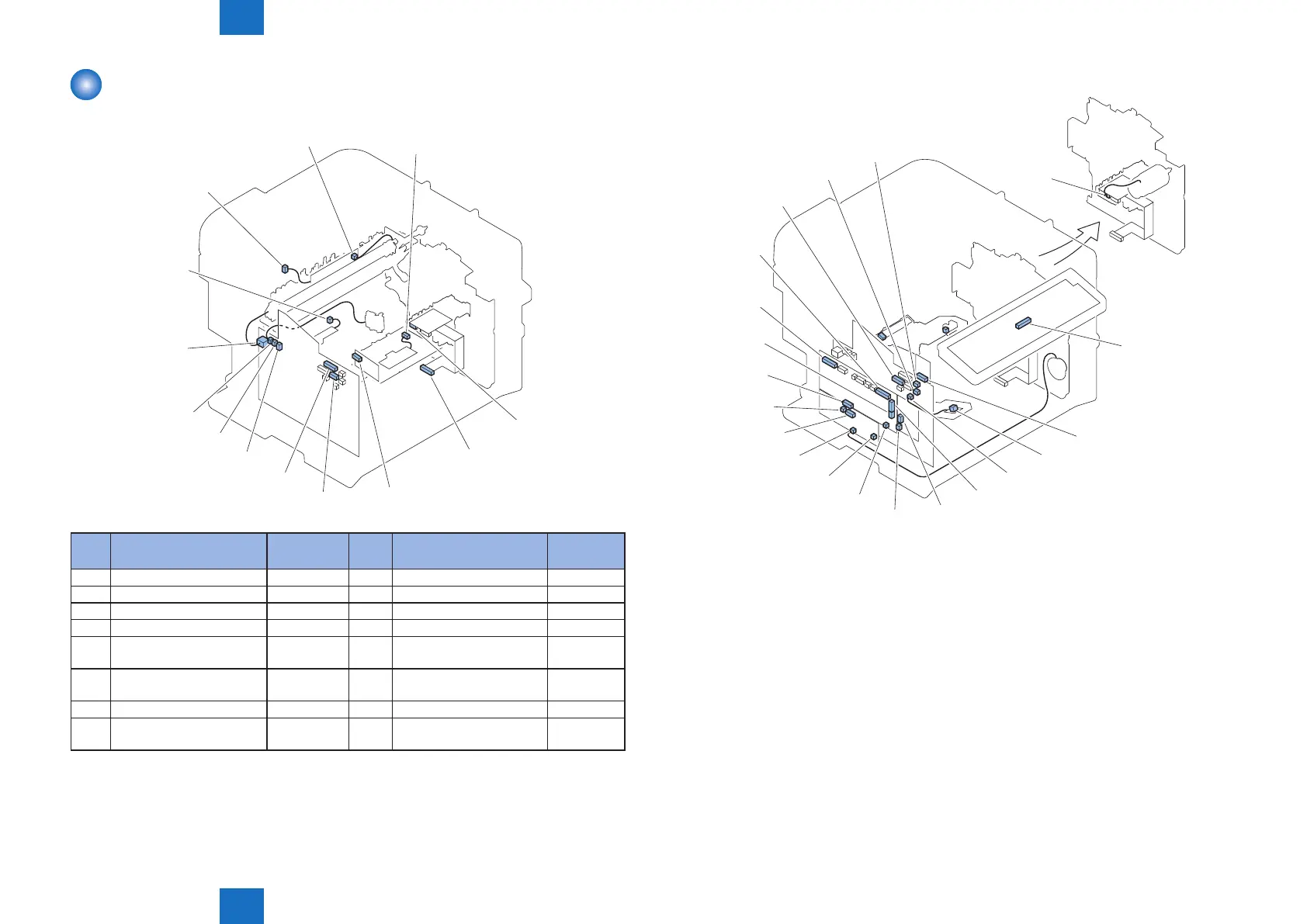

Single-sided Printer Unit
J701
J552
J101
J702
J802
J542
J801
J1153
J571
J562
J751
J551
J1151
J No. Name
Relay
Connector
J No. Name Remarks
J1151 Motor Driver PCB - J571 Engine Controller PCB -
J1153 Motor Driver PCB - J802 Laser Scanner Motor -
J801 Laser Driver PCB - J542 Engine Controller PCB -
J101 Engine Controller PCB - - Fixing Film Unit -
J551 Engine Controller PCB - J751 Paper Leading Edge
Sensor
-
J552 Engine Controller PCB - J701 Fixing Delivery/Paper
Width Sensor PCB
-
J562 Engine Controller PCB - J562 Pickup Solenoid -
J702 Fixing Delivery/Paper Width
Sensor PCB
- - Fixing Film Unit -
F-4-19
T-4-6
J401
J905
J901
J902
J7
J6
J601
J602
J605
J1204
J1309
J1305
J1152
J1205
J1202
J1201
J581
J3
J4
J1
F-4-20
