Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit (MF4720w/MF4712/MF4710) > Procedure

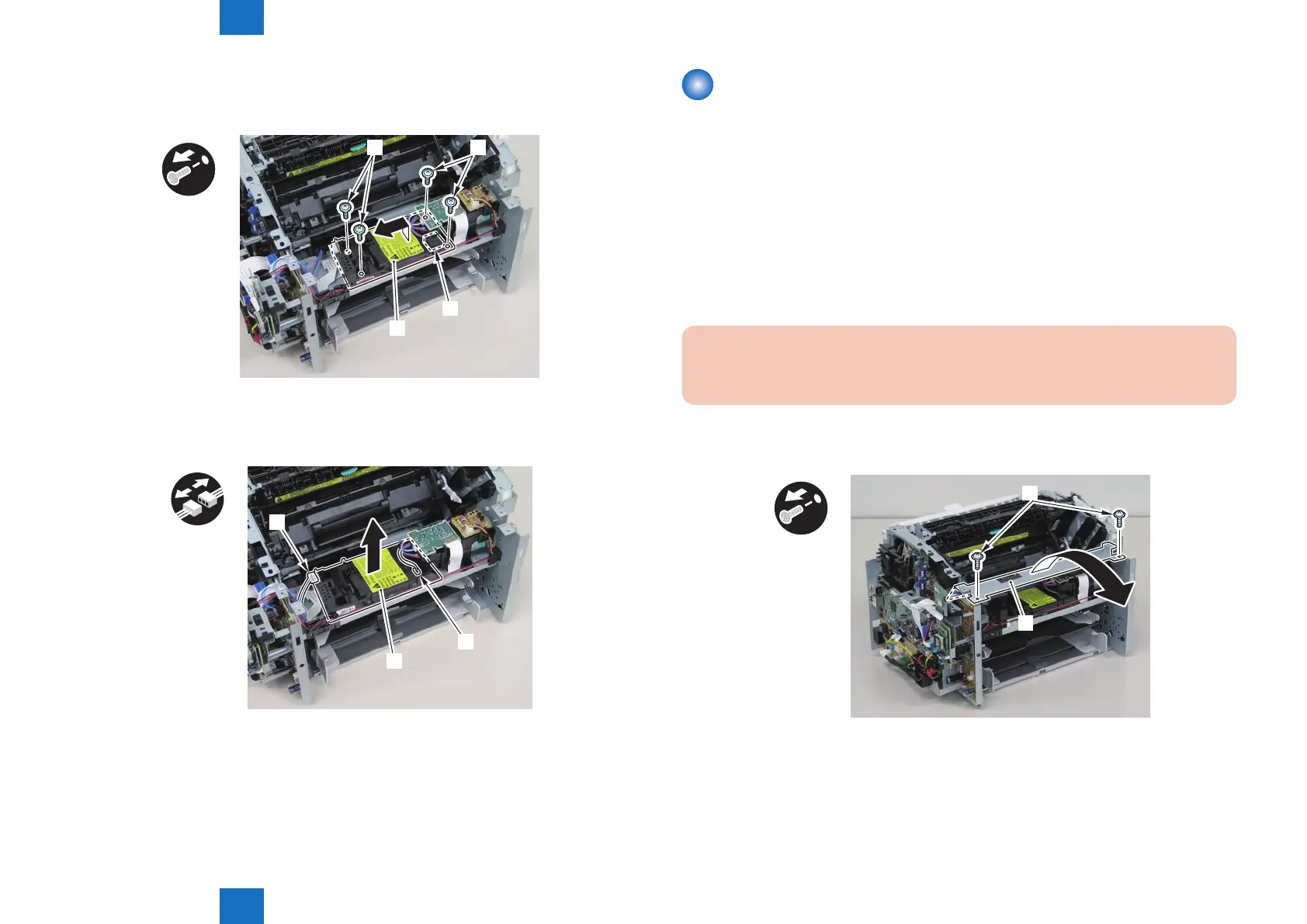

2) Move the laser scanner unit [1].
• 4 screws [2]
• 1 sponge[3]
[1]
x4
[2] [2]
[3]
3) Remove the laser scanner unit [1].
• 1 at cable [2]
• 1 connector [3]
x2
[1]
[2]
[3]
F-4-743
F-4-744
Removing the Laser Scanner Unit (MF4720w/MF4712/
MF4710)
■
Preparation
1)Remove the left cover.
2)Remove the copyboard cover and reader unit.
3)Remove the right cover.
4)Remove the front cover unit.
5)Remove the upper cover
■
Procedure
Caution:
Do not disassemble the laser scanner unit because adjustment is required.
1) Remove the scanner cover [1].
• 2 screws (black TP) [2]
[1]
x2
[2]
F-4-745
