Disassembly/Assembly > Controller System > Removing the Wireless LAN PCB (L418S/L410/L190) > Procedure
Disassembly/Assembly > Controller System > Removing the Wireless LAN PCB (L418S/L410/L190) > Procedure

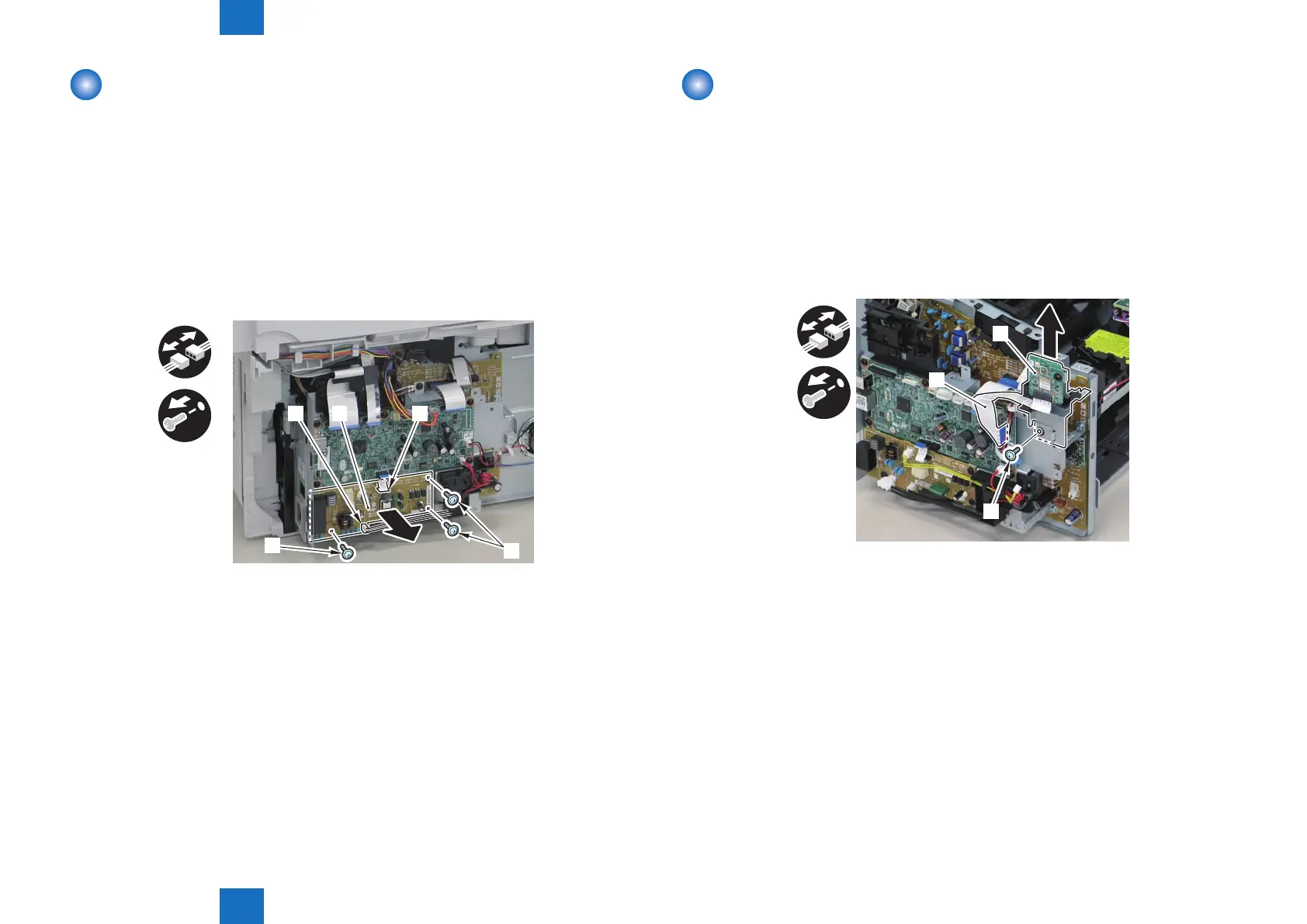

Removing the FAX NCU PCB(L418S/L410/L190)
■
Preparation
1) Remove the left cover
■
Procedure
1)Remove the FAX NCU PCB[1]
• 1 at cable[2]
• 1 connector[3]
• 3 screws[4]
x3
x2
[1] [2]
[4]
[4]
[3]
F-4-692
Removing the Wireless LAN PCB (L418S/L410/L190)
■
Preparation
1) Remove the left cover
■
Procedure
1)Remove the wireless LAN PCB.
• 1 at cable[2]
• 1 screw[3]
[1]
[2]
[3]
F-4-693
