Product Overview > Name of Parts > External View > MF4890dw/MF4880dw
Product Overview > Name of Parts > External View > MF4890dw/MF4880dw
(L418S/L410/L190)
Line Used Public Switched Telephone Network (PSTN)*1
Communication Mode Super G3, G3
Compression Method MH, MR, MMR
Modem Speed Super G3: 33.6 Kbps, G3: 14.4 Kbps
Automatic Fallback
Transmission Speed Approx. 3 seconds per page*2
(ECM-MMR, transmitting from the memory at 33.6 Kbps)
Sending from Memory/
Receiving in Memory
Maximum approx. 256 pages*2 (Total pages of transmission/
reception)
(Maximum number of fax jobs that can be sent from the memory: 10
jobs/
Maximum number of fax jobs that can be received into the memory:
90 jobs)
Fax Resolution
• (Normal): 200 dpi x 100 dpi
• (Fine): 200 dpi x 200 dpi
• (Photo): 200 dpi x 200 dpi
• (Superne): 200 dpi x 400 dpi
Dialing
• One-touch keys (40 destinations)
• Coded dialing (200 destinations)
• Group dialing (239 groups, 50 destinations in each group)
• Address book dialing
• Regular dialing (with numeric keys)
• Automatic redialing
• Manual redialing
• Sequential broadcast (250 destinations)
Receiving
• Automatic reception
• Remote reception by telephone (Default ID: 25)
Reports
• TX Results
• Communication management report (Auto output every 40
destinations)
• RX Results
*1 The Public Switched Telephone Network (PSTN) currently supports 28.8 Kbps modem
speed or lower. Note that speeds can vary depending on the telephone line conditions.
*2 Based on ITU-T (ITU Telecommunication Standardization Sector) Standard Chart No. 1,
MMR standard mode.
T-1-9

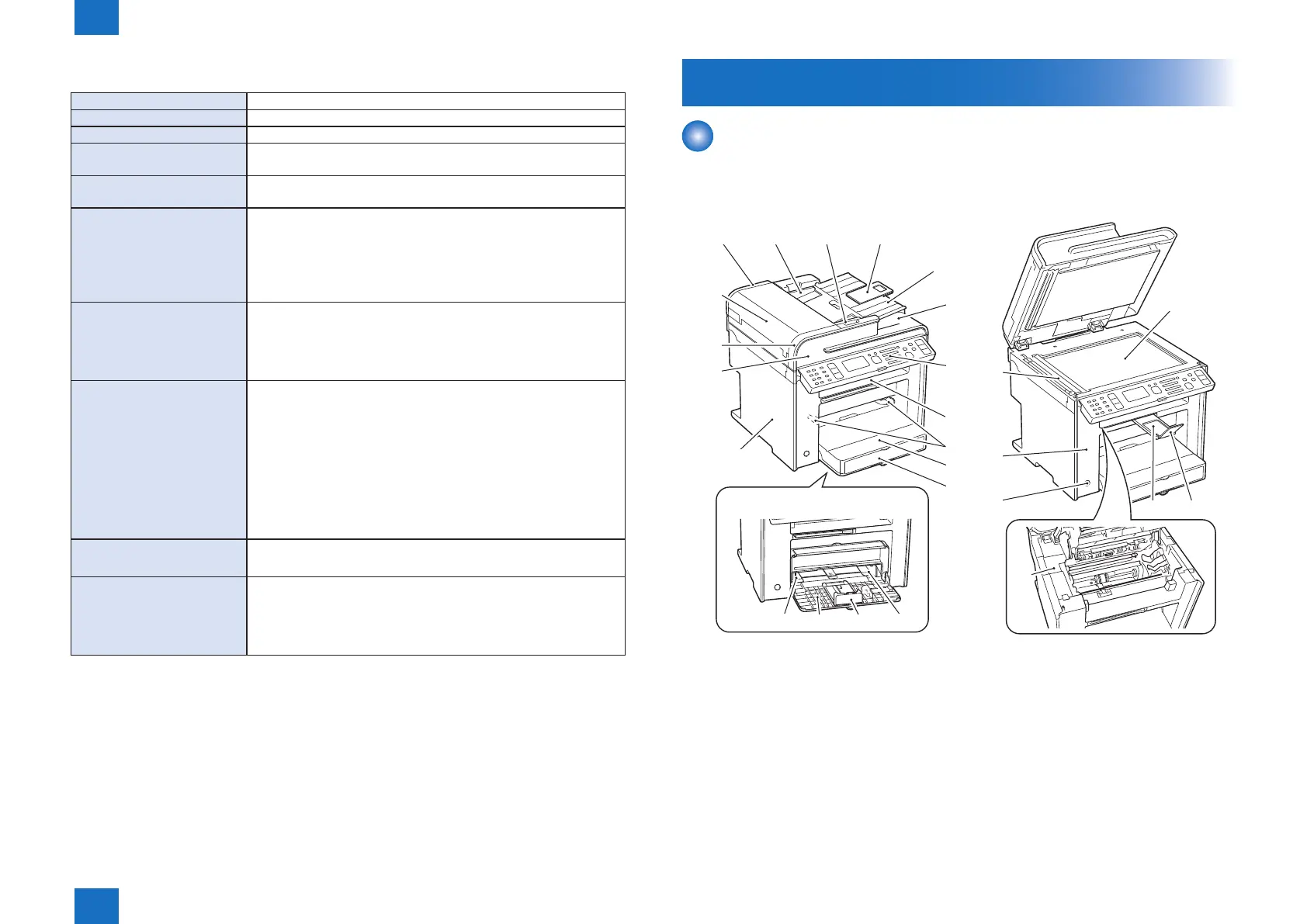

Name of Parts
External View
■
MF4890dw/MF4880dw
●
Front Side
[1]
[21] [20]
[14]
[2]
[13]
[12][12]
[15]
[17]
[16]
[18]
[5]
[4]
[10]
[11]
[3]
[6]
[7]
[8]
[9]
[19]
[22]
[23]
[24]
[25]
No. Name No. Name
[1] DADF Rear Cover [14] Pickup Tray
[2] Side Guide Plate (Rear) [15] Left Cover
[3] Side Guide Plate (Front) [16] DADF Front Cover
[4] Original Feed Auxiliary Tray [17] DADF Front Upper Cover
[5] Original Feed Tray [18] DADF Upper Cover
[6] Original Delivery Tray [19] Copyboard Glass
[7] Control Panel Unit [20] Delivery Stopper
[8] Delivery Tray [21] Delivery Auxiliary Tray
[9] Multi-Purpose Tray Paper
Guides
[22] Upper Cover
F-1-1
