Canon imageCLASS MF4880dw - Removing the Copyboard Cover and Reader Unit (D530)

4
4
4-86
4-86
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover and Reader Unit (D530) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover and Reader Unit (D530) > Procedure

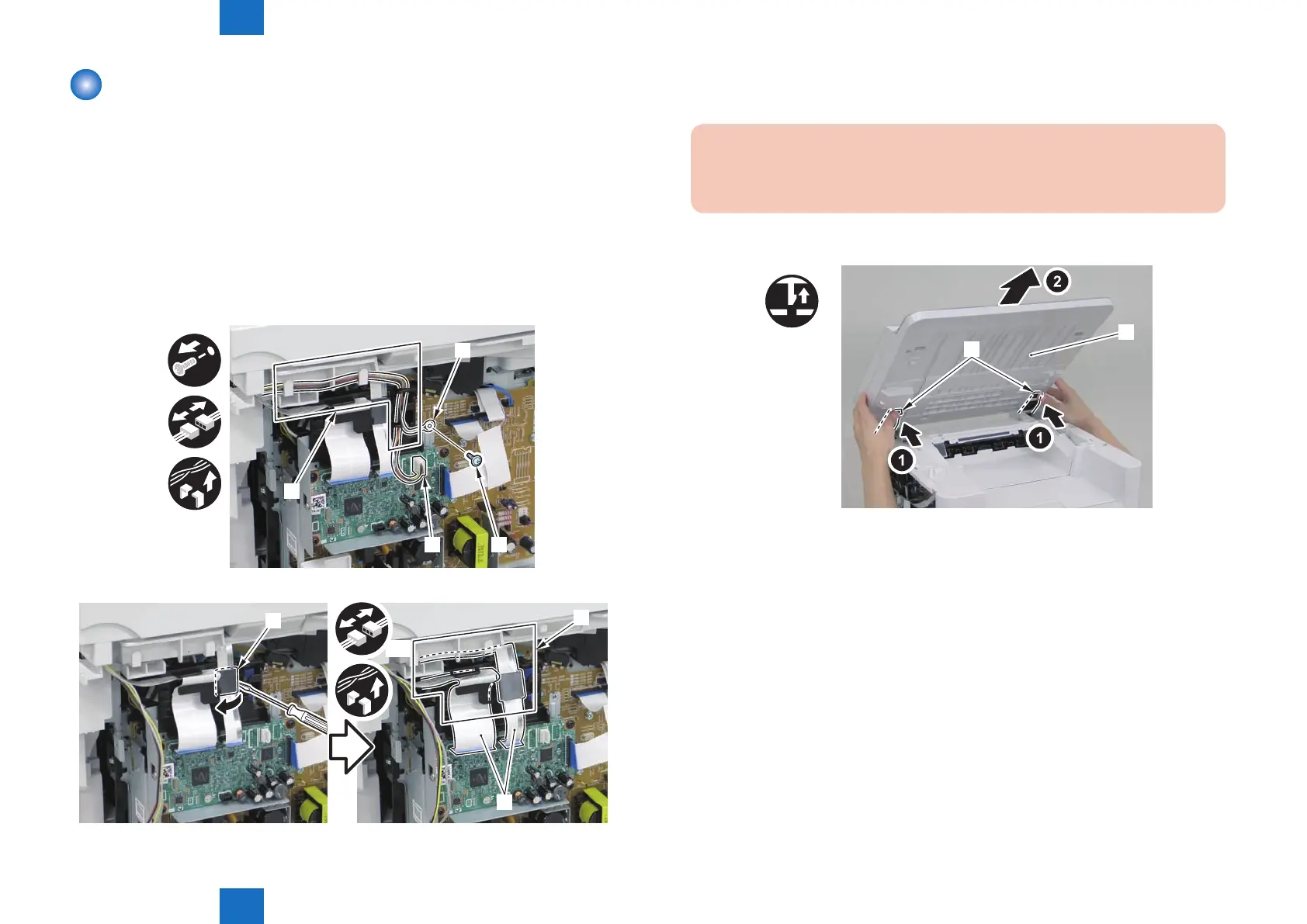

Removing the Copyboard Cover and Reader Unit
(D530)
■
Preparation
1) Remove the left cover.
■
Procedure
1) Remove the 1 grounding wires[1].
• 1 screw(black TP)
2) Disconnect the connectors[3], and free the grounding wire and the harnesses from the
harness guide[A].
[1]
[A]
[2]
[3]
3)Remove the ferrite core[1], and disconnect the 2 at cables from the harness guide[A]
[1]
[A]
[2]
x2
F-4-206
F-4-207
4)Remove the copyboard cover and reader unit.
• 2 claws[2]
Caution:
When placing the removed copyboard cover and reader unit on the desk, oor,
etc.,be careful not to get the at cable and harnesses trapped under them.
x2
[1]
[2]
F-4-208
