Canon imageCLASS MF4880dw - Printer; Reader

1
1
1-13
1-13

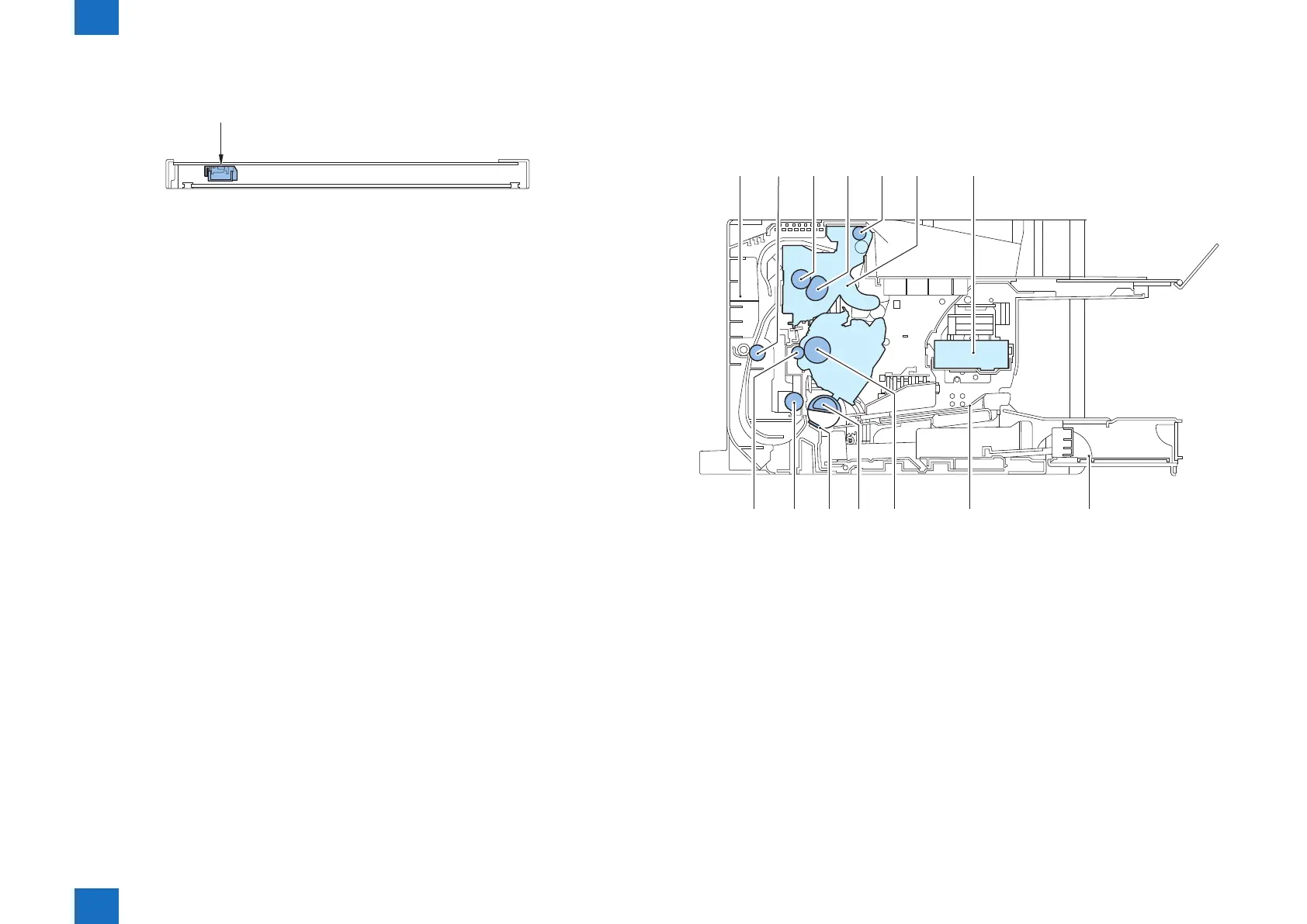

Product Overview > Name of Parts > Cross Section > Printer
Product Overview > Name of Parts > Cross Section > Printer
■
READER
[1]
No. Name
[1] CIS UNIT
F-1-13
■
Printer
●
MF4890dw/MF4880dw/MF4870dn/MF4830d/MF4820/D530/L418S/
L410/L190
[10]
[1]
[11]
[2]
[12]
[3]
[13]
[4]
[14]
[5] [6] [7]
[8][9]
No. Name No. Name
[1] Duplex Feed Unit [8] Pickup Tray
[2] Duplex Feed Roller [9] Multi-Purpose Tray
[3] Fixing Pressure Roller [10] Photosensitive Drum
[4] Fixing Film Unit [11] Pickup Roller
[5] Delivery Roller [12] Separation Pad
[6] Fixing Assembly [13] Feed Roller
[7] Laser Scanner Unit [14] Transfer Roller
F-1-14
