Canon imageCLASS MF4880dw - Removing the Separation Pad (D530)

4
4
4-357
4-357
Disassembly/Assembly > Pickup And Feeding System > Removing the Separation Pad (D530) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Separation Pad (D530) > Procedure
Caution:

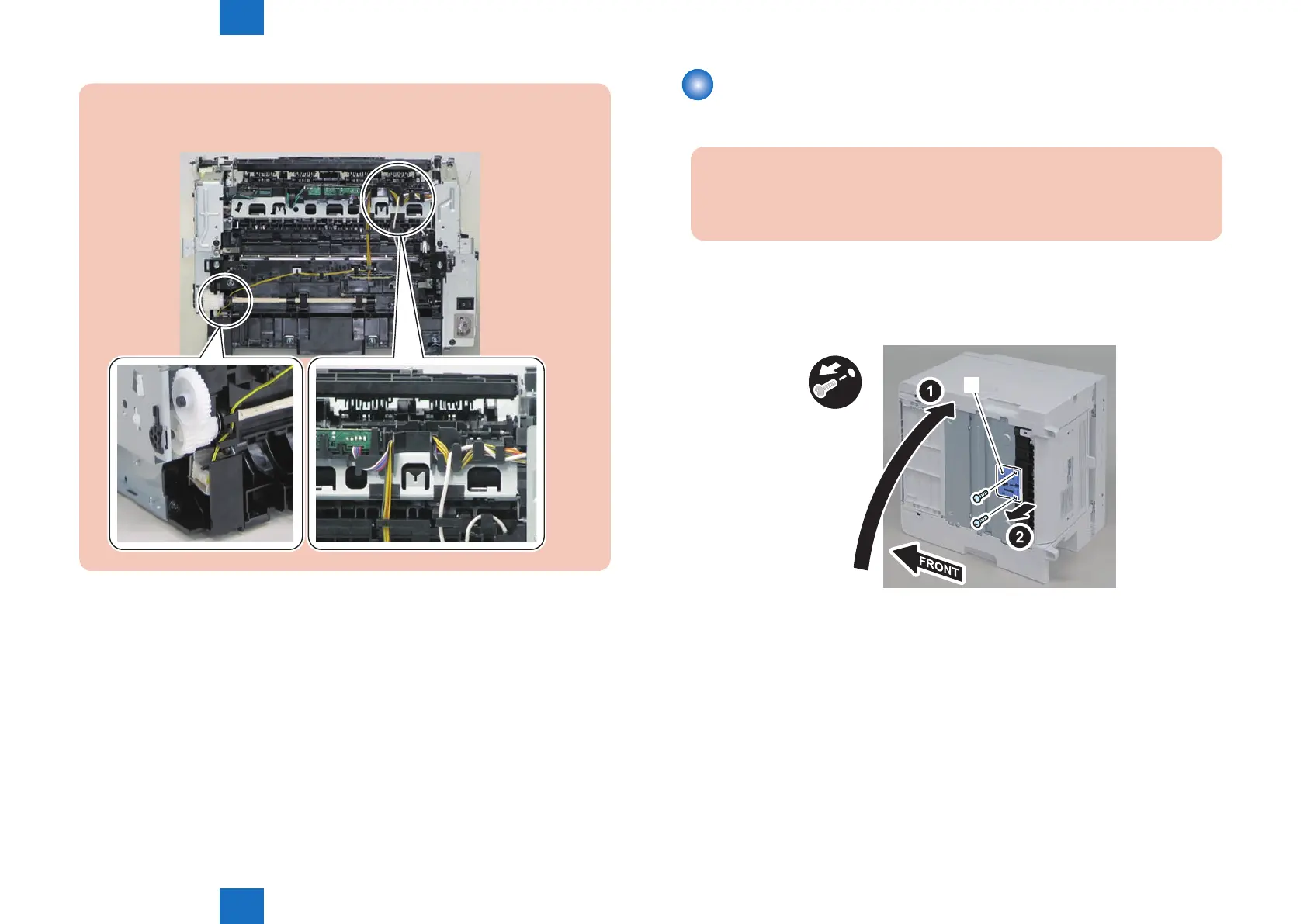

The below picture shows how to wind the harness.
Removing the Separation Pad (D530)
■
Procedure
Caution:
When assembling/disassembling the separation pad, do not touch the surface of
the separation pad.
1) Face the left side of the host machine downwards.
2) Remove the separation pad [1].
• 2 screws [2]
[1]
x5x2
F-4-980
