Canon imageCLASS MF4880dw - Removing the Multi Pickup Sensor Unit (D530)

4
4
4-209
4-209
Disassembly/Assembly > Controller System > Removing the Multi Pickup Sensor Unit (D530) > Procedure
Disassembly/Assembly > Controller System > Removing the Multi Pickup Sensor Unit (D530) > Procedure
Note:

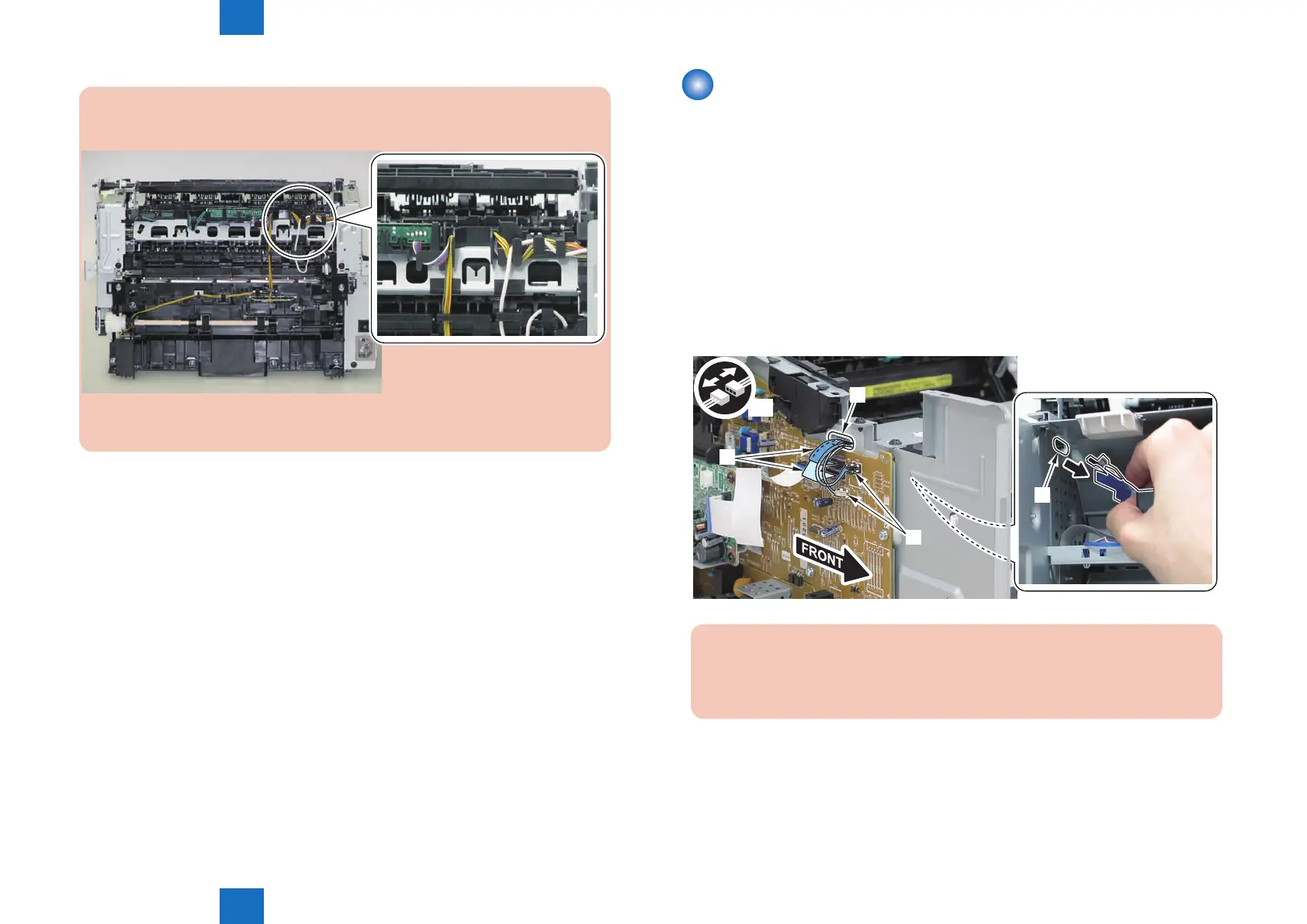

The below picture shows how to wind the harness.
F-4-541
Removing the Multi Pickup Sensor Unit (D530)
■
Preparation
1) Remove the left cover
2)Remove the copyboard cover and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure
1)Remove the 2 connectors[1] and 2 at cables[2], and put them through the hole[A] of the
left side plate to the inside.
x4
[2]
[A]
[A]
[1]
Caution:
When removing the scanner cover, be sure to disconnect the at cable in advance
to prevent damage to the cable
