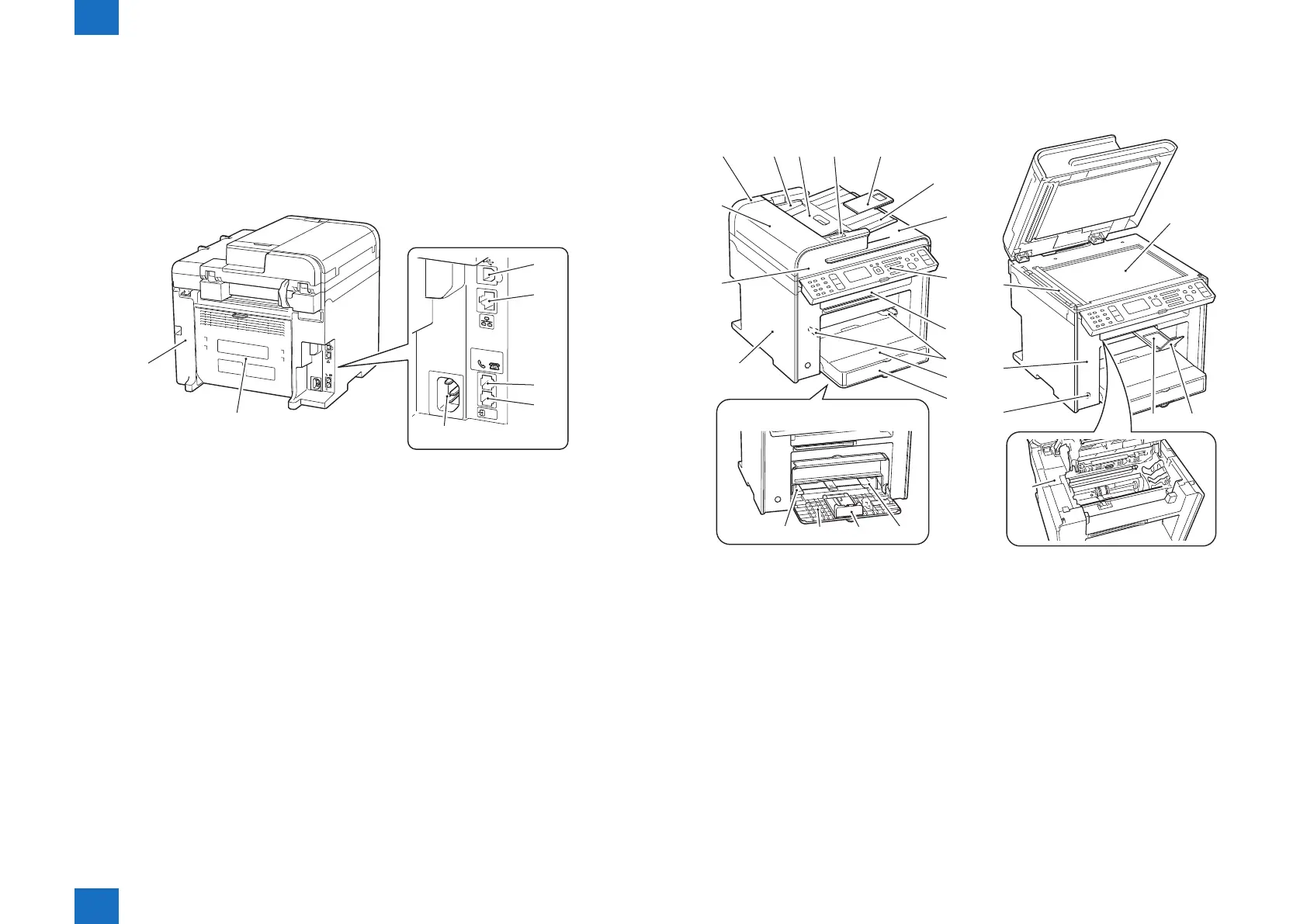

Product Overview > Name of Parts > External View > MF4870dn/MF4830d/MF4780w/MF4770n/MF4750/MF4730
Product Overview > Name of Parts > External View > MF4870dn/MF4830d/MF4780w/MF4770n/MF4750/MF4730
No. Name No. Name
[10] Multi-Purpose Tray [23] Power Switch
[11] Tray Cover [24] Front Cover Switch
[12] Pickup Tray Paper Guides [25] Copyboard Upper Cover
[13] Trailing Edge Paper Guides
●
Rear Side
HAND
SET
EXT.
LINE
HAND
SET
EXT.
LINE
[7]
[5]
[6]
[1]
[2]
[3]
[4]
No. Name
[1] USB Device Port
[2] LAN Port
[3] External Device Jack
[4] Telephone Line Jack
[5] Power Supply Cord Slot
[6] Rear Cover
[7] Right Cover
F-1-2
■
MF4870dn/MF4830d/MF4780w/MF4770n/MF4750/MF4730
●
Front Side
[1]
[15]
[2] [3]
[14]
[13][13]
[16]
[17]
[18]
[6]
[5]
[11]
[12]
[24]
[23]
[25]
[19]
[4]
[7]
[8]
[9]
[21] [20]
[10]
[22]
No. Name No. Name
[1] SADF Rear Cover [14] Trailing Edge Paper Guides
[2] Side Guide Plate (Rear) [15] Pickup Tray
[3] Original Feed Tray [16] Left Cover
[4] Side Guide Plate (Front) [17] SADF Front Cover
[5] Original Feed Auxiliary Extension Tray [18] SADF Upper Cover
[6] Original Feed Auxiliary Tray [19] Copyboard Glass
[7] Original Delivery Tray [20] Delivery Stopper
[8] Control Panel Unit [21] Delivery Auxiliary Tray
[9] Delivery Tray [22] Upper Cover
[10 Multi-Purpose Tray Paper Guides [23] Power Switch
[11] Multi-Purpose Tray [24] Front Cover Switch
[12] Tray Cover [25] Copyboard Upper Cover
[13] Pickup Tray Paper Guides
F-1-3
