Canon imageCLASS MF4880dw - Page 233

4
4
4-157
4-157
Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4870dn/MF4830d) > Procedure
[1]
[2]
x5
[3]
[3]
[3]

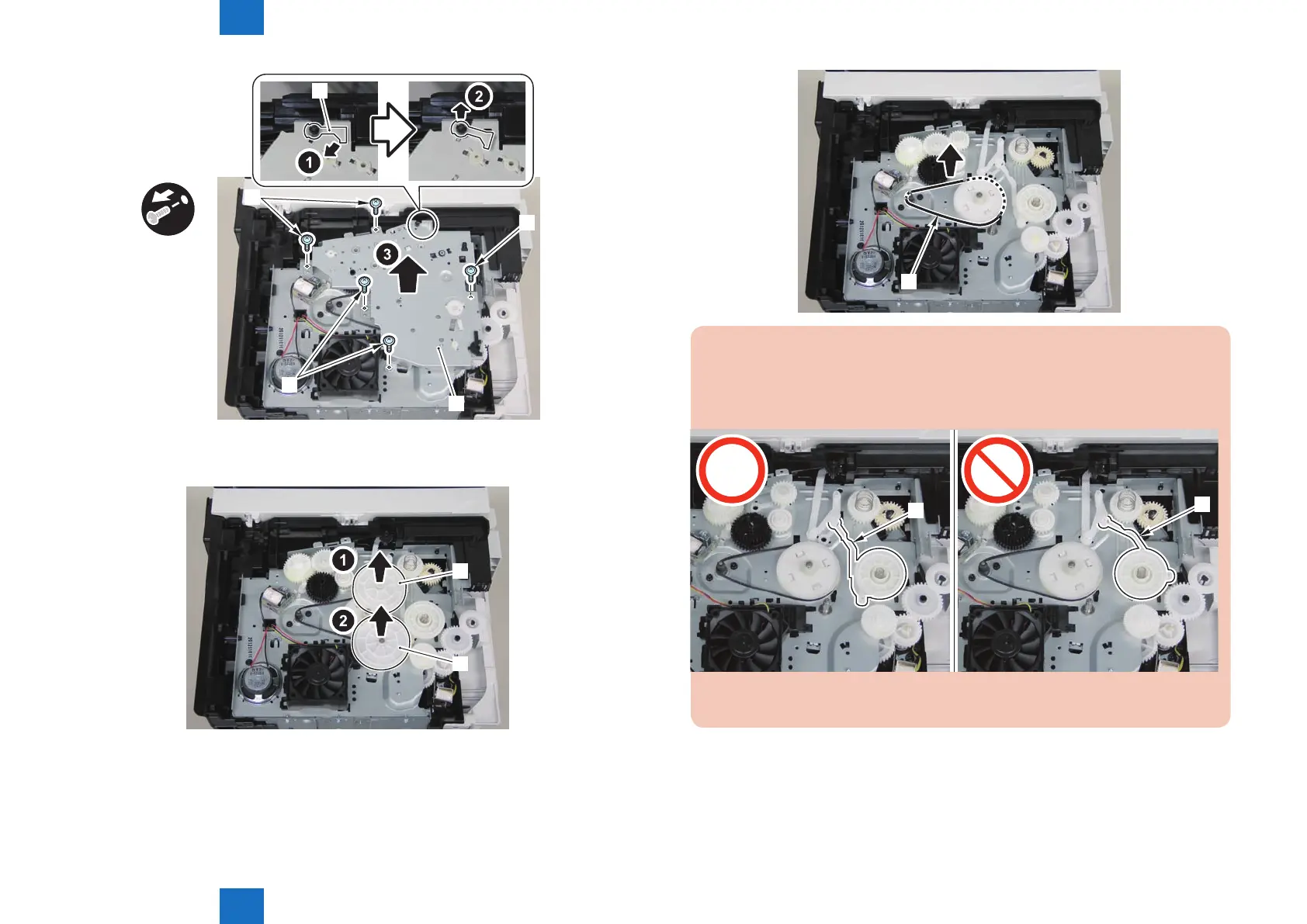

4)Remove the xing transmission gear[1] and the cartridge transmission gear[2]
[1]
[2]
5)Remove the drive belt.
F-4-380
F-4-381
[1]
Caution:
When assembling the drive gear, install the cartridge arm [1] according to the position
shown in the left picture.
[1]
[1]
F-4-383
F-4-382
