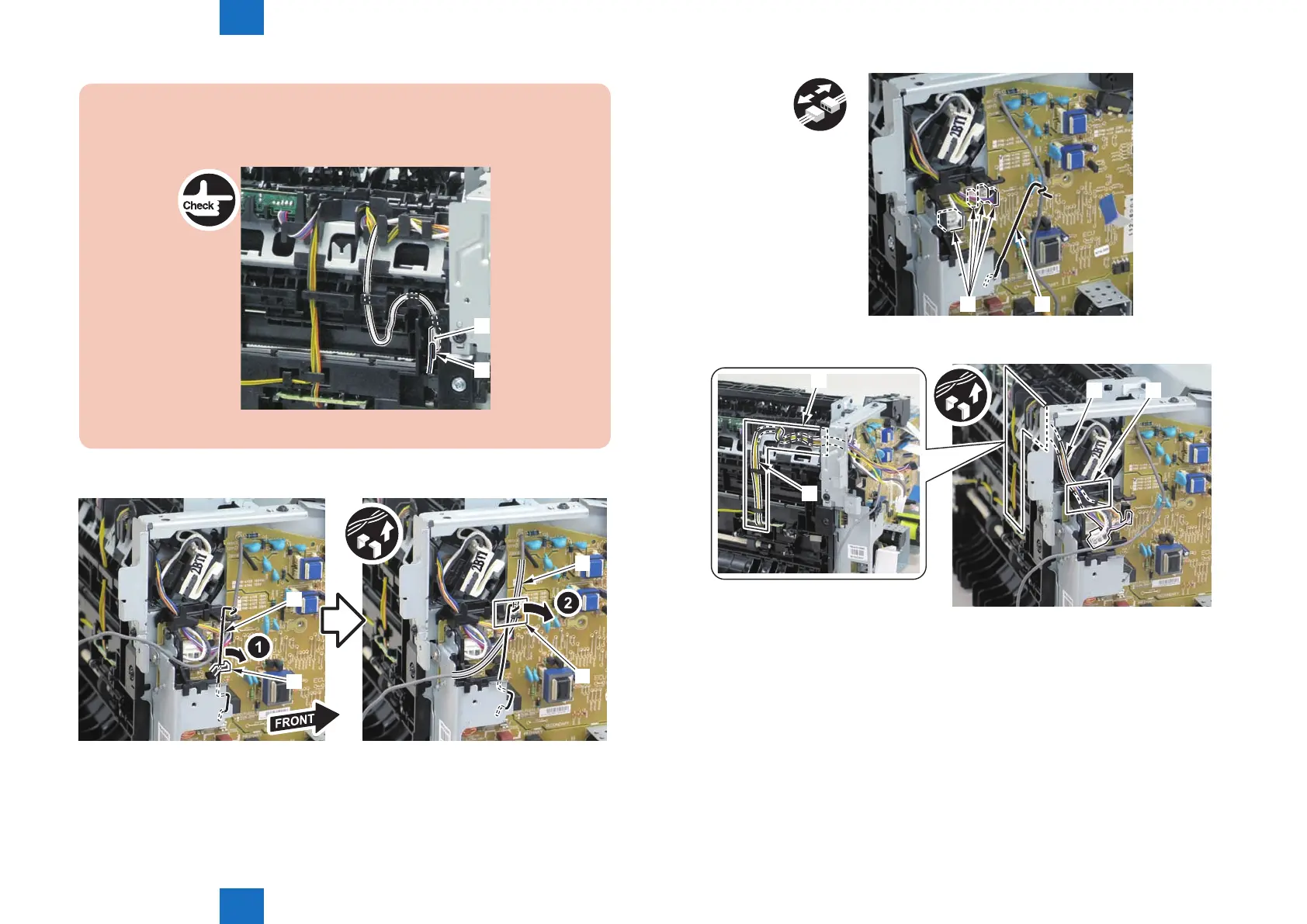

Disassembly/Assembly > Controller System > Removing the Paper Leading Edge Sensor PCB(MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Controller System > Removing the Paper Leading Edge Sensor PCB(MF4870dn/MF4830d) > Procedure
Caution:
When connecting the terminal[1], be sure that the contact spring[2] is in contact with
it.
[2]
[1]
F-4-415
3)Remove the harness spring[1] from the hook[2], and free the harness[3] from the guide[A].
[1]
[2]
[3]
[A]
4)Remove the harness retaining spring[1] and 4 connectors[2]
F-4-416
x4
[1][2]
5)Remove the harness[1] from the guide[A] and [B].
[1] [A]
[1]
[B]
F-4-417
F-4-418
