Disassembly/Assembly > Controller System > Removing the Paper Leading Edge Sensor PCB(D530) > Procedure
Disassembly/Assembly > Controller System > Removing the Paper Leading Edge Sensor PCB(D530) > Procedure

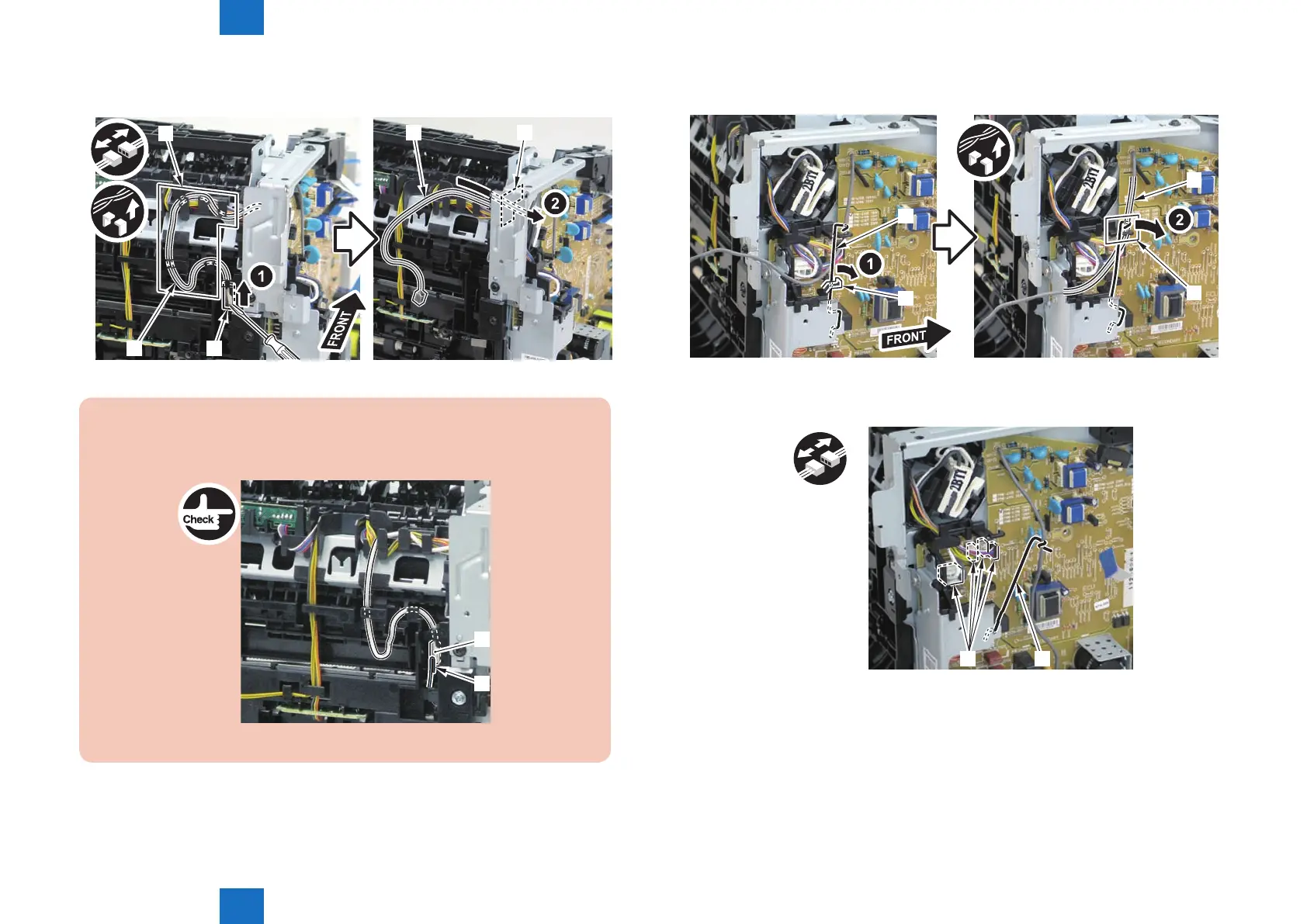

2)Disconnect the terminal[1], free the harness[2] from the harness guide[A], and then put it
through the hole[B].
[1][2]
[A]
[2] [B]
Caution:
When connecting the terminal[1], be sure that the contact spring[2] is in contact with
it.
[2]
[1]
F-4-528
F-4-527
3)Remove the harness retaining spring[1] from the hook[2], and free the harness[3] from the
guide[A].
[1]
[2]
[3]
[A]
4)Remove the harness retaining spring[1] and 4 connectors[2].
x4
[1][2]
F-4-529
F-4-530
