Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit (D530) > Procedure
Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit (D530) > Procedure

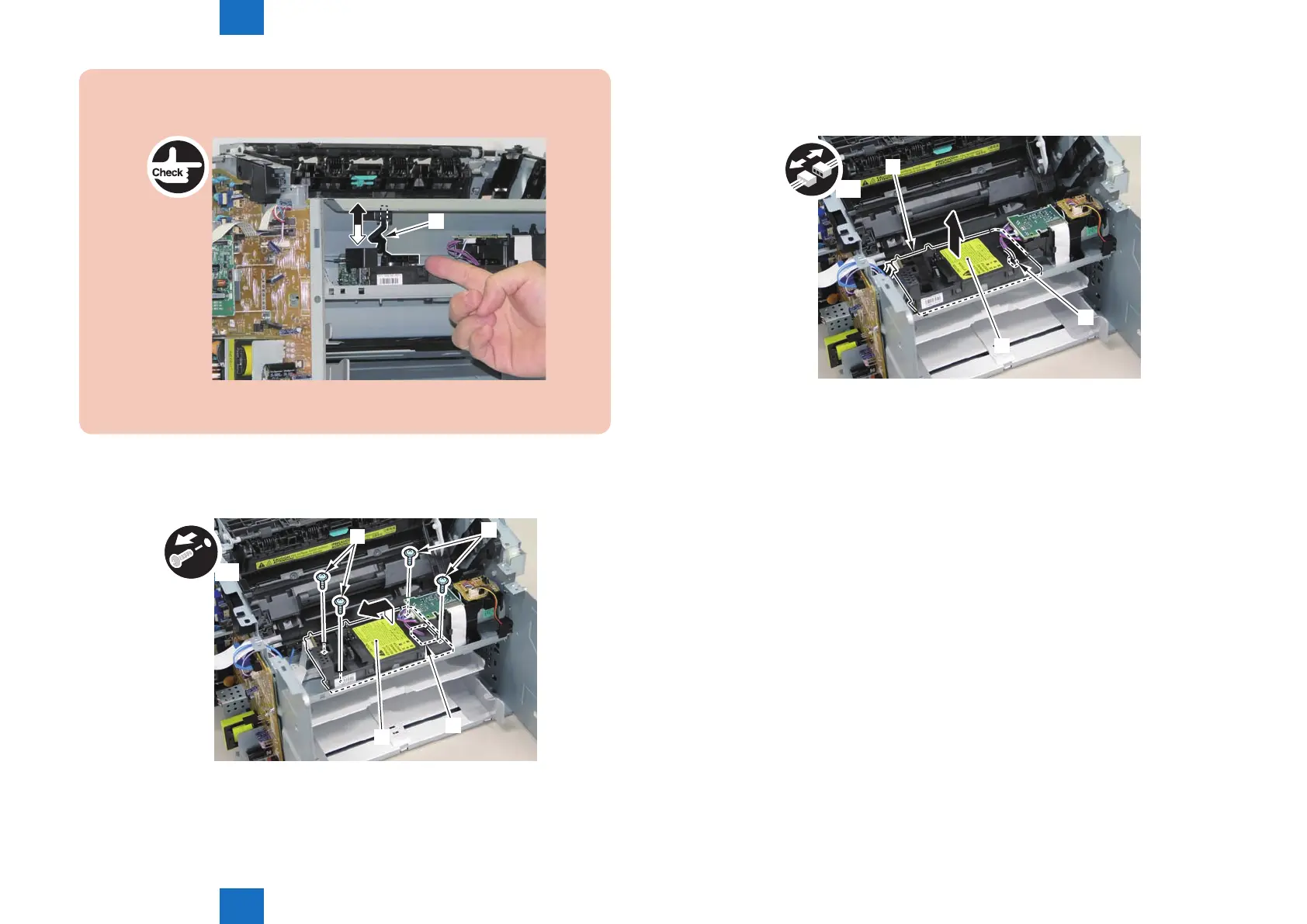

Caution:
Ensure that the shutter open/close lever [1] can move vertically.
[1]
F-4-737
3)Move the laser scanner unit [1].
• 4 screws [2]
• 1 sponge[3]
[1]
x4
[2]
[2]
[3]
F-4-738
3) Remove the laser scanner unit [1].
• 1 at cable [2]
• 1 connector [3]
x2
[1]
[2]
[3]
F-4-739
