Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4870dn/MF4830d) > Procedure

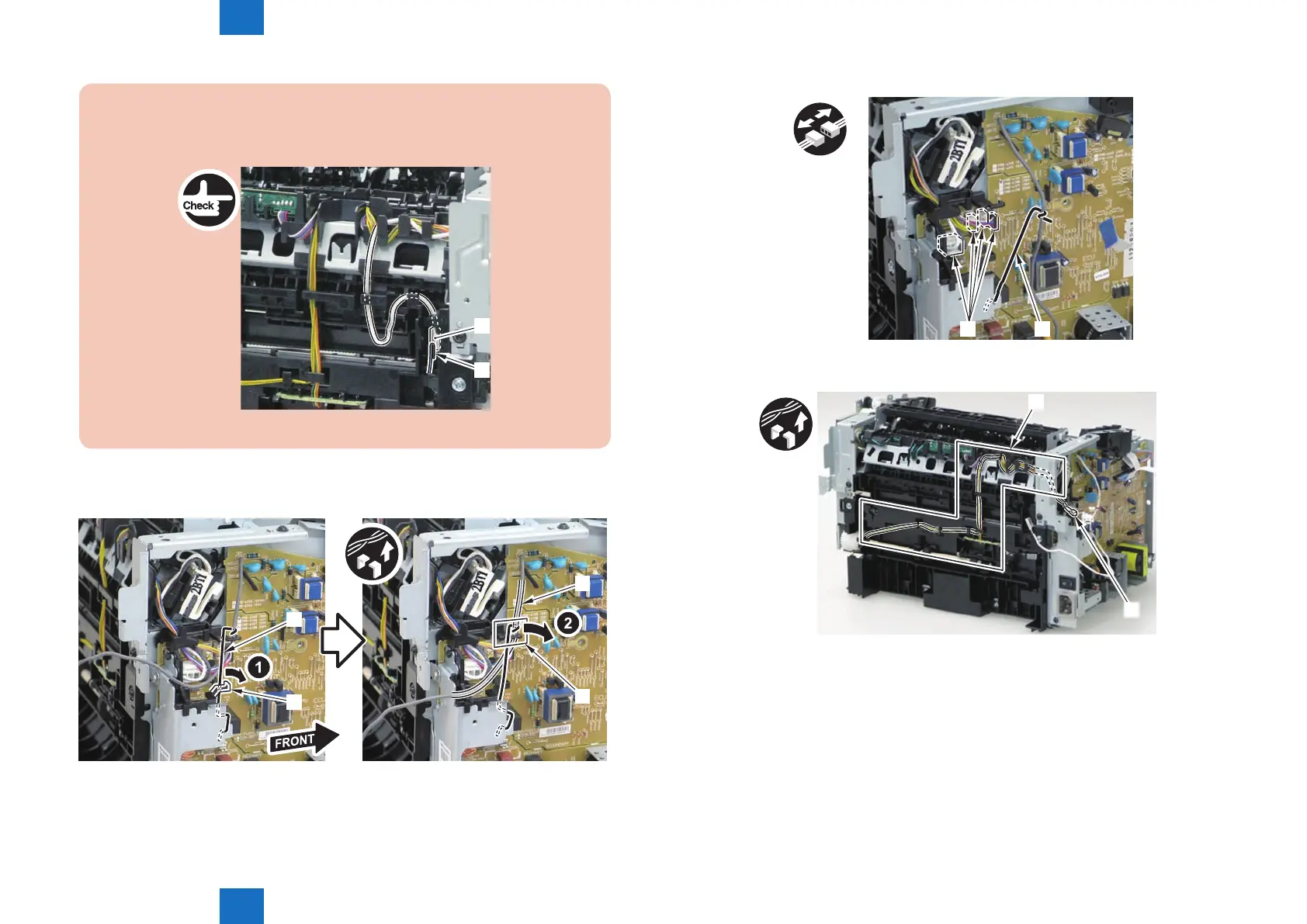

Caution:
When connecting the terminal[1], be sure that the contact spring[2] is in contact with
it.
[2]
[1]
F-4-913
3)Remove the harness retaining spring[1] from the hook[2], and free the harness[3] from the
guide[A].
[1]
[2]
[3]
[A]
F-4-914
4)Remove the harness retaining spring[1] and 4 connectors[2].
x4
[1][2]
5)Free the pickup solenoid harness[1] from the harness guide[A]
[1]
[A]
F-4-915
F-4-916
