Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Tray Unit (MF4820d) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Tray Unit (MF4820d) > Procedure

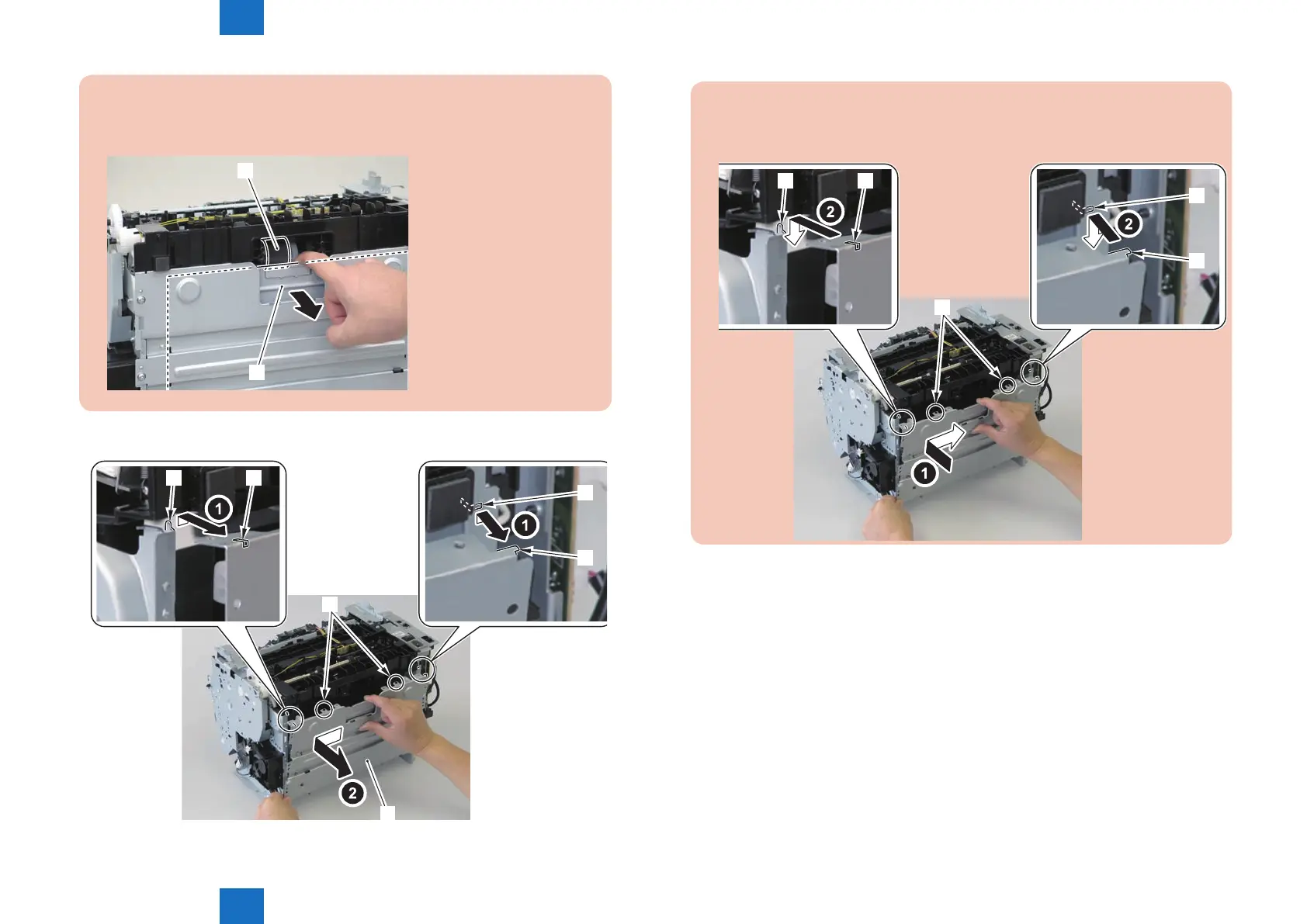

Caution:
When assembling/disassembling the pickup tray unit, hold the pickup tray [1] down
to attach/release it.
[1]
[2]
[4]
[1]
[2]
[3]
[2][3]
F-4-940
Caution:
Align the 2 boss holes [1], 2 hooks [2] and 2 bosses [3] of the pickup tray unit with the
pickup unit to mount the unit.
[1]
[1]
[2]
[2]
[3]
