Note
•
For details on supported sizes and types of rolls, see Paper Sizes or the Paper Reference Guide. (See "Paper
Sizes.") ➔P.328 (See "Displaying the Paper Reference Guide.") ➔ P.331
•
To view instructions as you attach the Roll Holder, press the Navigate button. (See "How to View Instructions with
Navigate.") ➔P.406
1

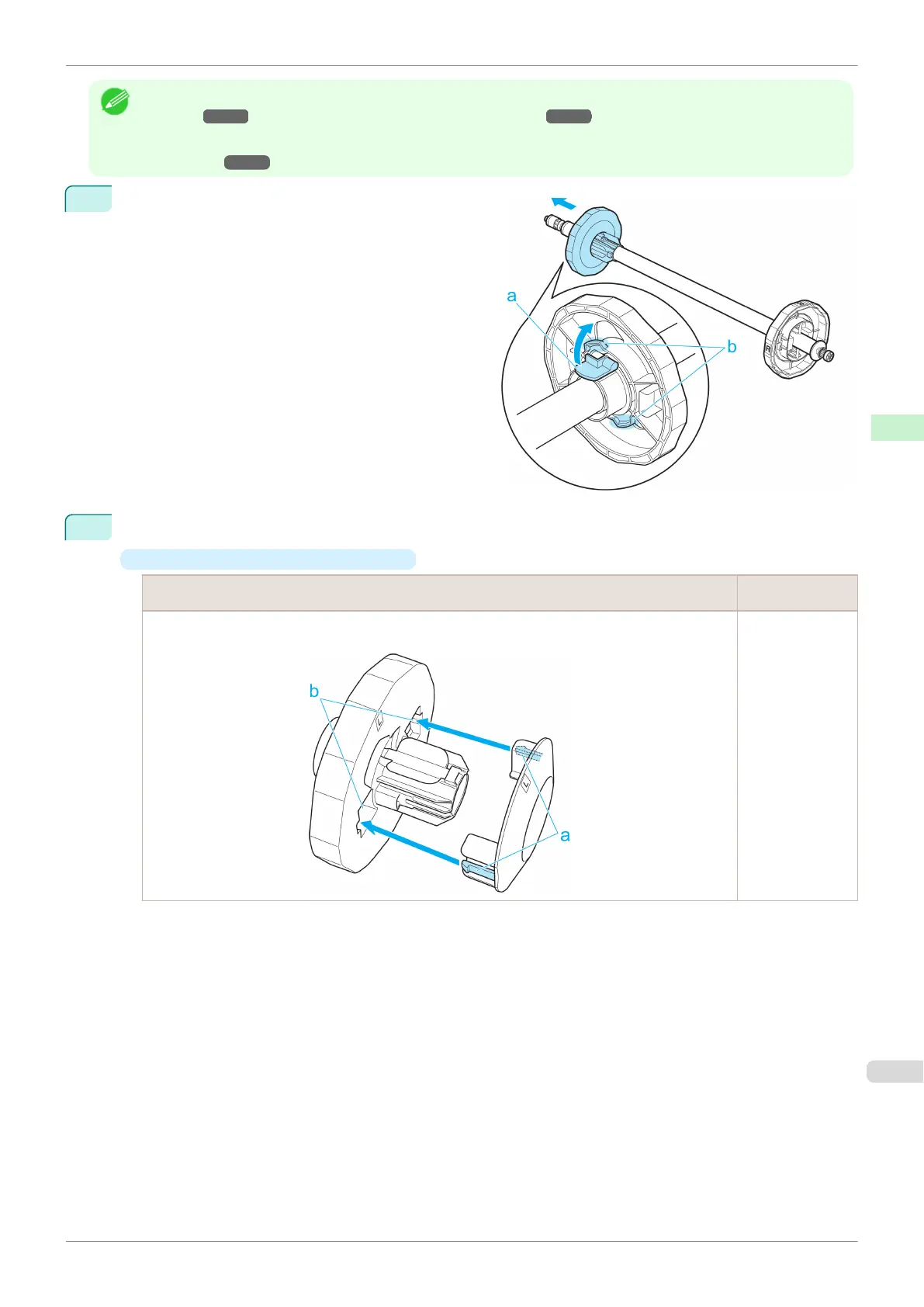

Lift the Holder Stopper lever (a) from the shaft side to
unlock it. Holding the Holder Stopper at the position
indicated (b), remove it from the Roll Holder.
2
Insert the respective attachments for the roll paper core on the Roll Holder and Holder Stopper.
•
Using rolls with a 2-inch paper core
Holder Stopper (Left Side)
Roll Holder (Right
Side)
Align the tips (a) of the 2-Inch Paper Core Attachment with the holes (b) of the Holder Stopper and
insert it firmly.
No attachment is
needed.
iPF685
Attaching the Roll Holder to Rolls
User's Guide
Handling and Use of Paper Handling rolls
339
