a
Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
b
Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c
Printhead Fixer Lever
Locks the Printhead Fixer Cover.
d
Printhead Fixer Cover
Holds the Printhead in place.

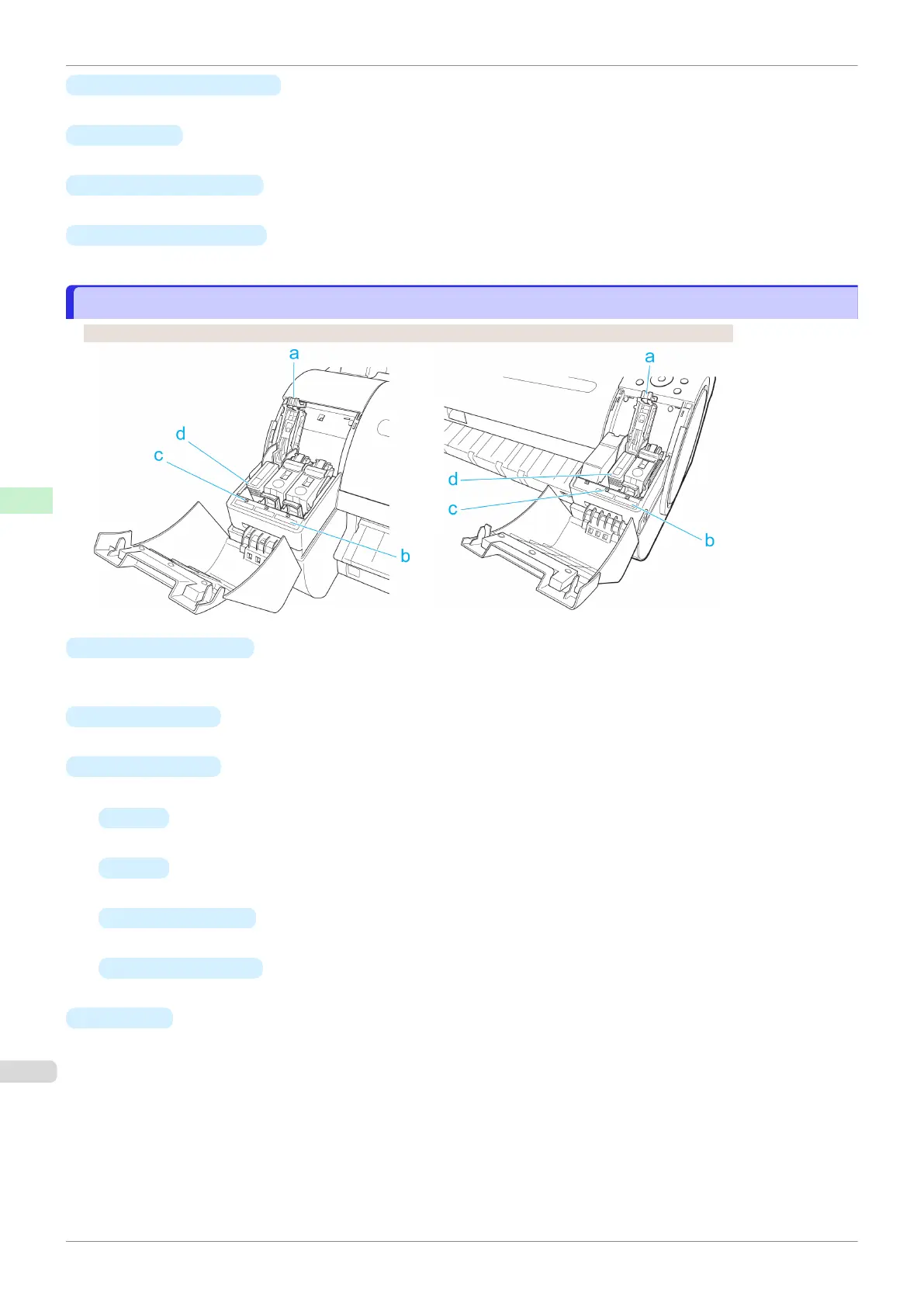

Ink Tank Cover (Inside)
Ink Tank Cover (Inside)
Left Side Right Side
a
Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink
Tank.
b
Ink Color Label
Load an Ink Tank that matches the color and name on this label.
c
Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
•
On
The Ink Tank is installed correctly.
•
Off
No Ink Tank is installed, or the ink level detection function has been released.
•
Flashing Slowly
Not much ink is left.
•
Flashing Rapidly
There is no ink left.
d
Ink Tank
Cartridges of ink in various colors.
Ink Tank Cover (Inside)
iPF685
User's Guide
Printer Parts Printer parts
440
