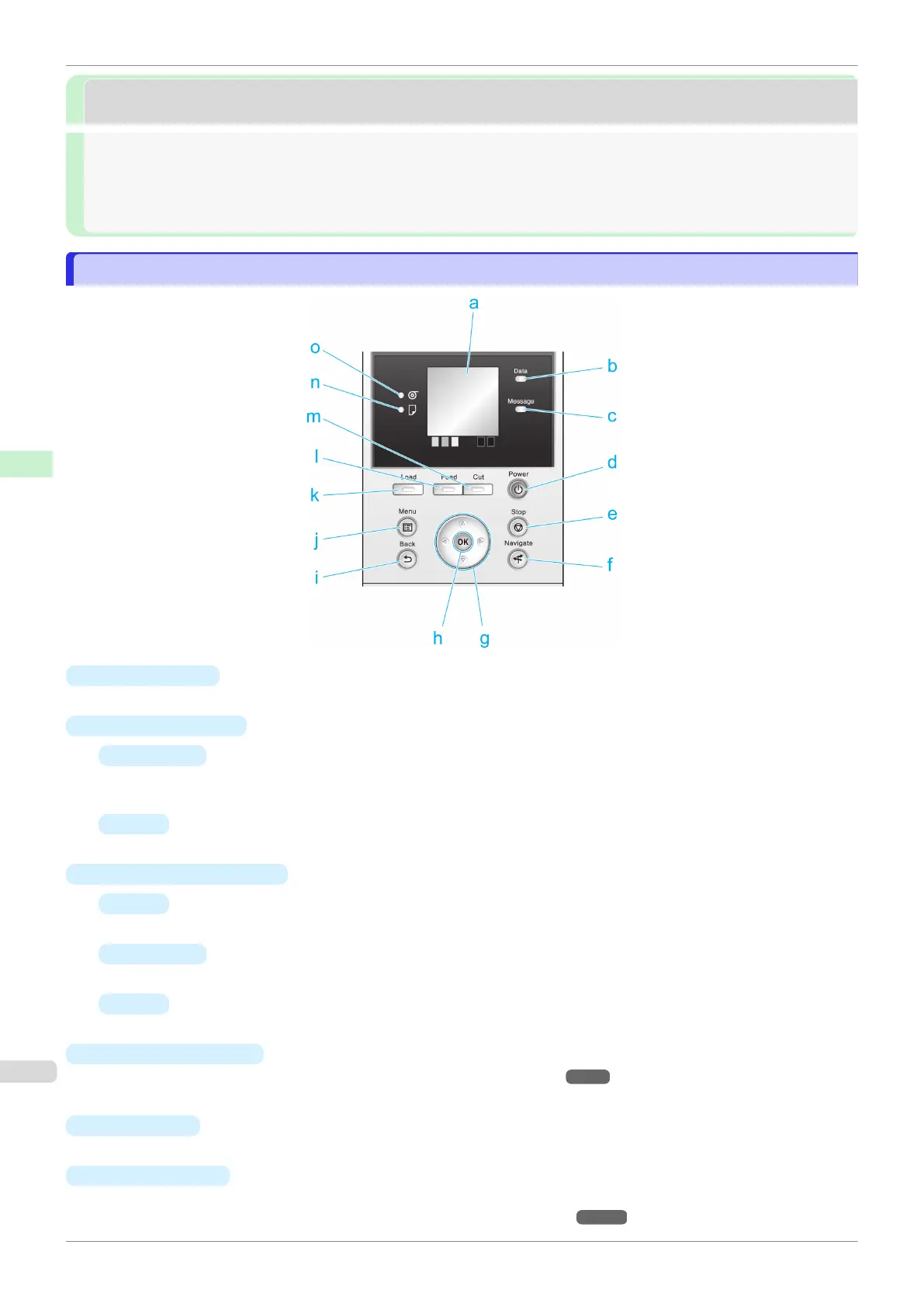

Control Panel
Control Panel
a
Display Screen
Shows printer menus, as well as the printer status and messages.
b
Data Lamp (green)
•
Flashing
During printing, the Data lamp flashes when the printer is receiving or processing print jobs. Otherwise,
this lamp flashes when the print job is paused or the printer is updating the firmware.
•
Off
There are no active print jobs when the Data lamp is off.
c
Message Lamp (orange)
•
On
A warning message is displayed.
•
Flashing
An error message is displayed.
•
Off
The printer is off or is operating normally.
d
Power
button (green)
Turns the printer on and off. (See "Turning the Printer On and Off.") ➔P.17
The Power button is lit when the printer is on or in Sleep mode.
e
Stop
button
Cancels print jobs in progress and ends the ink drying period.
f
Navigate
button
Enables you to check instructions for loading and removing paper or replacing ink tanks or printheads, as well
as other operations. (See "How to View Instructions with Navigate.") ➔P.406
Control Panel
iPF685
User's Guide
Control Panel Operations and Display Screen
400
