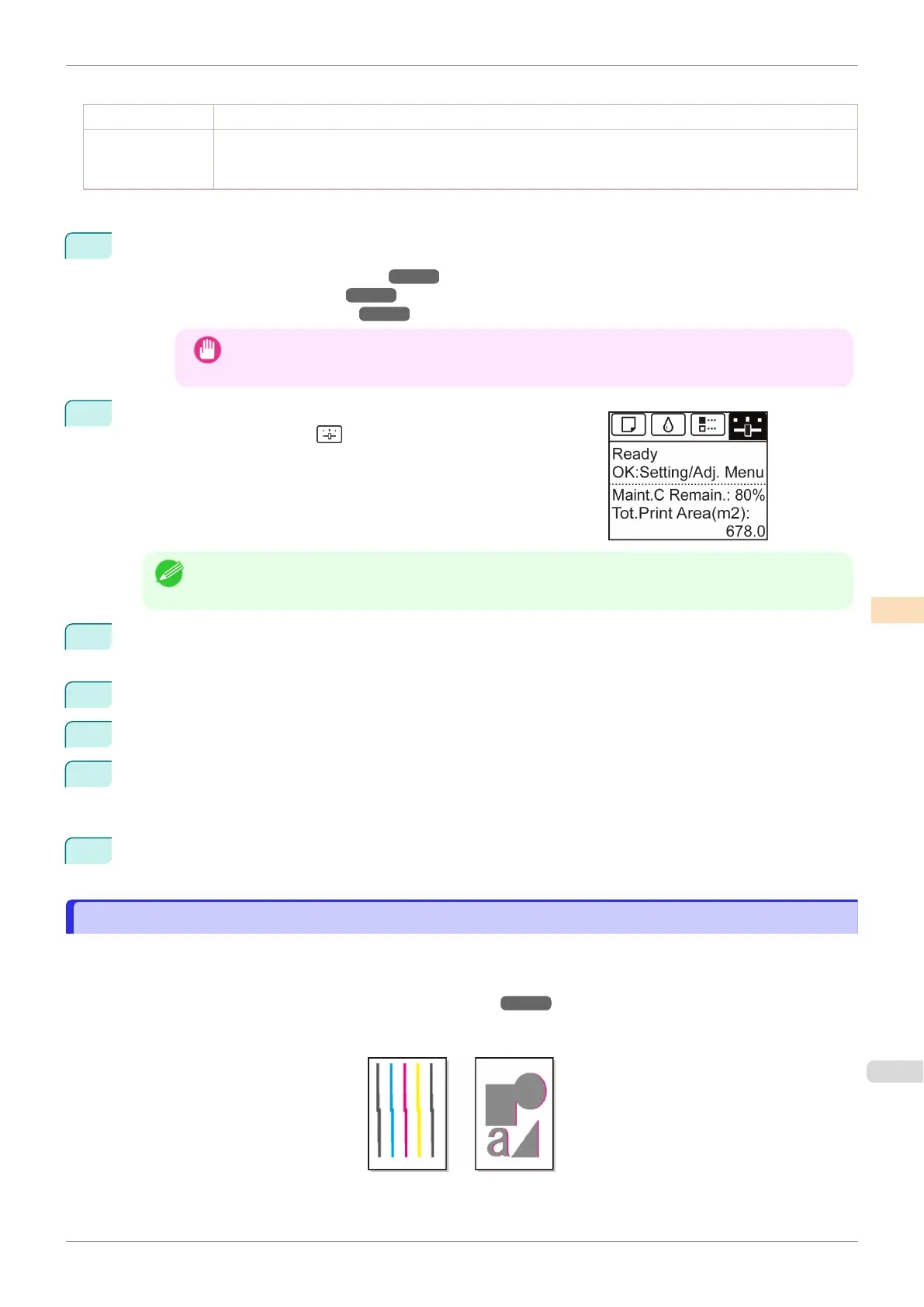

Paper to Prepare
When Using Rolls An unused roll at least 10 inches wide
When Using Sheets Auto(Standard) : One sheet of unused paper of at least A4/Letter size
Auto(Advanced): Six sheets of unused paper of at least A4/Letter size (or one sheet when using A2 or larg-
er)
Perform adjustment as follows.
1
Load the paper.
•
Attaching the Roll Holder to Rolls âž” P.338
•
Loading Rolls in the Printer âž” P.341
•
Loading Sheets in the Printer âž” P.359
Important
•
Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
2
On the Tab Selection screen of the Control Panel, press â—€ or â–¶ to
select the Settings/Adj. tab ( ).
Note
•
If the Tab Selection screen is not displayed, press the Menu button.
3
Press the
OK button.
The Set./Adj. Menu is displayed.
4
Press â–² or â–¼ to select Adjust Printer, and then press the OK button.
5
Press â–² or â–¼ to select Head Posi. Adj., and then press the OK button.
6
Press â–² or â–¼ to select Auto(Standard) or Auto(Advanced), and then press the OK button.
A test pattern is printed for adjustment.
Adjustment is now finished if you have printed on a roll or a sheet of A2 size or larger.
7
If you are printing on sheets smaller than A2 size for Auto(Advanced), a confirmation message is dis-
played requesting you to continue printing. Press the OK button and follow the instructions displayed.
Manual Adjustment to Straighten Lines and Colors
Manual Adjustment to Straighten Lines and Colors
If printed vertical lines are warped or colors are out of alignment, execute Head Posi. Adj. to adjust the Printhead
alignment.
Normally, execute Standard.
(See "Automatic Adjustment to Straighten Lines and Colors.")
➔P.522
However, when printing on special paper, or if printing is not improved after Standard, try Manual.
Manual adjustment requires you to examine the printed test pattern and enter an adjustment value.
iPF685
Manual Adjustment to Straighten Lines and Colors
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
523
