4

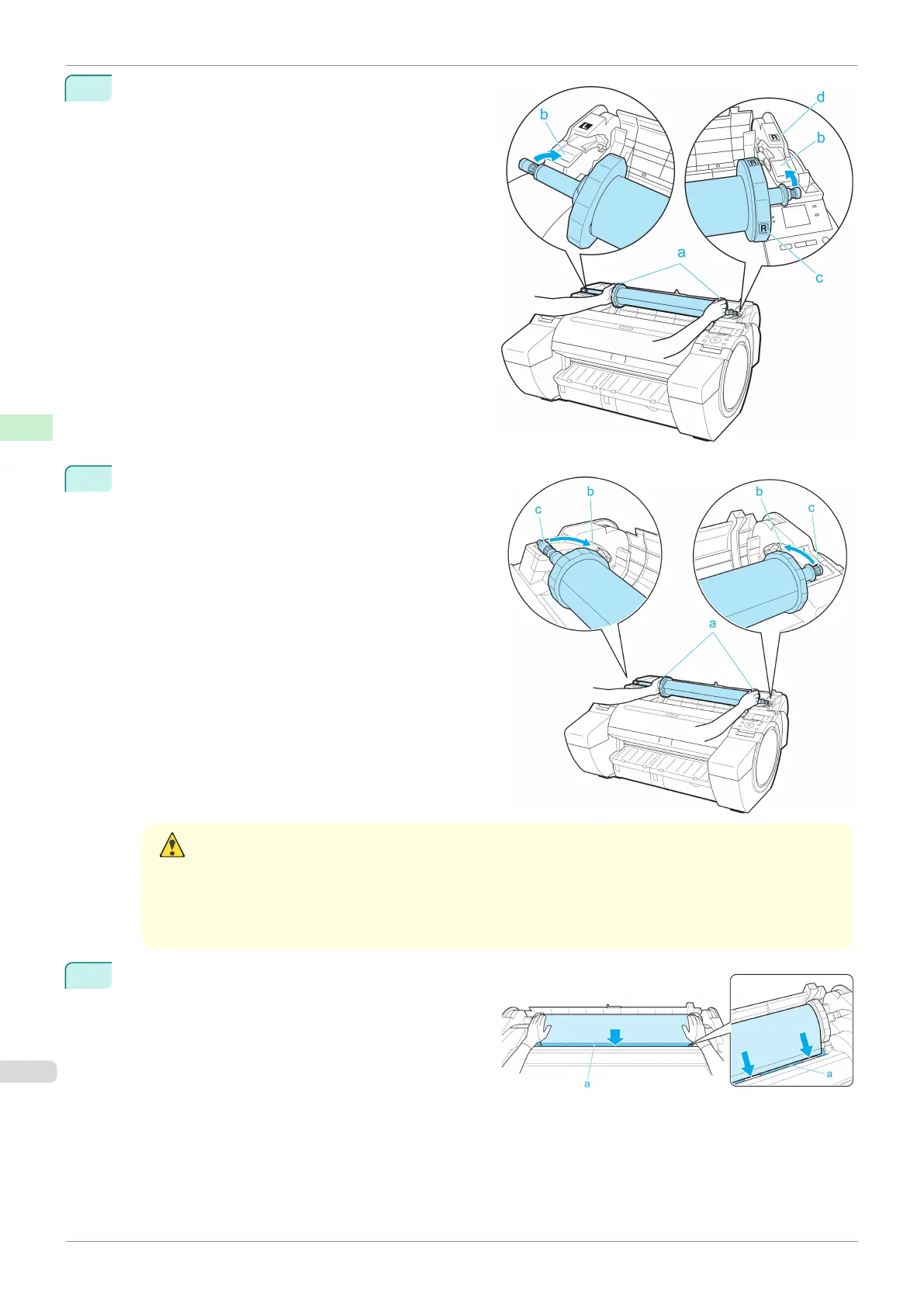

Holding the Roll Holder flange (a), rest the Roll Hold-
er shaft on the Roll Ledge (b).
At this time, position the holder so that the R label (c)
on the [W label (c) on the Roll Holder flange is
aligned with the R label (d) on the printer .
5
Holding the Roll Holder flange (a), guide the holder
along the Roll Loading Slots (b) on both ends, keep-
ing the holder level as you load it in the Roll Holder
Slot.
Caution
•
Do not force the Roll Holder into the printer with the right and left ends reversed. This may damage the
printer and Roll Holder.
•
Do not release the flanges until the holder is loaded in the Roll Holder Slot.
•
Be careful not to pinch your fingers between the Roll Loading Slots (b) and the Roll Holder shaft (c) when
loading rolls.
6
Insert the edge of the roll in the Paper Feed Slot (a)
and advance the roll until you hear the feed tone.
Loading Rolls in the Printer
iPF685
User's Guide
Handling and Use of Paper Handling rolls
