Canon iPF671 - Ink Tank Unit

Chapter 4
4-30
4.3.9 Ink Tank Unit
0023-3216
a) Ink Tank Unit
Removing the Right Ink Tank Unit
1) Perform ink drainage. Refer to "Disassembly/Reassembly > Points to Note on Disassembly and Reassembly > Draining the ink".
2) Remove the right cover, right ink tank cover, and front cover.
3) Remove four screws [1] and disconnect two connectors [2], and then remove the cable from the cable guide.
4) Remove the joint [3] between the ink tube unit and ink tank unit carefully, the ink tube from the guide, and then remove the right ink tank unit [4].

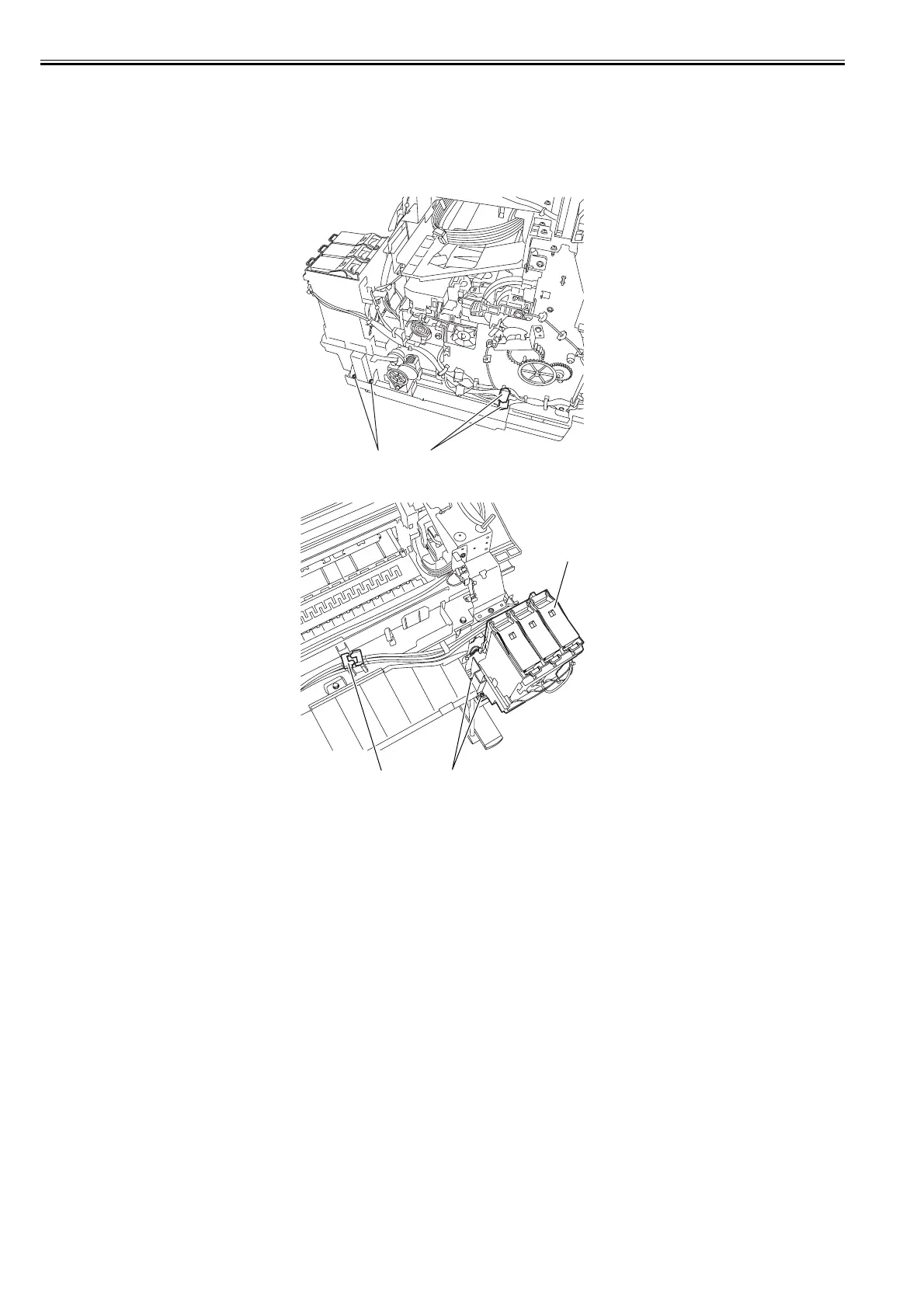

F-4-67
F-4-68
[1] [2]
[1][3]
[4]
