Canon iPF671 User Manual

Chapter 4
4-38

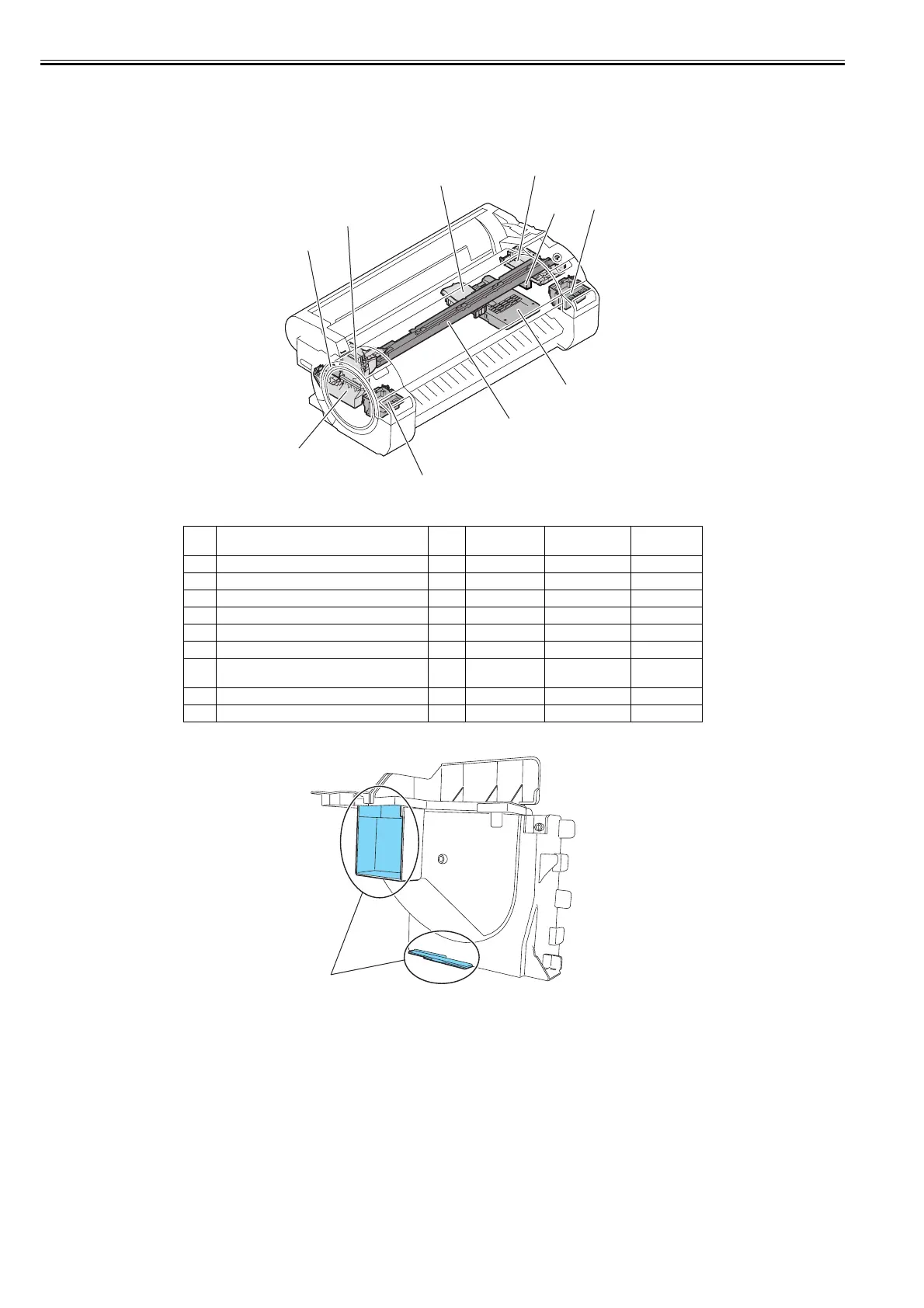

4.3.11 Waste Ink Collection Unit
0032-0594
When disassembling the waste ink collection unit, pay attention to the ink leaking from the disassembled parts. Put the parts of the disassembled waste ink collection
unit in a plastic bag or the like with care given to the ink leaking from the portion [A] enclosed in a circle.
The service parts packing box may include a plastic bag for packing replacement parts. Use it for putting consumable parts of the waste ink collection unit.
F-4-86
[1] Mist Fan
F-4-87
No Name Q'ty Part number Consumables
Service Mode
(PARTS xx)
[1] Mist Fan 1 QM4-2798 Yes Mi-1
[2] Mist Exhaust Duct 1 QM4-2797 Yes Mi-1
[3] Platen Suction Fan 1 QM4-2817
[4] Platen Exhaust Duct 1 QM4-2753 Yes WF-2
[5] Head Management Sensor 1 QM4-2767 Yes HMa-1
[6] Maintenance Cartridge 1 -
[7] Ink Tank Unit Waste Ink Tray 1 QM4-2873/
QM4-2876
[8] Purge Unit Waste Ink Tray 1 -
[9] Front Duct 1 -
[3]
[4]
[8]
[7]
[7]
[2]
[1]
[6]
[9]
[5]
[A]
