Canon iPF671 - Top Cover (Inside)

Chapter 1
1-15
1.5.3 Top Cover (Inside)
0023-5232

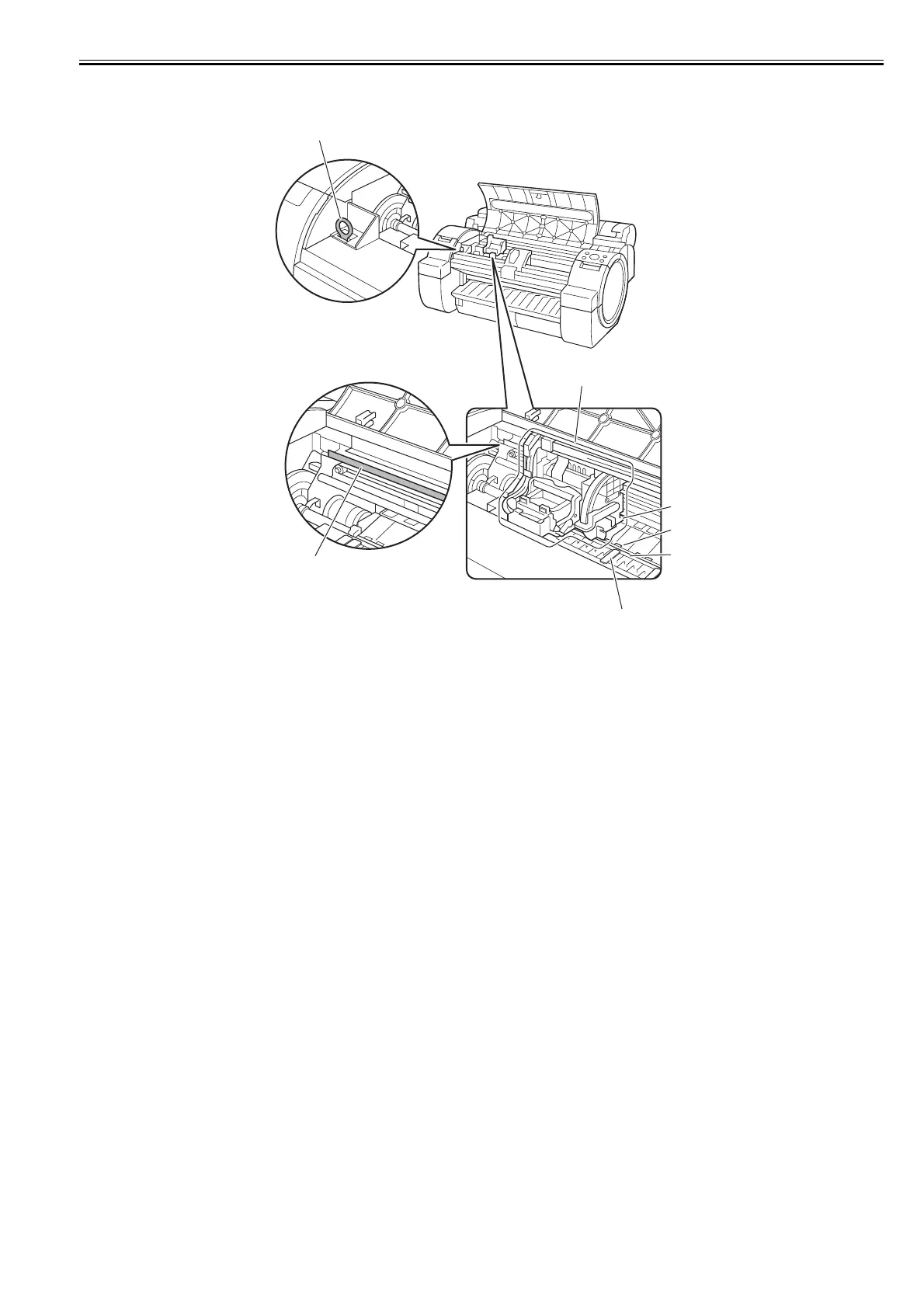

F-1-30
[1] Carriage
The carriage moves the printhead. It is an important component used for printing.
[2] Carriage shaft
The carriage moves on this shaft.
[3] Paper retainer
This is an important component used to feed paper. It retains paper.
[4] Platen
The printhead moves on this component to perform printing. Suction holes are provided on the platen surface to prevent media from floating.
[5] Borderless printing ink catch groove
Ink flowed out of the paper edges enter in this groove during borderless printing.
[6] Linear scale
This is an important component used to detect the carriage position. Never touch it when cleaning the parts or removing jammed media inside the
upper cover.
[7] Cleaner brush
Use this brush to remove paper dust off the platen when cleaning the parts inside the upper cover.
