Canon iPF671 - Purge Unit

Chapter 4
4-26
4.3.8 Purge Unit
0031-3155
a) Purge Unit
Removing the Purge Unit
1) Unlock the carriage unit, and then move the carriage onto the platen. Refer to "Disassembly/Reassembly > Points to Note on Disassembly and Reassembly >
Opening the Cap/Moving the Wiper Unit".
2) Remove the right cover.

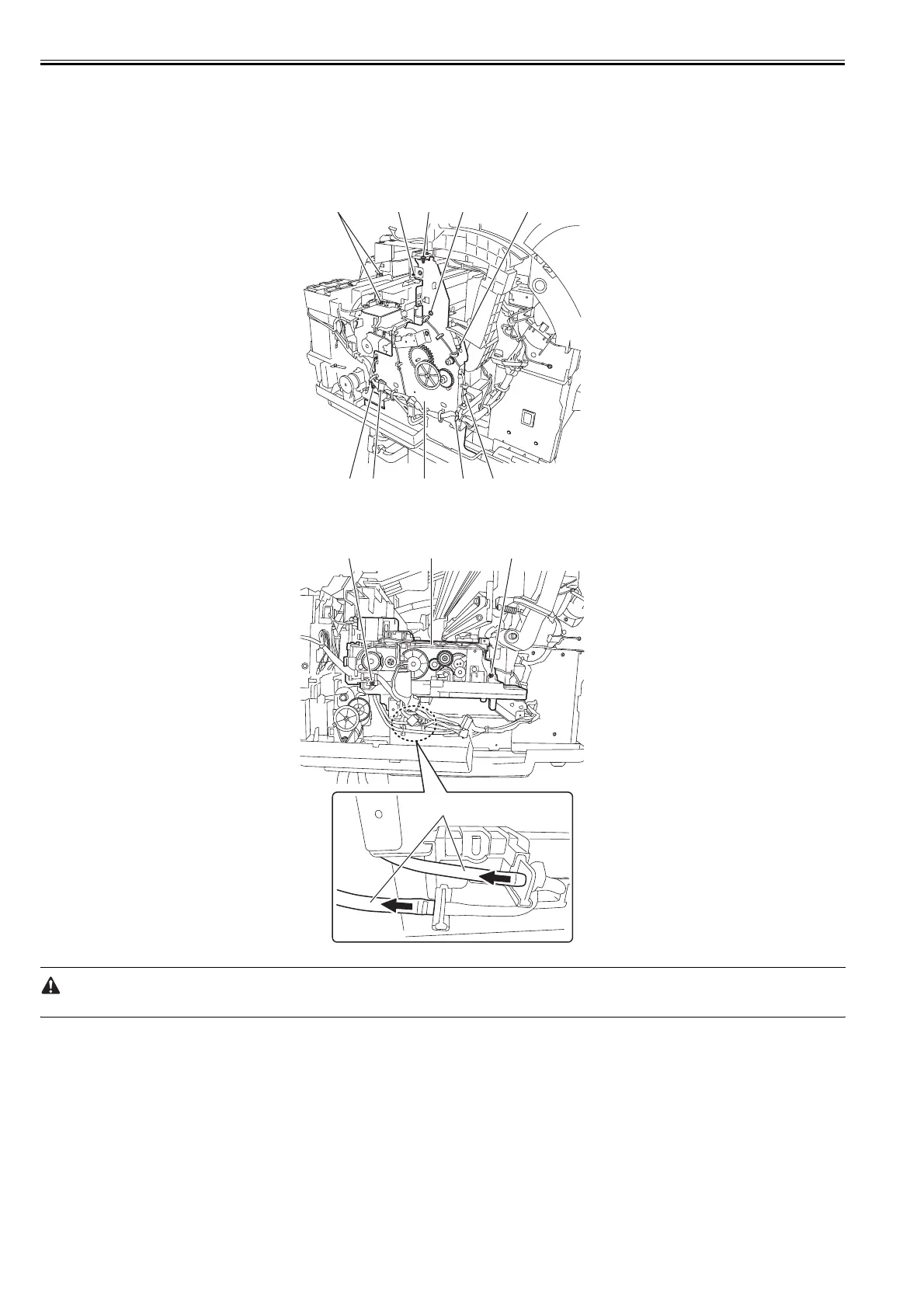

3) Remove five screws [1] and disconnect five connectors [2], and then remove the cable from the cable guide to remove the right side plate unit [3].
F-4-56
4) Remove two screws [1] and two waste ink tubes [2], the cable from the cable guide, and then remove the purge unit [3].
F-4-57
Remove the waste ink tubes carefully so that ink does not spout.
[2] [1] [1] [1] [2]
[1] [2] [3] [1] [2]
[1] [3] [1]
[2]
