Canon iPF671 - Page 171

Chapter 4
4-35

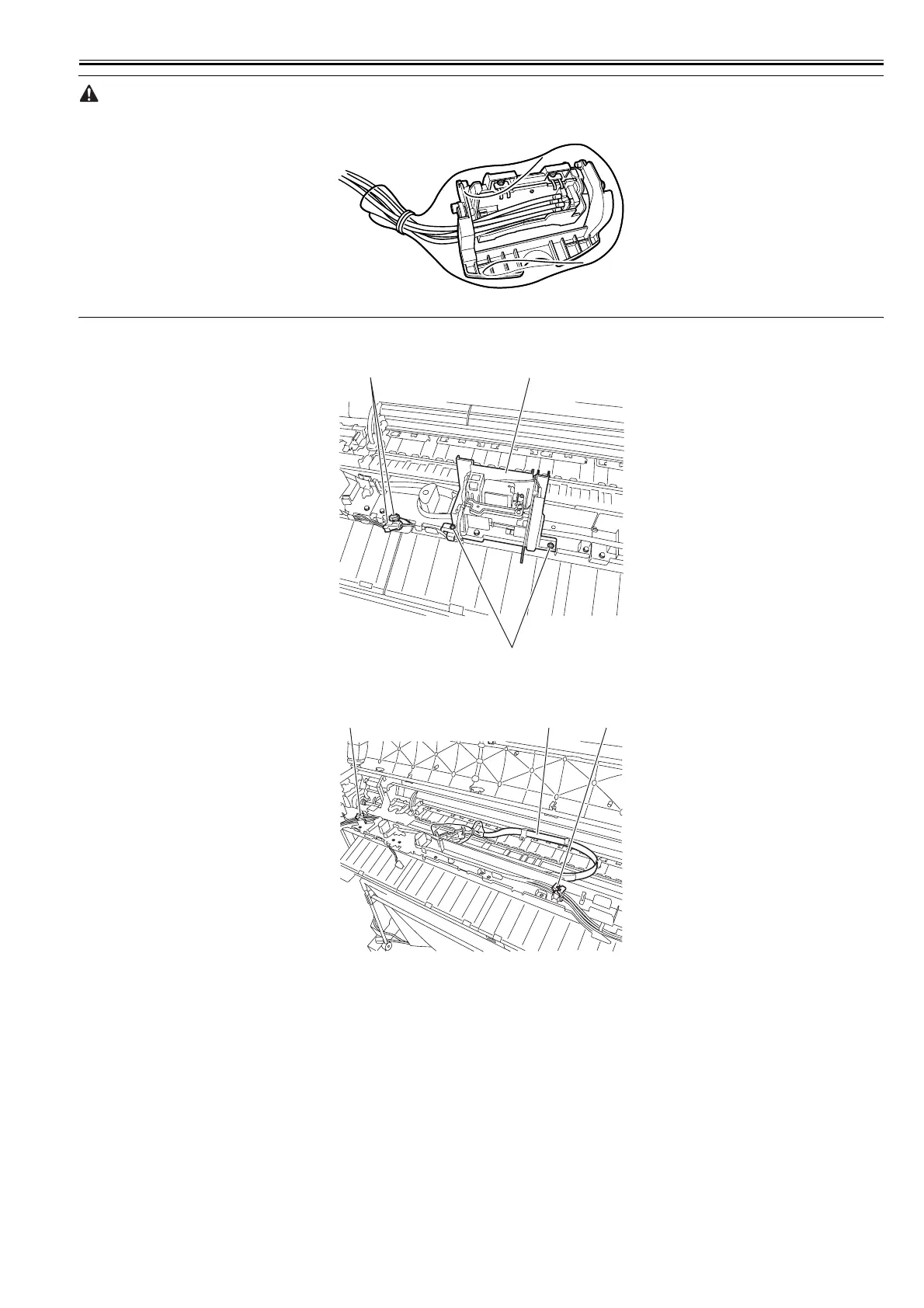

- Remove the joint carefully so that ink does not spout.
- Put a plastic bag or the like on the ink tube joint to prevent ink from spouting.
F-4-78
7) Remove two screws [1] and disconnect two connectors [2], and then remove the solenoid base [3].
F-4-79
8) Remove two joint [1] between the ink tube unit [2] and ink tank unit carefully, and then remove the ink tube unit [2] from the guide.
F-4-80
[1]
[2] [3]
[1] [1][2]
