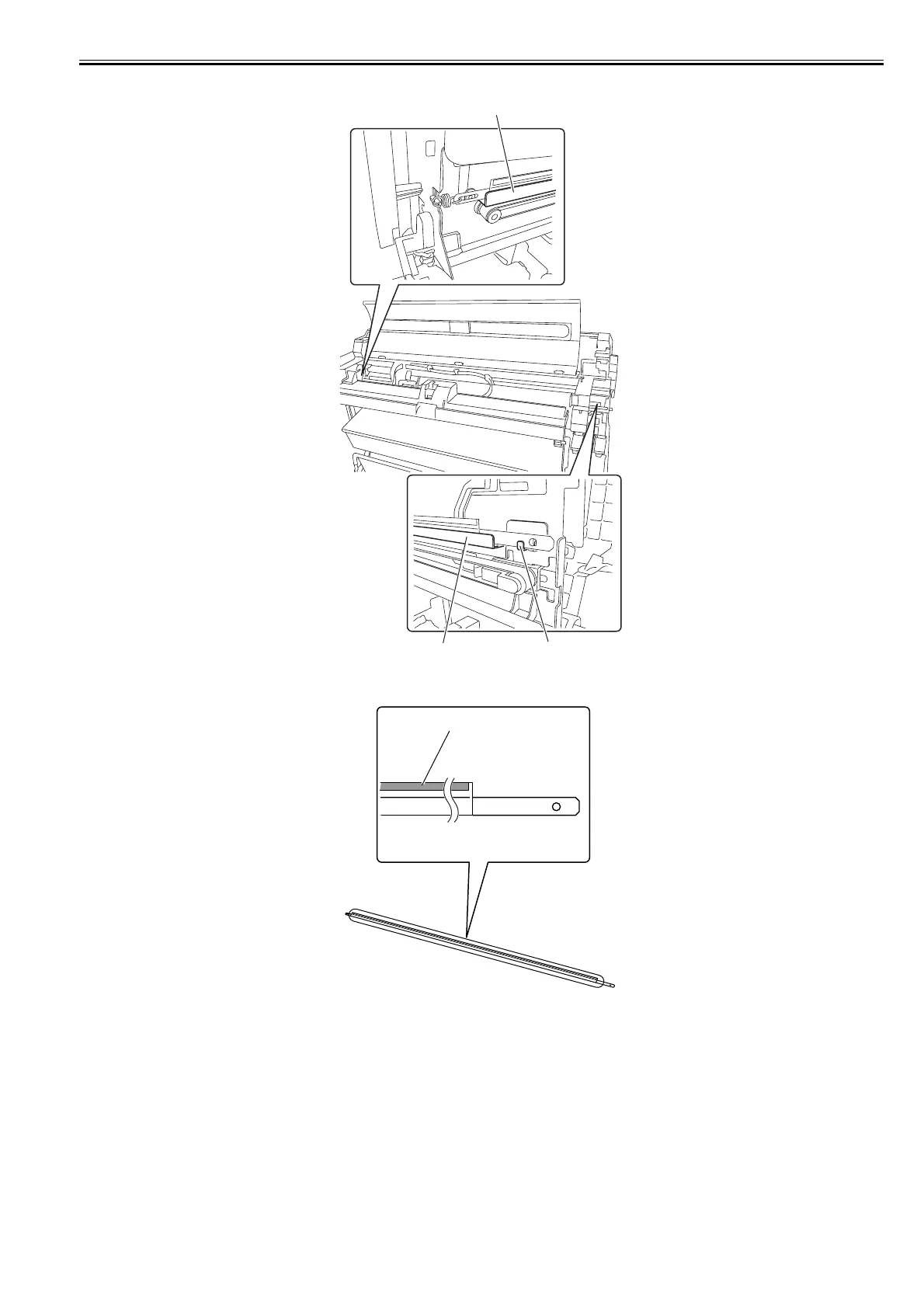

- Reinstall the linear scale in such a manner that it passes through the notch in the guide [1] and the notch [2] on the side plate.
F-4-108
- Never touch the detection part [1] of the linear scale.
F-4-109
[1]
[2]
[1]
R
L
R
[1]
