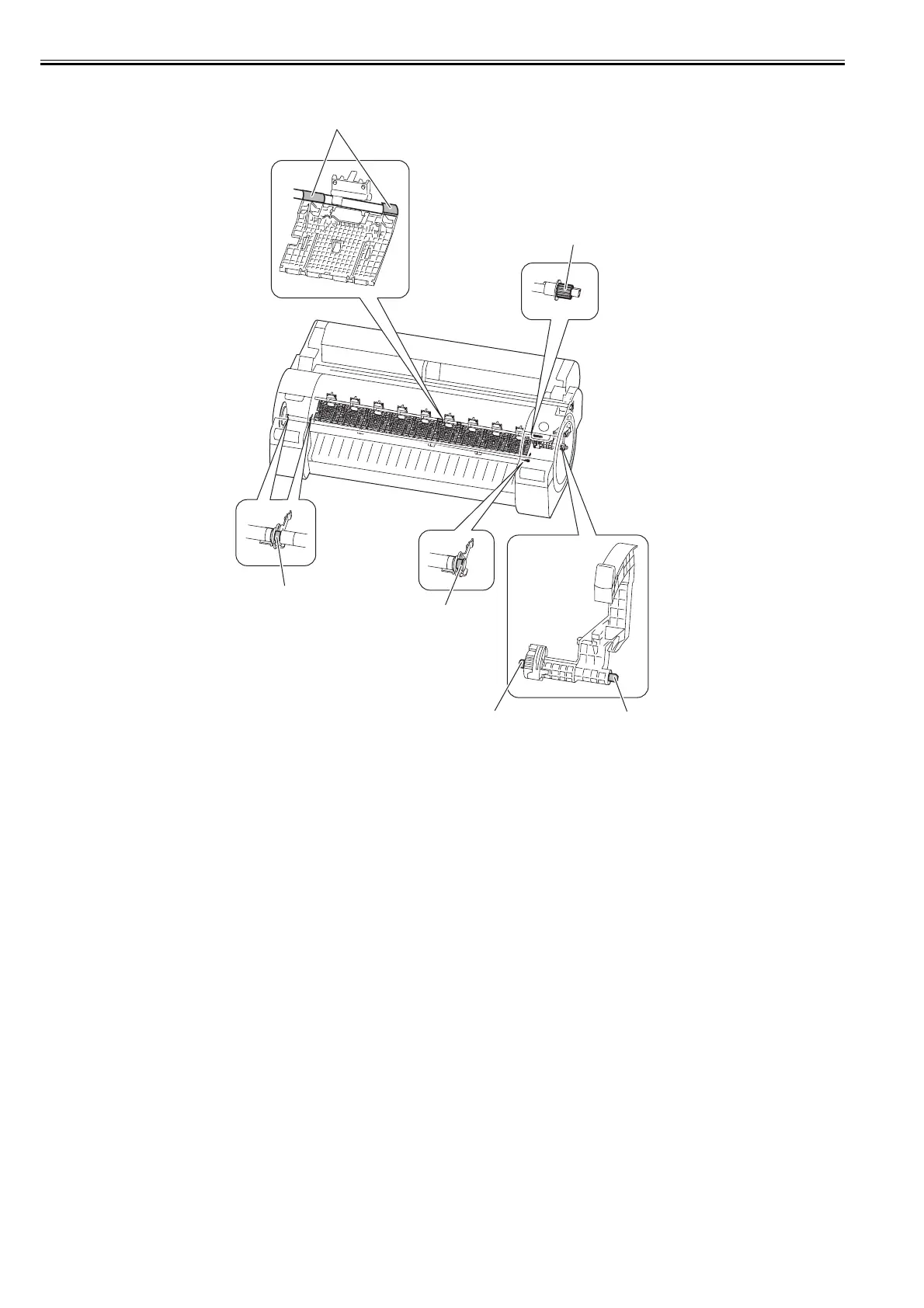

4. Contact between Pinch Roller Release Shaft and Pinch Roller [1] / Pinch Roller Pressure Release Gear [2] / Protrusion of Release lever [3] / Bushing of Feed
Roller [4]
F-4-120
[1]
[4]
[2]
[3]
[4]
[3]
