Chapter 2
2-24

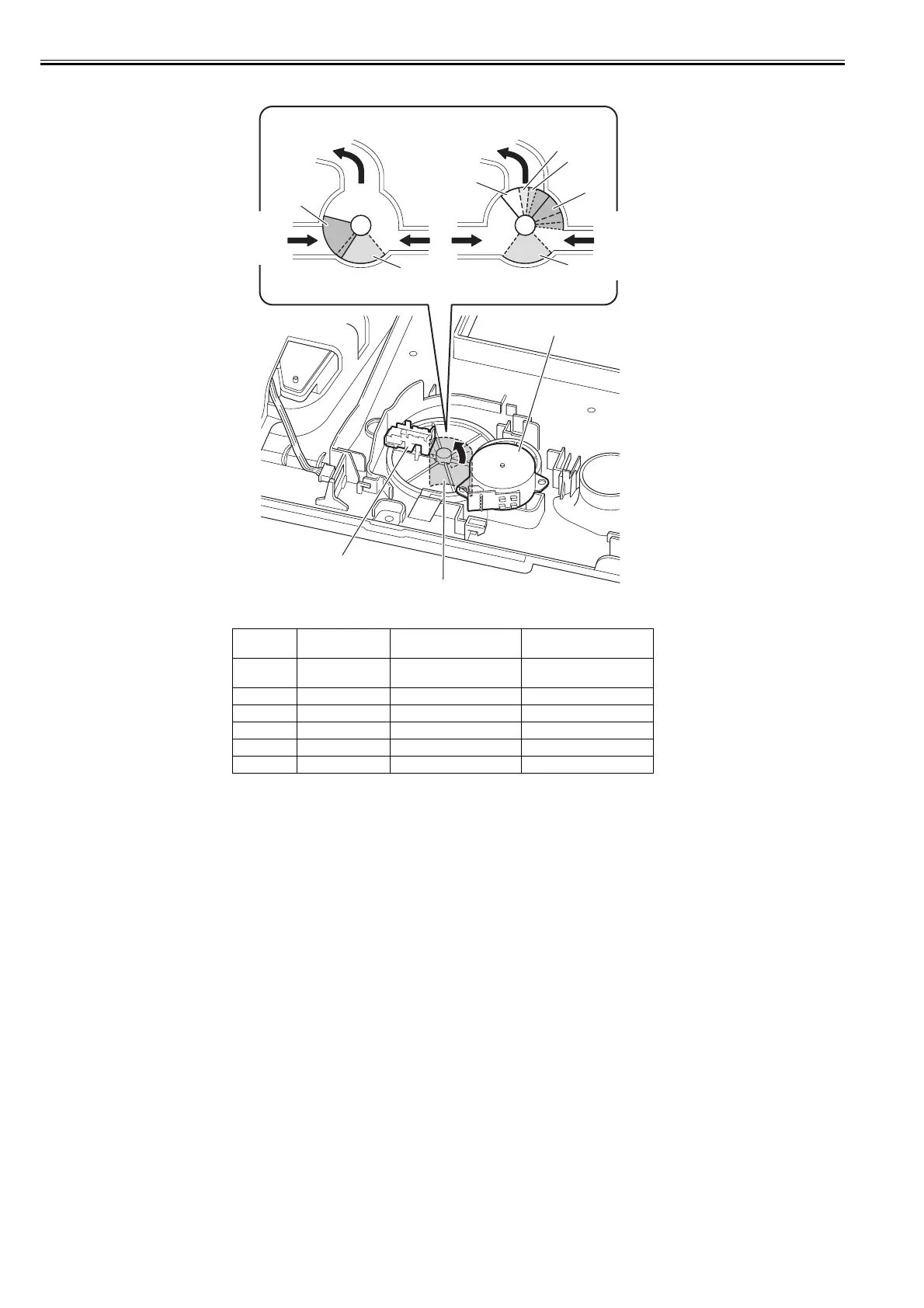

The shutter is controlled at the following six positions.
F-2-22
Shutter
position
Shutter opening During borderless printing During bordered printing
[1] Only HP side open Yes (17 inch or shorter
media)
[2] Fully open Yes (B2 or larger media) Yes
[3] Fully close Yes
[4] 1/4 open Yes
[5] 1/2 open Yes
[6] 3/4 open Yes
[1]
[3]
[4]
[5]
[6]
[2]
[2]
Shutter Motor
Shutter
Shutter HP Sensor
Borderless printing Bordered printing
To Platen Suction Fan
From borderless
printing ink
receiving grooves
of BP
From borderless
printing ink
receiving grooves
of HP
To Platen Suction Fan
