Appliance with Shelf
An Overlapping Female (OL-F) Nozzle (previously 3070-3/8H-10-SS) is used for Appliance Top Cooking equip-
ment protection. This type of cooking equipment is available with multiple burner assemblies. Some appliances are
equipped with shelving behind the appliance for additional storage. Figure 26 illustrates the shelf cannot overhang
the appliance more than 12” from the back of the cooking surface.
All dimensions fixed unless otherwise noted (e.g., min/max).
1. Pipe and fittings above the hood will be 1/2” copper pipe/Pro-Press, Grade L copper tubing/fittings.
2. Pipe and fittings inside the hood capture volume will be 3/8” NPT stainless steel or chrome-plated black iron.
No sleeving permitted.
3. Appliance coverage piping that is field piped - unions, elbows, and nozzles factory provided.
4. Nozzle heights above cooking surface (DIM A).
5. Appliance drop fittings may be sealed with pipe dope or Teflon tape.
6. Shelves or protrusions from appliances measuring 6” or less are not considered shelves, standard overlapping
coverage applies. Refer to “Appliance Coverage” on page 20.

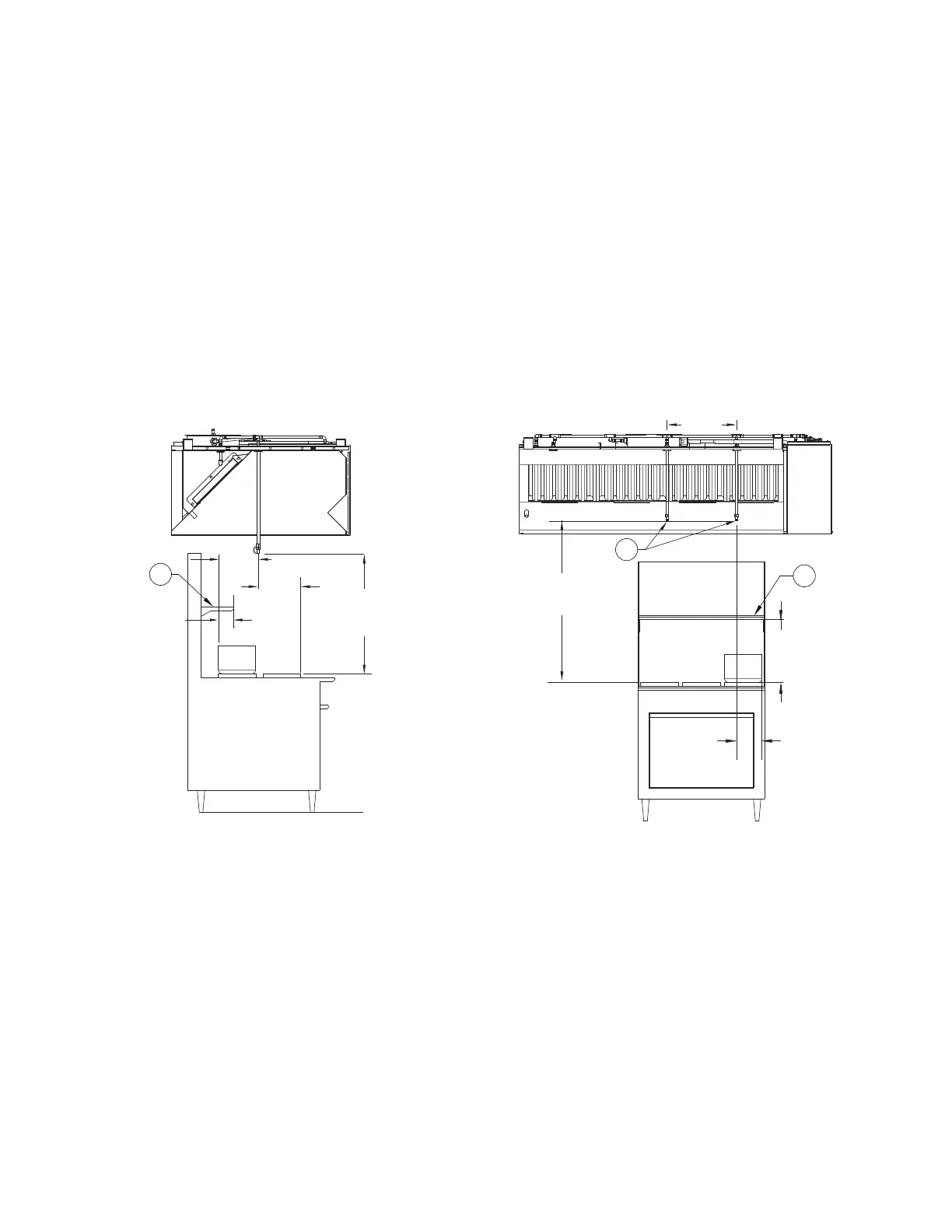

Figure 26 - Appliance Top with Shelf
12” MAX
18”
MIN
2
DIM A
15”
MAX
15”
MAX
Cooking Appliance
36” Max
12”
DIM A
1
2
35”-50” for Less than 12” Back Shelf
35” for 12” Back Shelf
DIM A:
1. Overlapping Nozzle (OL-F) 2. Shelf - 12” maximum distance from the rear edge
of the cooking hazard to the front edge of the
shelf.
