CaptiveAire TANK - PCU Fire System Nozzles

48
PCU Fire System Nozzles
The Overlapping Male Nozzle(s) (p/n OL-M) are used to protect the PCU.
The nozzles include a cap (p/n 3074-1-1).
Refer to Figure 45. The cap prevents contamination from entering the pipe network and is designed to pop-off
upon system discharge, allowing the fire system to flow to the protected hazard area.

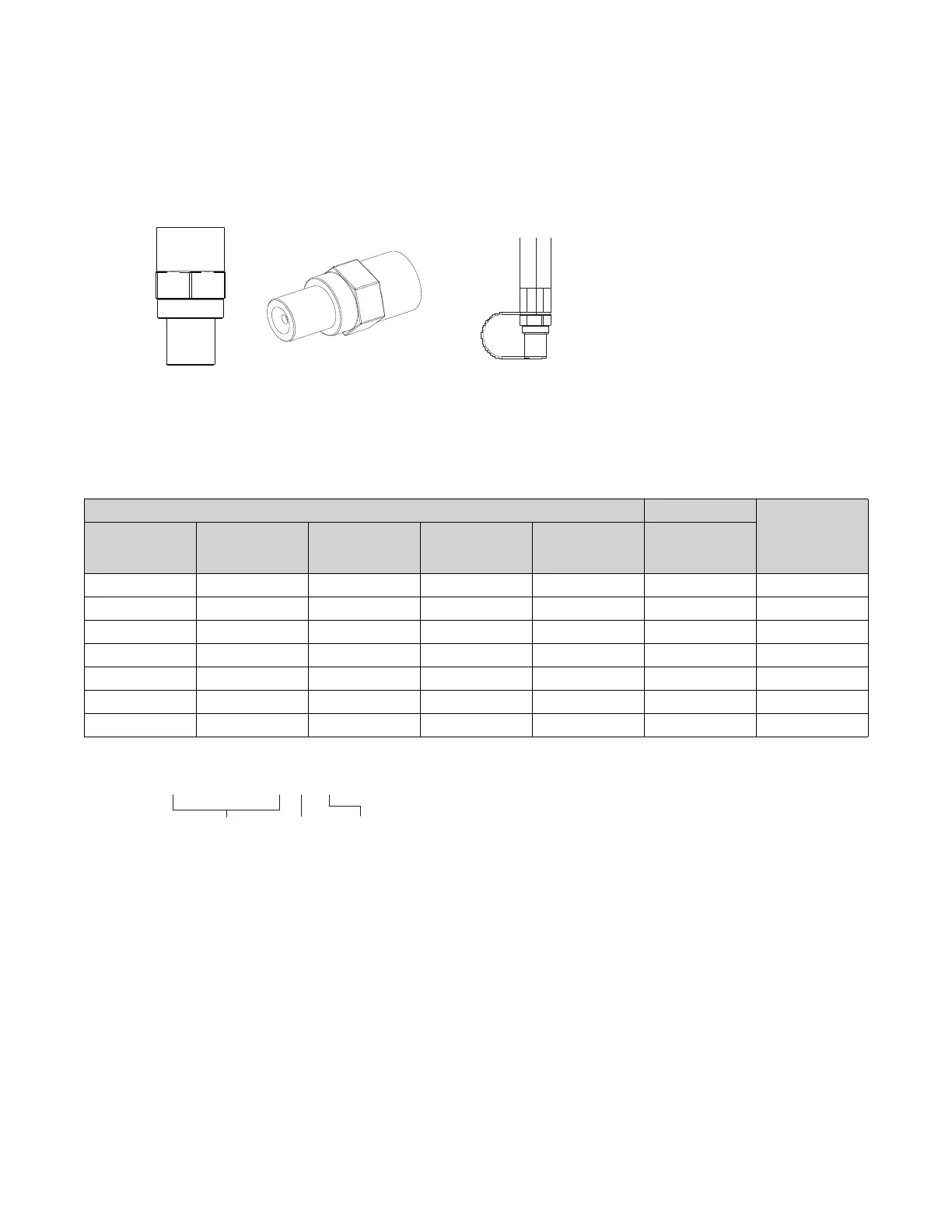

Figure 45 - Fire System Nozzle
Table 15 provides details on PCU size, modules, and nozzle quantity per unit. Pollution Control Units (PCU) cov-
ered by a TANK Fire System can utilize up to 12 nozzles per tank.
PCU Fire System type “REFS” is covered by TANK.
Example:
Table 15 - PCU Fire System Chart
Unit Nozzle Count (OL-M) Duct Nozzle
Count (OL-M)
Last Module
Only
PCU Size 1 Module 2 Modules 3 Modules 4 Modules 5 Modules
1 4 8 12 16 20 2
2 4 8 12 16 20 4
3 5 10 15 20 25 4
4 6 12 18 24 30 4
5 7 14 21 28 35 4
6 7 14 21 28 35 6
7 1122334455 6
Nozzle P/N: OL-M
Previously P/N: 3070-3/8HH-10-SS
Model - PCU-PF-HE-ESP-OC-XXXX-5
Modules Fire System PCU Size
Number of Modules - 4
PCU Size - 5
Number of OL-M Unit Nozzles - 28
Number of OL-M Duct Nozzles - 4
Total Nozzles - 32
