Install New Cylinder Tank(s)
• Remove the anti-recoil plate.
• Install the tank by fully inserting the tank into the adapter. Apply some silicone lubricant to the adapter
and o-ring to ensure a smooth installation.
• Install and tighten the 2 bolts to hold the tank onto the bracket. The square nut can be tightened with a
9/16” box end wrench; the bolt head can be tightened with a 1/2” box end wrench.
• Tighten the middle tank strap to help support the weight of the tank and to assist in lining up the bolts.
• Tighten the other two tank straps.
• Repeat for all other tank cylinder(s) in the system.
• Complete the Start-up/Test Procedure. Refer to “START-UP/INSPECTION TEST PROCEDURE” on
page 59.

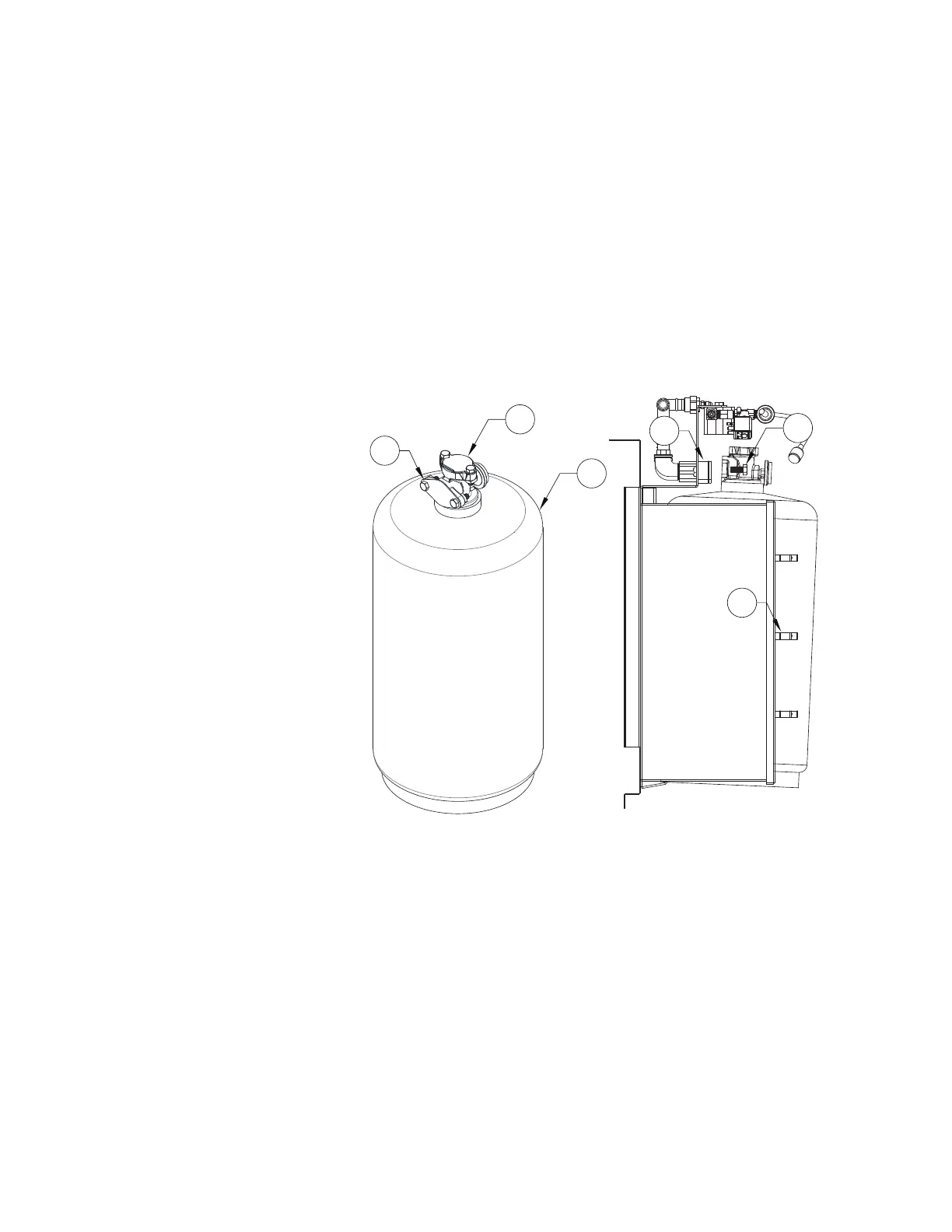

Figure 64 - Installing Tank Cylinder(s)
1. Anti-Recoil Plate
2. Valve Protection Plate
3. Cylinder Assembly
4. Discharge Adapter
5. Cylinder Mounting Bolts
6. Tank Straps
