• Close the Nitrogen Cylinder.
• Remove the pressure gauge on the PAK.

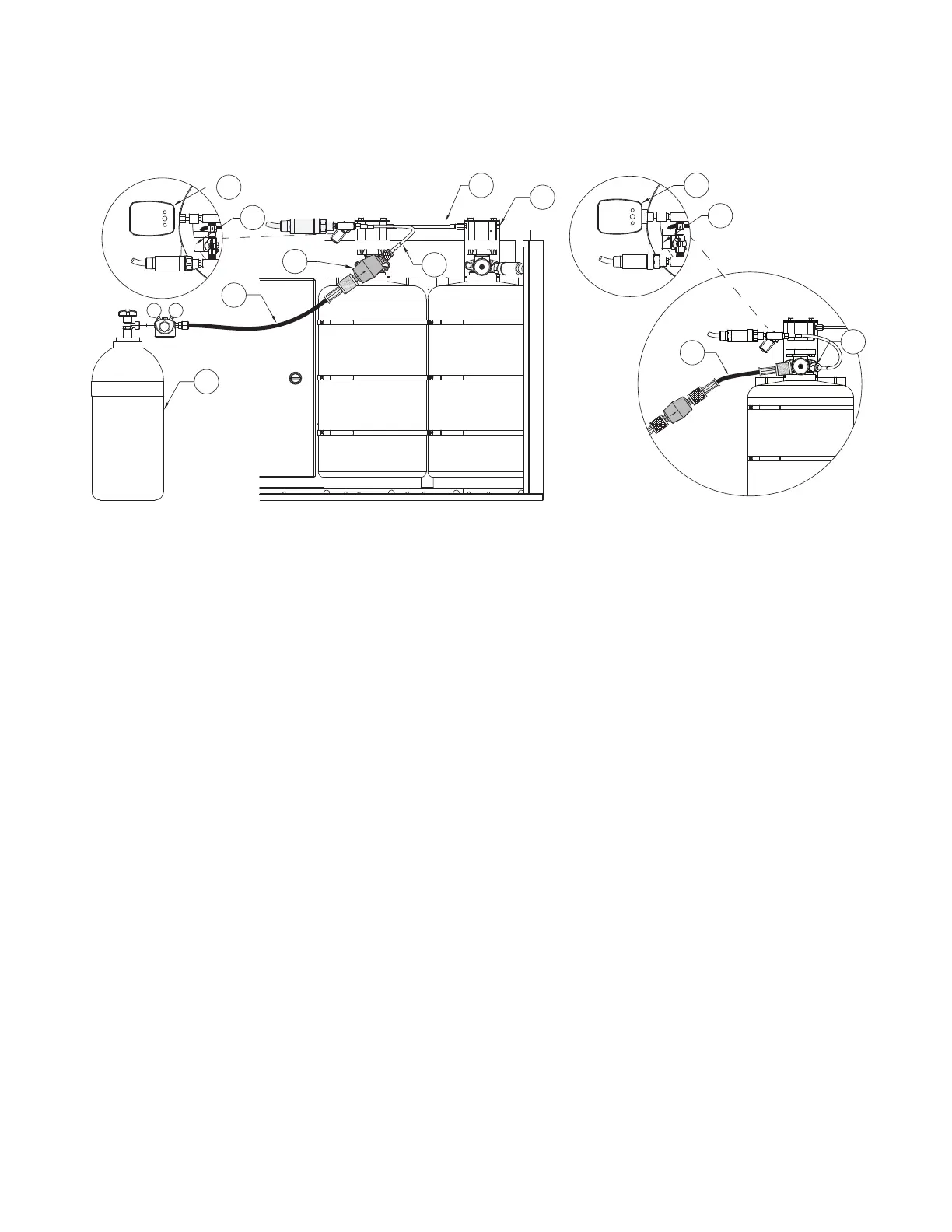

Figure 53 - Service Test Tank Details
NOTE: Pressure gauge minimum requirements; 1/4” female flare, 0-250 psi, resolution 0.5 psi, accuracy 
+/- 1% FS. The inline filter minimum requirements; 1/4” male flare, 40 micron, 250 psi.
1. Nitrogen Service Cylinder with regulator attached
2. 1/4” Refrigerant Test Hose (Long)
Additional hoses/lengths required for servicing.
3. 1/4” Male to Male Inline Filter
4. PAK Hose Connection
5. Secondary Actuator Hose
6. Vent Limiting Orifice
7. Digital Pressure Gauge
8. Primary Actuator Solenoid
Single Schrader Port Nitrogen Connection
4
2
6
3
1
5
0.00 PSI
7
8
Dual Schrader Port Nitrogen Connection
0.00 PSI
7
8
4
2
